Authentication Profiles

The Authentication Profiles are used by CSP Service to authenticate the users registered in Microsoft & Azure Active Directories. These profiles contain credentials for Microsoft and Azure Active Directories. Authentication profiles are assigned to clients through Client Manager where the required profile is selected from the list of available authentication profiles.

Clicking on the Authentication Profiles button under Global Settings shows the following screen:

This shows the list of Authentication Profiles currently defined. A new Authentication Profile can be created by pressing the New button. Each item in the above table is described below:

Items	Description
Authentication Profile ID	A unique ID automatically assigned to each Authentication Profile.
Authentication Profile Name	A user friendly name assigned to each authentication profile for internal identification.
Authentication Profile Type	This defines the type of authentication profile which is to be selected amongst Microsoft Active Directory, Azure Active Directory and ADSS against our respective authentication profile id.
Status	This specifies the status of the authentication profile. Only active profiles can be used within other ADSS Services.
\|<,<,>,>\|	Used to navigate between different pages on the Authentication Profiles page.
Search	As also mentioned below click on this button to search for the specific authentication profiles based on the desired search criteria.
Clear Search	Click on this button to clear the search results and display all the authentication profiles.

Clicking on the New/Edit button will allow us to create a new authentication profile.

Azure Active Directory

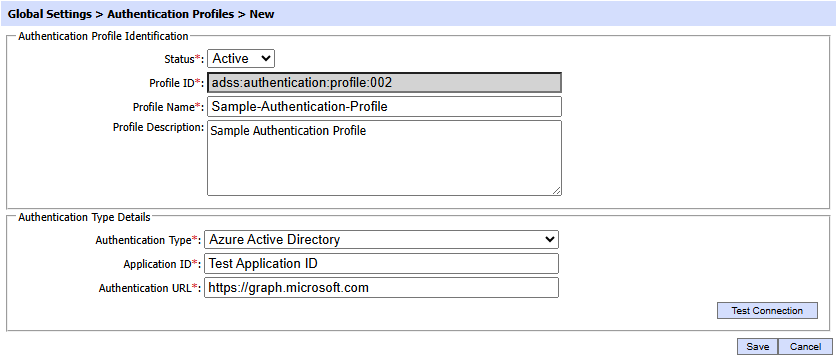

In case of Azure Active Directory profile type, following screen will be displayed:

The configuration items are as follows:

Items	Description
Status	This specifies the status of the Authentication Profile. Only active profiles can be used within ADSS Service modules.
Profile ID	A unique ID automatically assigned to each Authentication Profile.
Profile Name	User can set a name for the Authentication Profile.
Profile Description	Optionally provide a brief description about this Authentication Profile. This information is for administrator's internal use.
Authentication Type	This field enable us to select the type of authentication we want to proceed with amongst Azure Active Directory, Microsoft Active Directory or ADSS.
App ID	It's a client ID generated on the Azure Active Directory which is used to authenticate the user and get it's information.
Authentication URL	It's the URL where client application can communicate with Azure Active Directory.
Test Connection	It's a button to test connection with Azure Active Directory.

Microsoft Active Directory

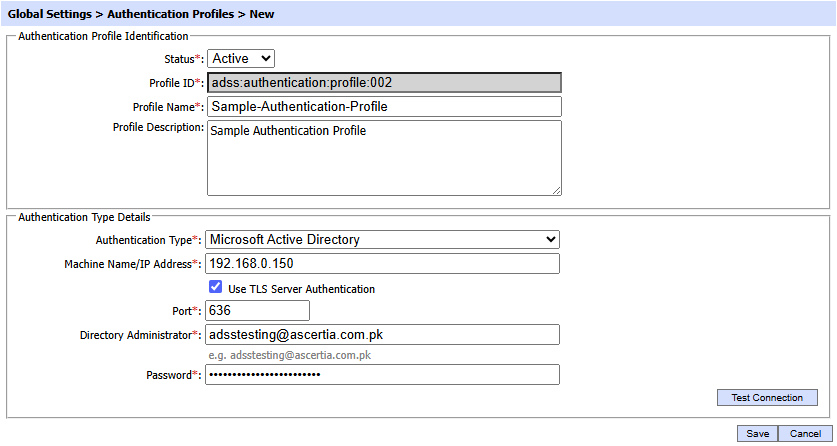

In case of Microsoft Active Directory profile type, following screen will be displayed:

The configuration items are as follows:

Items	Description
Status	This specifies the status of the Authentication Profile. Only active profiles can be used within ADSS Service modules.
Profile ID	A unique ID automatically assigned to each Authentication Profile.
Profile Name	User can set a name for the Authentication Profile.
Profile Description	Optionally provide a brief description about this Authentication Profile. This information is for administrator's internal use.
Authentication Type	This field enable us to select the type of authentication we want to proceed with amongst Azure Active Directory, Microsoft Active Directory or ADSS OAuth v2.
Machine Name/ IP Address	In case of Microsoft Active Directory, we are working in a local environment. This field enable us to enter the IP Address of the machine on which Microsoft Active Directory is deployed.
Port	This specifies the port number of the machine we want to access.
Directory Administrator	This field enables the administrator of the machine to enter it's user id so that he/she can access the machine through admin rights.
Password	This field enables the administrator of the machine to enter it's password.
Test Connection	It's a button to test connection with Microsoft Active Directory.

Client Manager

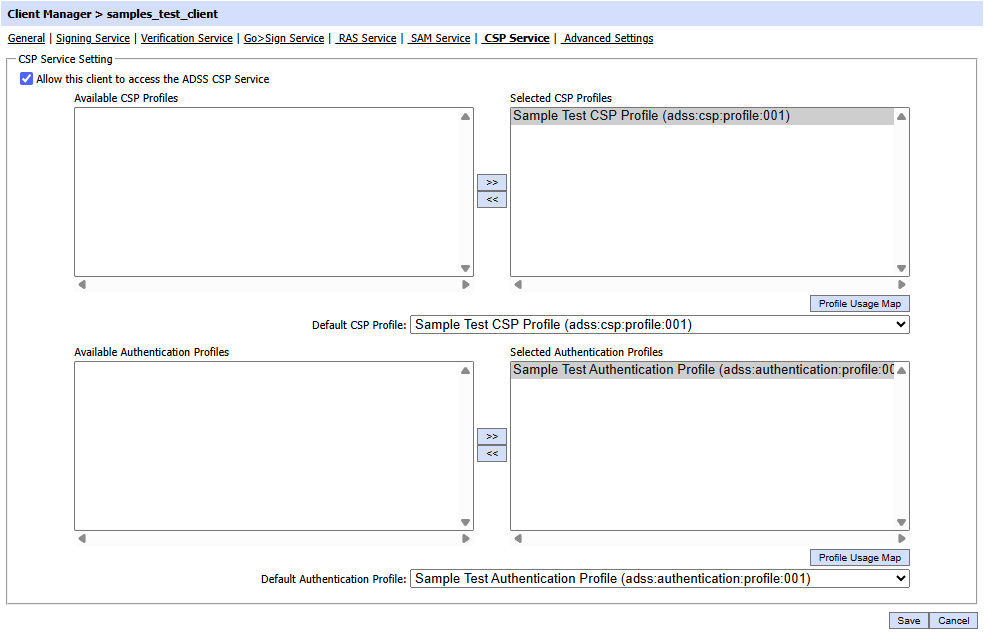

The created authentication profiles are assigned to clients through client manager. The required profile is selected from the list of created authentication profiles. To select the required profile click on the CSP Service inside Client Manager, it will lead us to the following screen:

On clicking the 'Profile Usage Map' button, the information of Client ID, Client Name and Status for the selected Authentication Profile will be displayed.

Clicking on the Search button on the Authentication Profiles page shows the following screen:

Provide a search criteria containing the authorisations profile Status, Authentication Type, Profile ID and Profile Name fields. If more than one attribute is provided, they are combined using an AND operand and the relevant results are shown.
