This section explains how to create TLS / Server based certificate requests in the Web RA application.



Certificate Transparency (CT) Log Configuration



In the above screenshot, a Certificate Transparency (CT) log server is configured.



When Web RA submits a TLS server certificate request to the ADSS Server, ADSS first checks whether the “Delegate the Precertificate Logging Process to Other Entities” option is enabled for the issuing CA under the Certificate Transparency Settings.



If precertificate logging delegation is enabled, ADSS generates a precertificate and returns the following information to Web RA:


  • Configured CT log server details
  • The precertificate along with its certificate chain


At this stage, ADSS pauses the certificate issuance workflow and waits for the Signed Certificate Timestamps (SCTs).



Web RA then submits the received precertificate chain to the configured CT log server(s) in accordance with the Certificate Transparency process defined for publicly trusted TLS certificates.



The CT log server validates and logs the precertificate, and returns the SCT response. After receiving the SCTs from the CT log server(s), Web RA forwards the SCT information back to ADSS. ADSS then embeds the SCTs into the final TLS certificate and completes the certificate issuance process.


Following are a few things to remember with respect to SDNs, SANs and RDNs:


  • When a user creates a new certificate request, the SDNs and SANs will be rendered as configured in the certification profile and its values will be auto-filled from the certificate details.


  • A user will not be able to change the values of the RDNs if an operator has configured them in the certificate details.


  • An operator will see the rendered values in a disabled form.


  • If there is an RDN that is added in certification profile but has not been configured in the user's certificate details, it will be shown as editable in the request form and the user can update its value.


  • If no RDN is configured in the user certificate details then the request will be generated.


  • In case of an error, the user will not be allowed to move to the next step.


Second Factor Authentication


If second-factor authentication is enabled for certificate requests, the configured authentication mechanism operates accordingly. When the user clicks Generate, an authentication window appears. After the selected method is successfully verified, the certificate is generated.


The authentication mechanism can be one of the following:


  • SMS OTP Authentication
  • Email OTP Authentication
  • Email & SMS Authentication
  • SAML Authentication
  • Active Directory Authentication
  • Azure Active Directory Authentication
  • OIDC Authentication


Request Notes


If an operator has added a customized Request Note to certificate requests for a specific enterprise, it will appear in all types of certificates requests -- issued, rekey, revoked, renewed and reissued. The Request Notes appear only on the screens against which the operator has customised them.


An operator can configure Request Notes from the Enterprise Request Notes section in the Admin portal.


The following steps describe how to create a certificate request for the “TLS Server Auth / SDNs / DV SSL” certificate type.


In the web portal, expand the ‘Certificate Center’ tab from the left menu pane and click on the ‘Certificate Requests’ option.

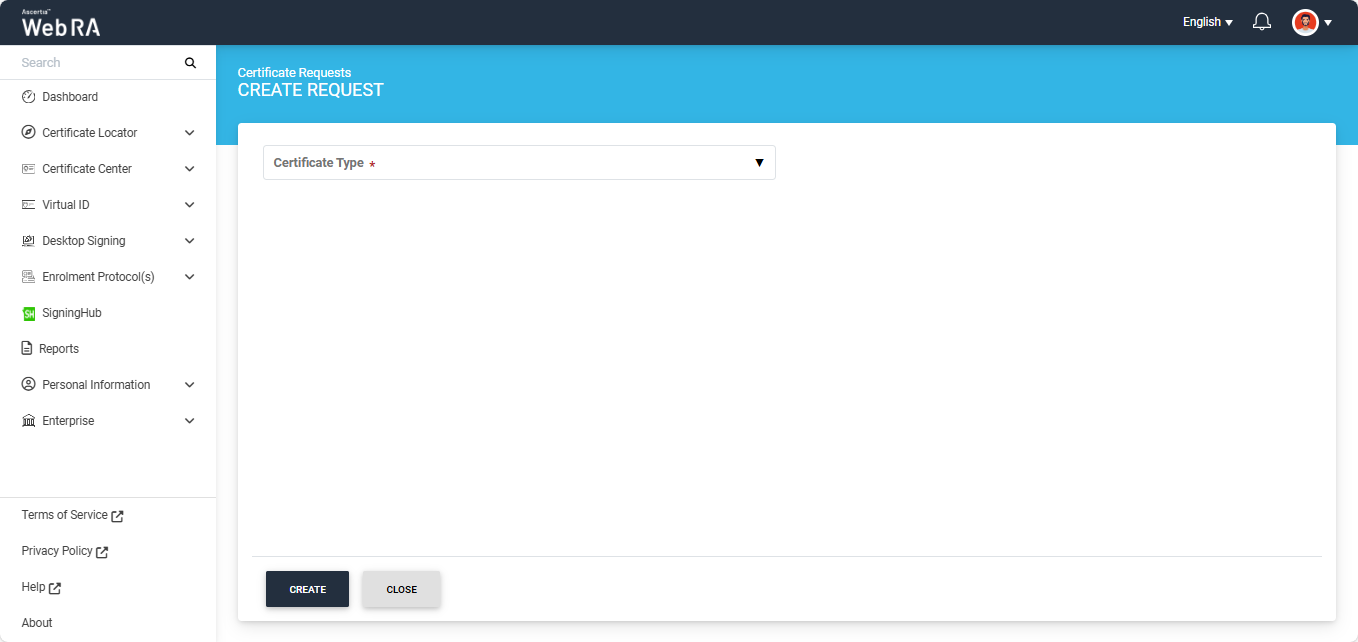

Click on the ‘+’ plus button in the listing header to create a new certificate request. The system will display the ‘Create Request’ screen.



On this screen, select the ‘Certificate Type’ from the given dropdown.

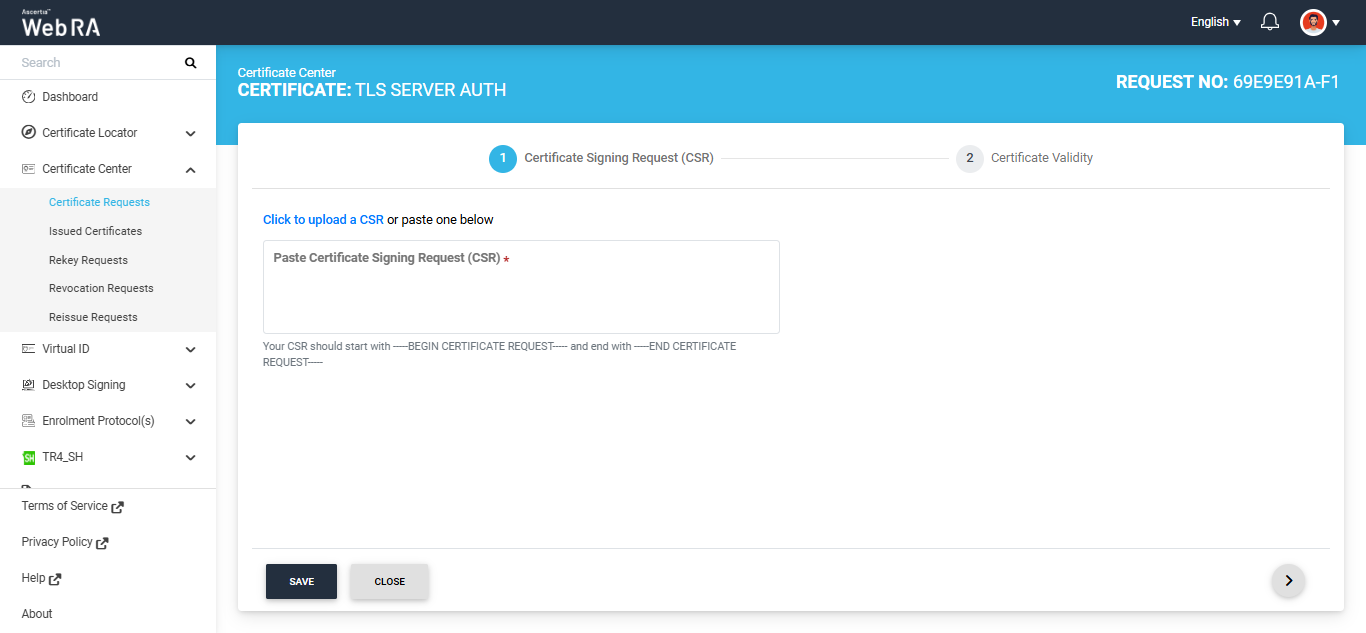

After selecting the profile, click the 'Create' button. The system will display the 'Certificate Signing Request (CSR)' screen.

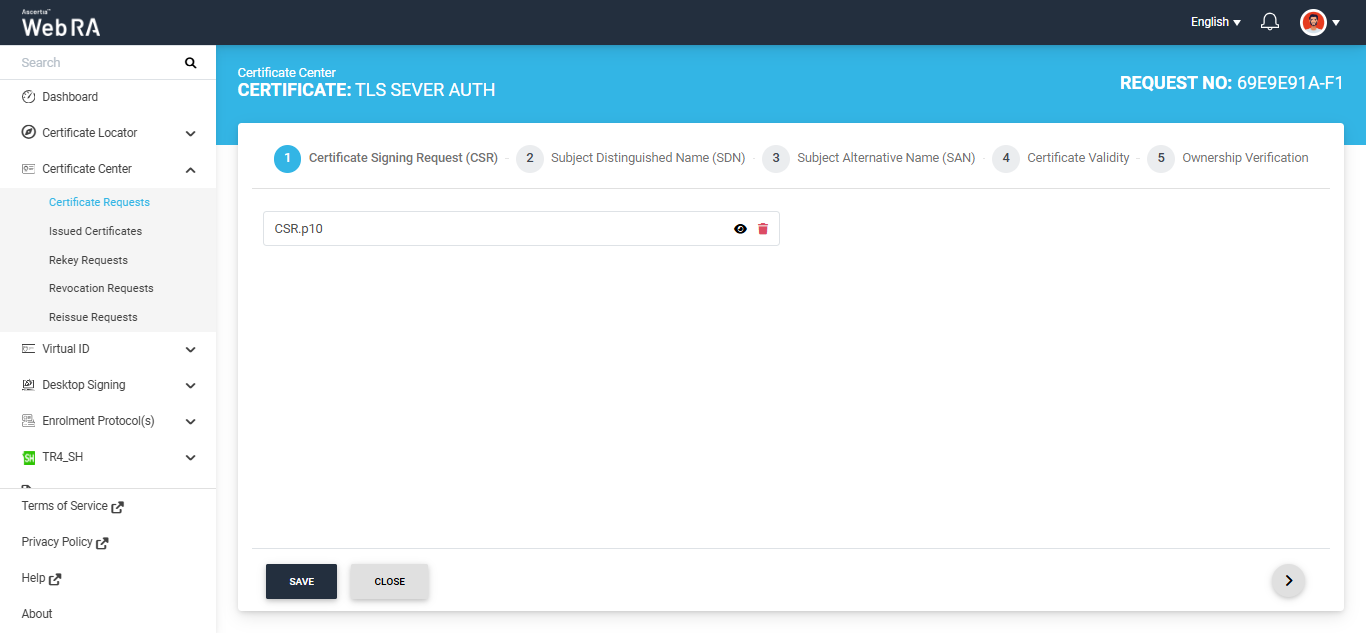

On this screen, either upload the CSR through 'Click to upload a CSR' heperlinked option or paste the CSR in the box below.Once the CSR is uploaded, it will appear on the screen and the system will also display additional tabs in the Create Request window.

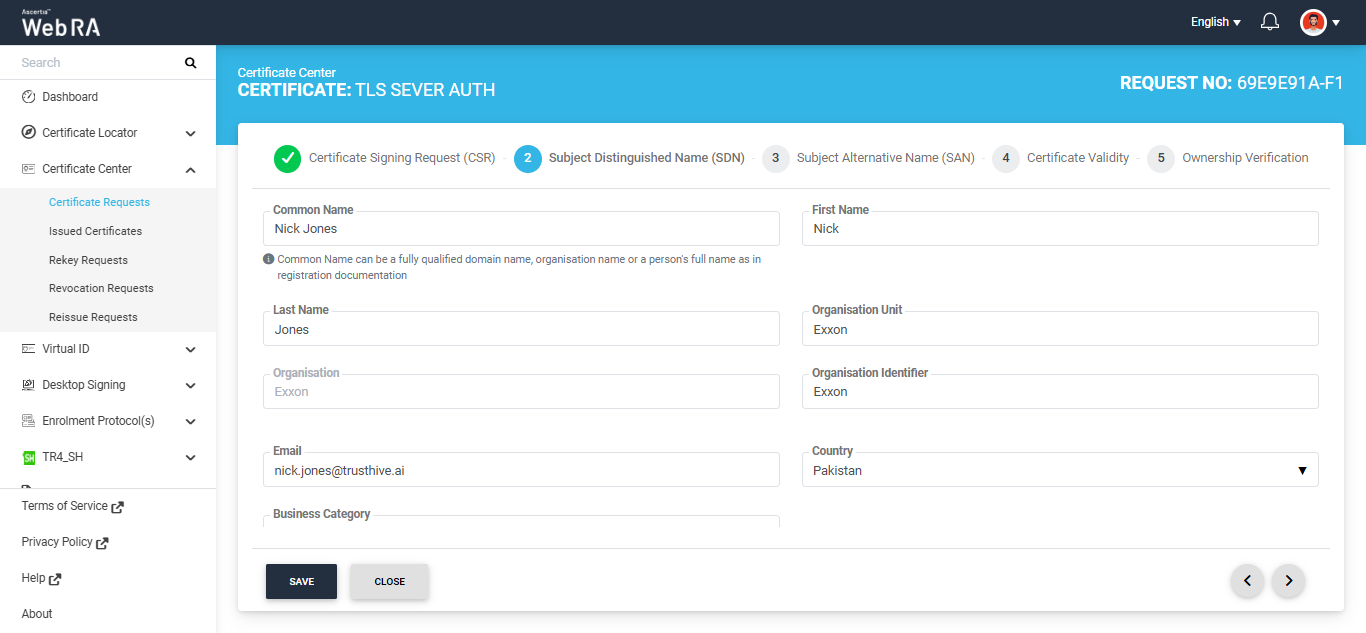

Click the '>' button to navigate to the ‘Subject Distinguished Name (SDN)’ screen.

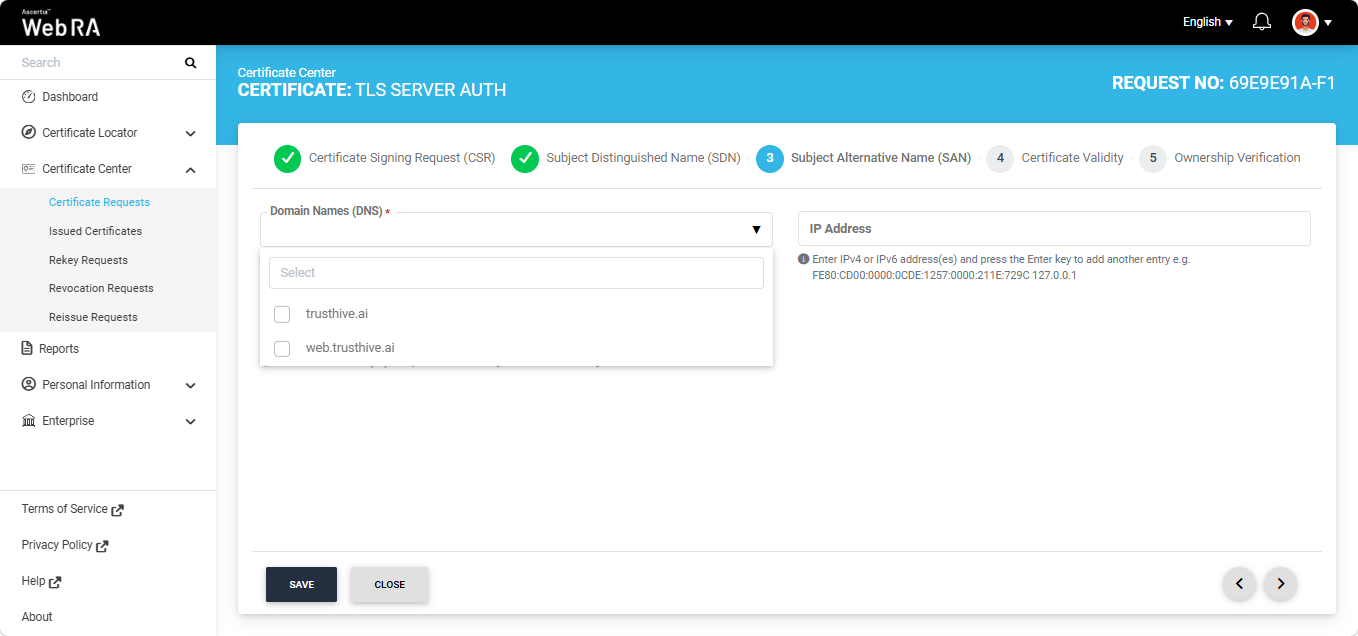

After entering the required information in the given fields click the next ‘>’ button to navigate to the ‘Subject Alternative Screen (SAN)’ screen.

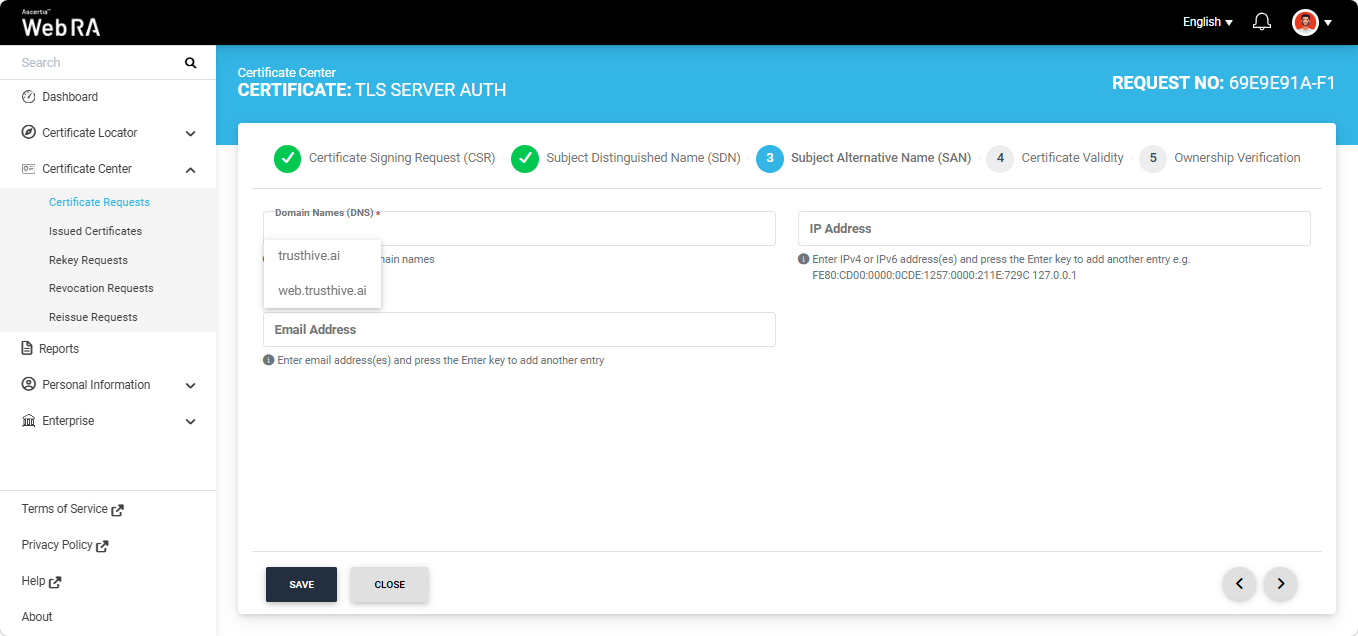

Note: ADSS Web RA supports the configuration of domain names at both the Admin and Enterprise level. The operator can set domain names and sub domain names to be associated to enterprises. The DNS name will be used in the certificate request form for its utilization while generating certificates exclusively from the domains pre-configured within their enterprise.


Note: If Email Validation checkbox is enabled in Configurations module and email address is present in the RFC822Name field of the Subject Alternative Names (SAN), the ownership verification screen will require you to complete email validation before generating the certificate.



Enter the required details in the given fields. Then, click the '>' button to navigate to the 'Certificate Validity' screen.



Click the '>' next button to navigate to the ‘Ownership Verification’ screen.

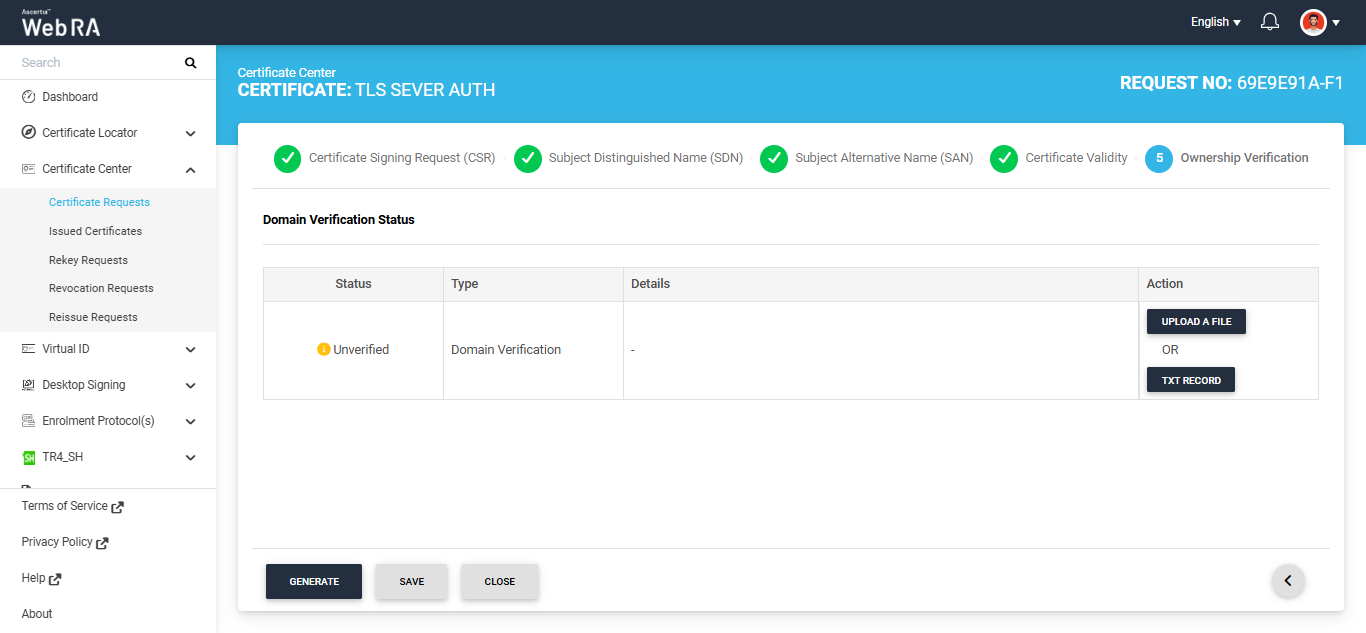

Here, the ‘Domain Verification Status’ will appear as ‘Unverified’. To verify the status, you will be required to either Upload a file or TXT Record.


Note: The action (Upload a File or TXT Record) through which domain verification can be performed is configured in the certification profile. The operator may select one or both methods for domain verification. If both methods are selected in the profile, you can use any of the method to verify your domain during certificate request creation. For more details about how the method is selected, navigate to the ‘Certification Profiles’ section.


Upload a File

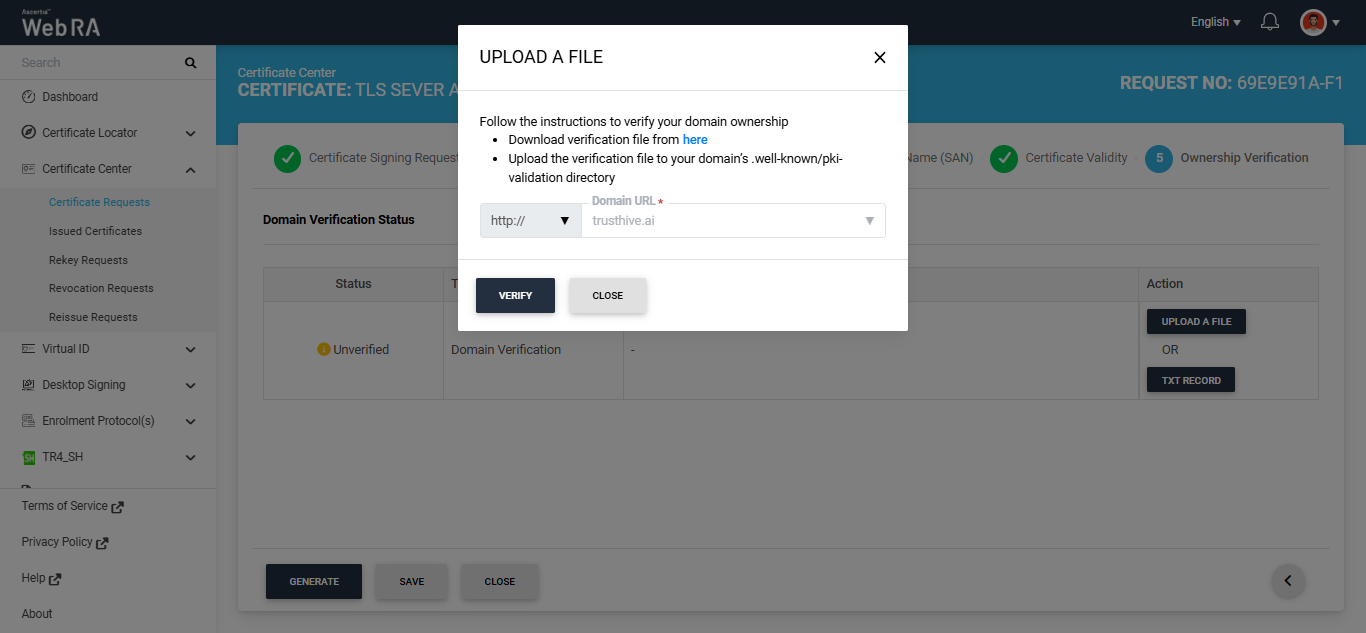

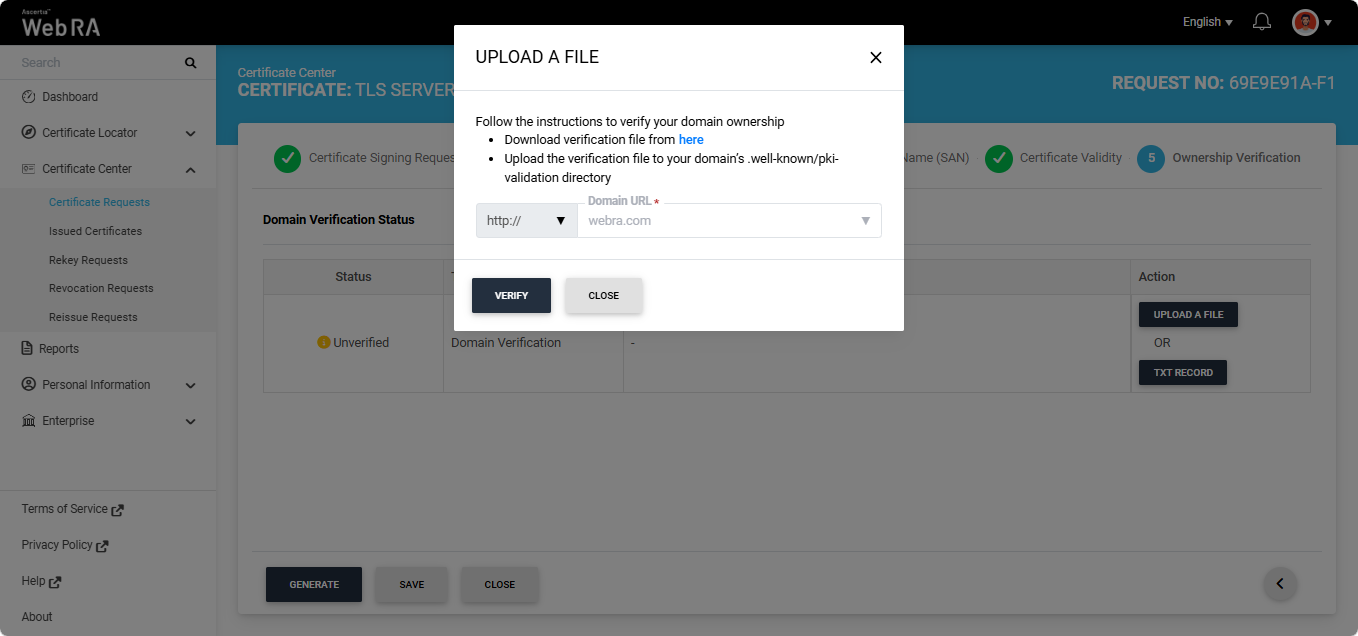

Click the ‘Upload a File’ button. The system will display the ‘Upload a File’ dialog, which contains instructions on how to verify the domain using this method.



TXT Record

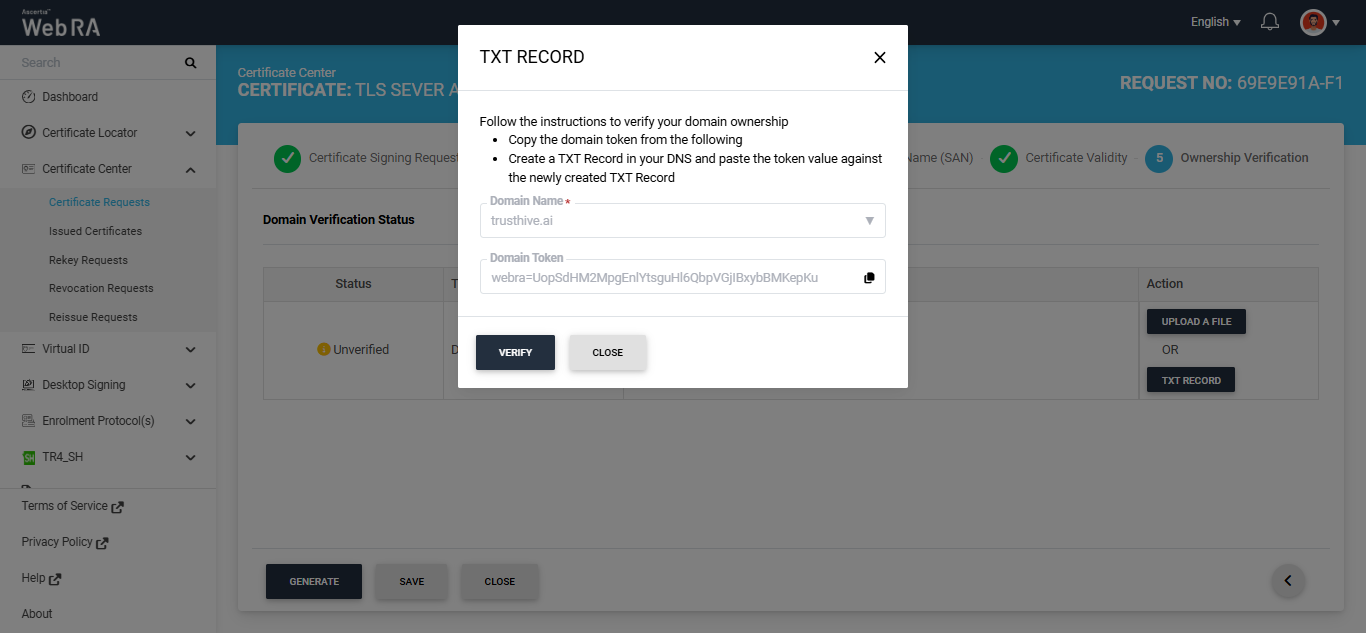

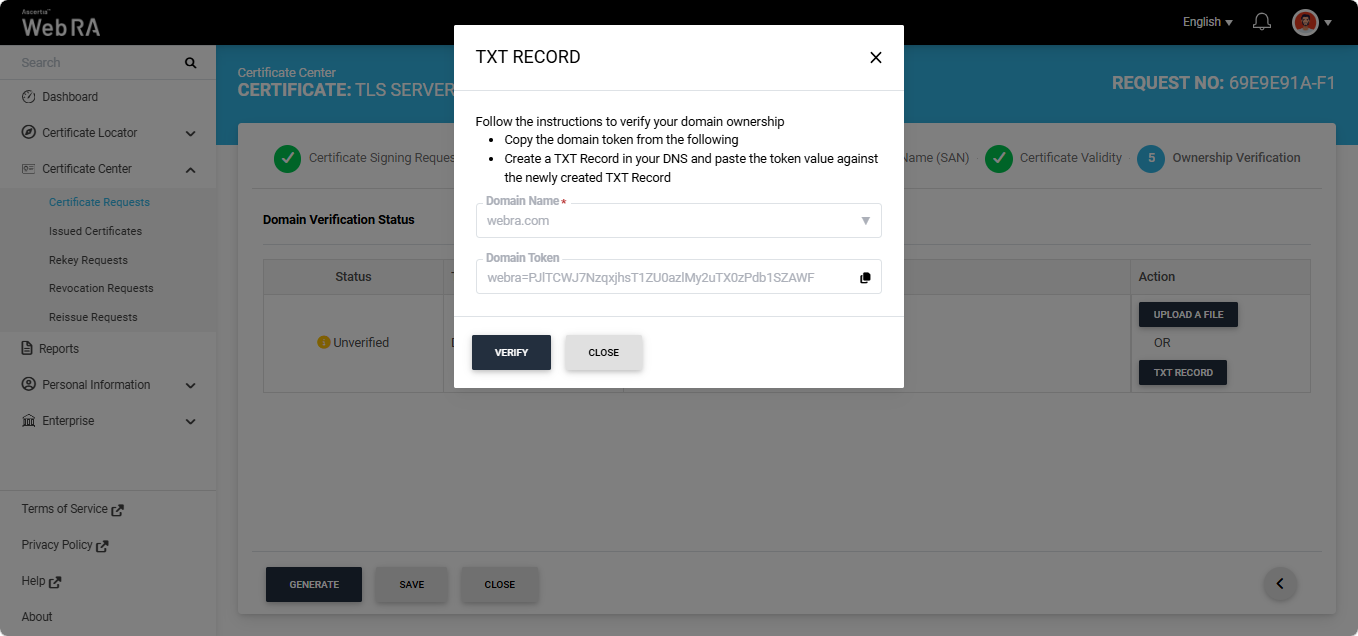

Click the ‘TXT Record’ button. The system will display the ‘TXT Record’ dialog, which contains instructions on how to verify the domain using this method.

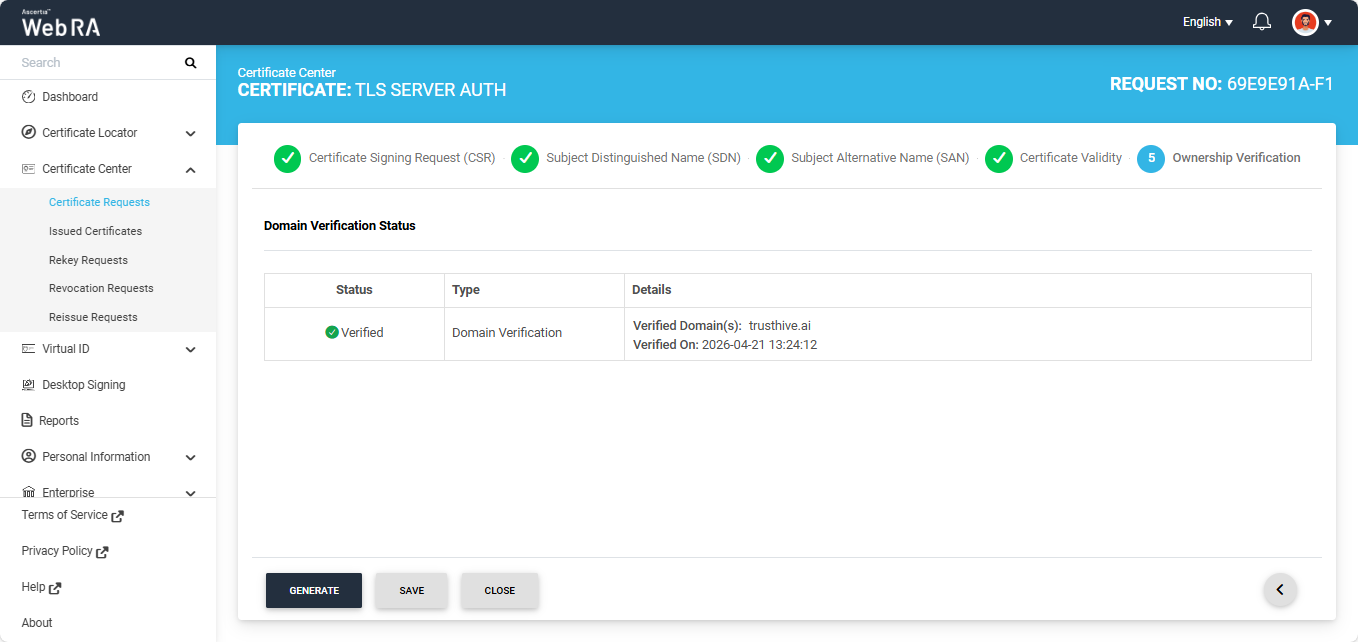

After selecting the required method from the two mentioned above, click the 'Verify' button. If all steps are completed correctly, the ‘Verified’ status will appear for the entered domain.



After the verification is complete you can click the 'Generate' button to create the certificate request.


Note: The steps mentioned above for creating a certificate request apply to the ‘DV SSL’ verification type. The same steps can be followed to generate certificate requests for ‘OV SSL’ and ‘EV SSL’ verification types.


Note: If Certification Authority Authorisation (CAA) Records is enabled from the Admin Policy Configurations or Enterprise Domain Settings, the system will perform CAA record verification in the Ownership Verification section as well. The CAA record verification row will appear below Domain Verification. If you want to see how certificate request with CAA record verification is generated, navigate to CAA Record Verification section.


DNSSEC Verification


An additional check for DNSSEC verification has been enabled for all certificate types in Web RA. This feature is automatically enabled in the system and adds a DNSSEC check for domain validation and Certificate Authority Authorisation (CAA) verification during certificate request creation.



If DNSSEC is enabled and correctly configured for the domain, the system validates the domain’s DNSSEC signature during certificate request processing. If the signature is valid and the domain verification is successful, the certificate request is processed successfully and the system displays a ‘Verified’ status for DNSSEC verification. You can generate the certificate request after successful verification.



If DNSSEC is not enabled for the domain, DNSSEC verification will not be performed and the certificate will be generated without it.

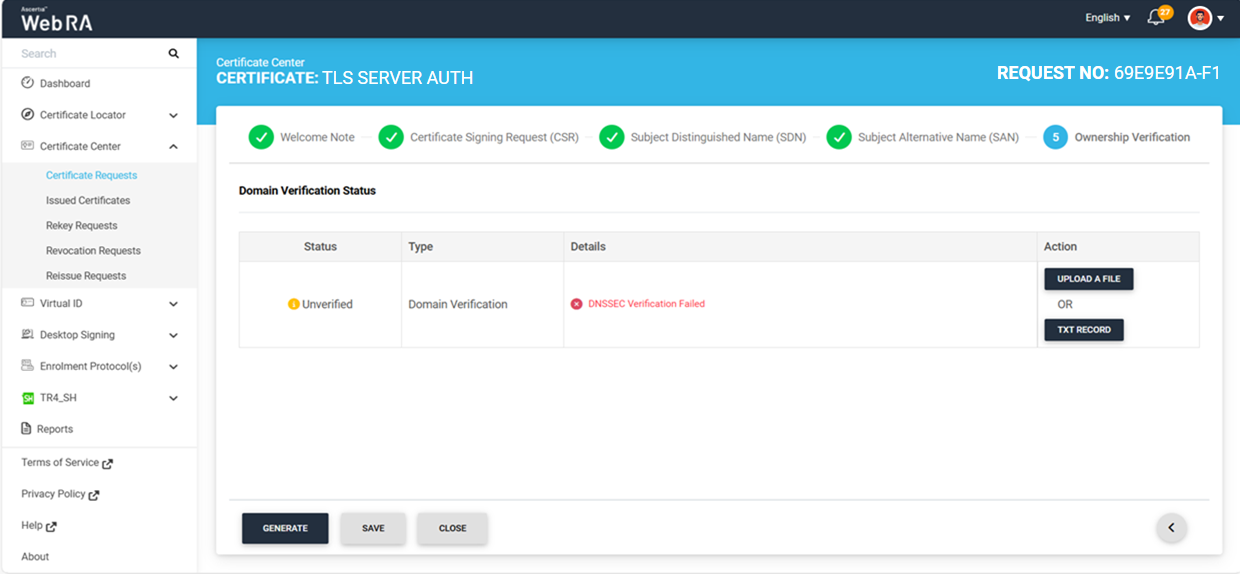

However, if DNSSEC is enabled but the verification fails, the system displays an error on the screen.



Open MPIC Validation


If Open MPIC Validation is enabled in the certification profile, Open MPIC will also perform domain validation and CAA verification (if enabled in Enterprise domain settings) during certificate generation.


The domain will be verified by the Open MPIC perspectives. If the domain verification meets the minimum quorum count specified in the Open MPIC connector, the user will be able to generate the certificate. For more details about Open MPIC connector, refer to the Connectors section.

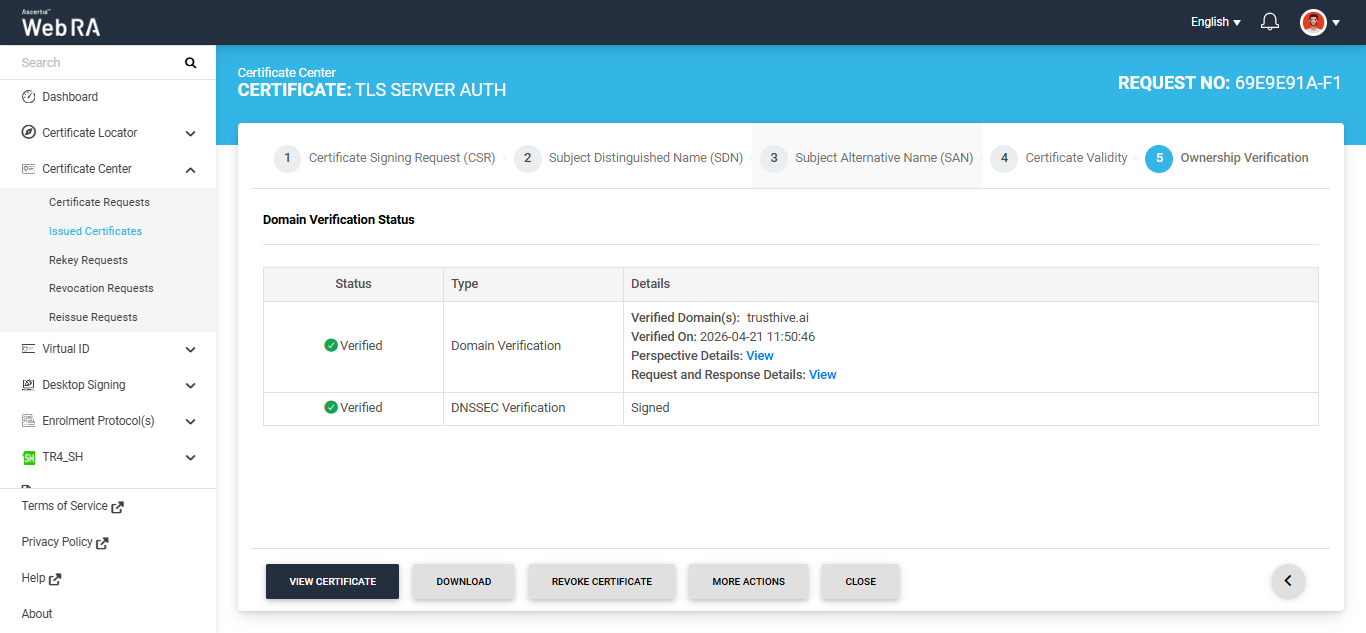

After domain verification is performed by Open MPIC, the system will display a Verified status for the specified domain. You can generate the certificate request after successful verification.



To view the Open MPIC perspective details, click the ‘View’ button next to 'Perspective Details'. The system will display the ‘Perspective Details’ dialog on the screen.

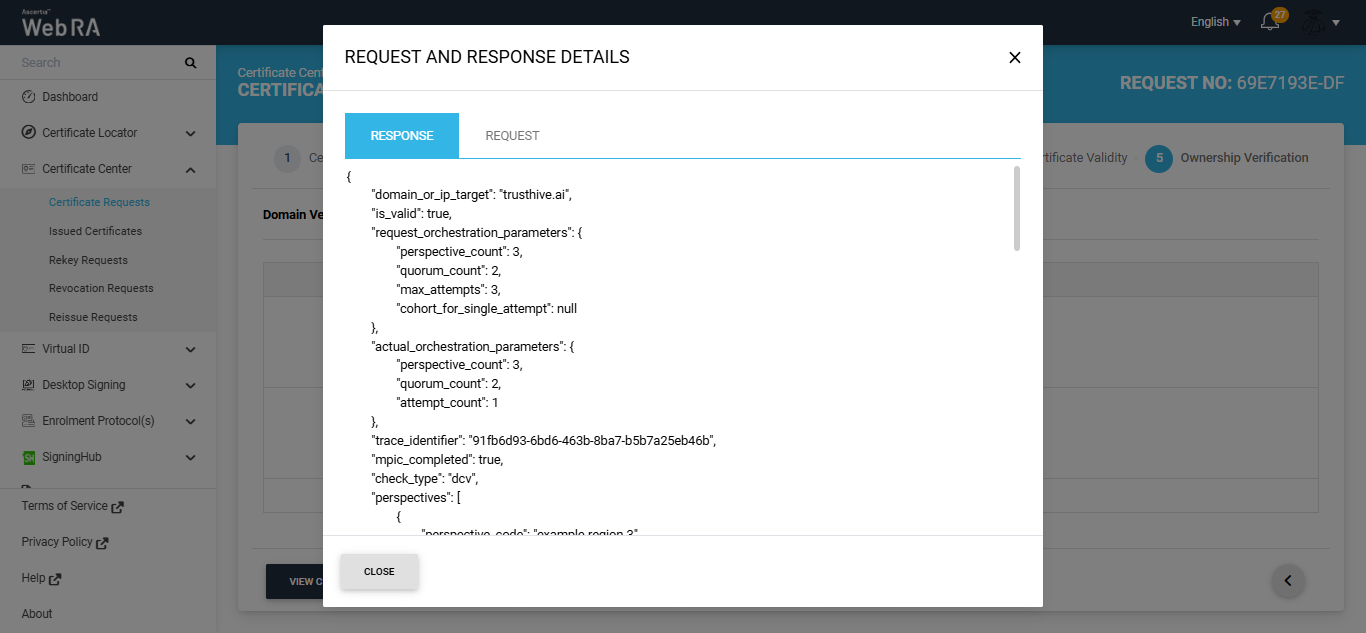

To view the Request and Response details, click the 'View' button. The system will display the 'Request and Reponse Details' dialog. You can view both Request and Response details from their respective tabs.

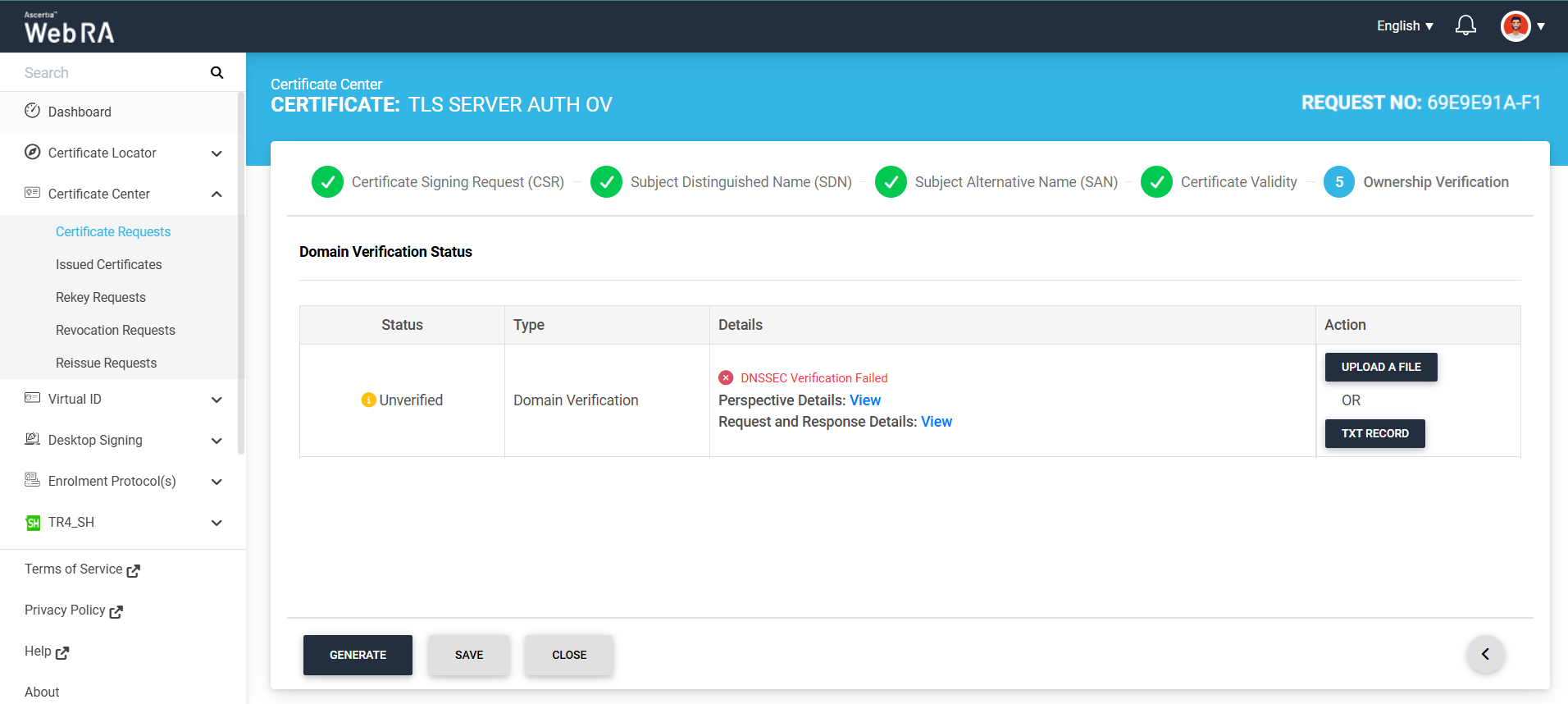

Note: If Open MPIC is enabled and DNSSEC Verification fails, the error will be displayed on the screen as shown in the image below.



You can view the Perspective Details and Request and Response Details by clicking the respective 'View' button.


The following steps describe how to create a certificate request for ‘TLS authentication with DV as none (CAA Records)’ certificate type.

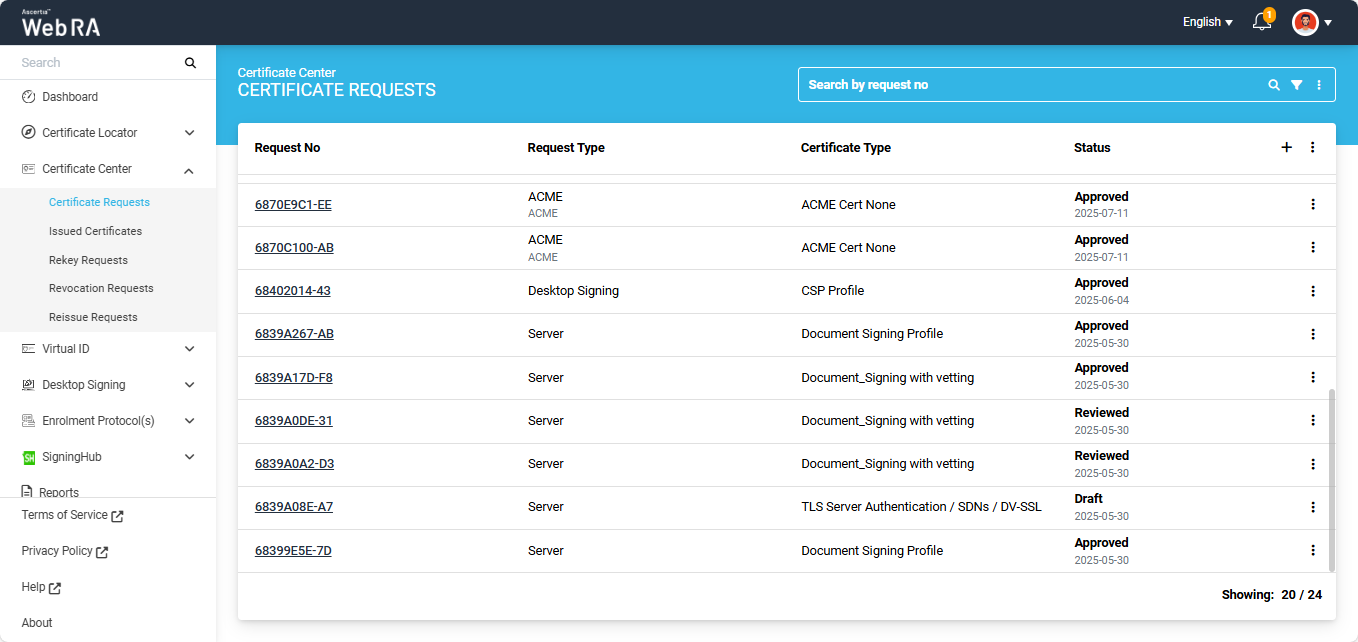

In the web portal, expand the ‘Certificate Center’ tab from the left menu pane and click on the ‘Certificate Requests’ option.



Click on the ‘+’ plus button in the listing header to create a new certificate request. The system will display the ‘Create Request’ screen.

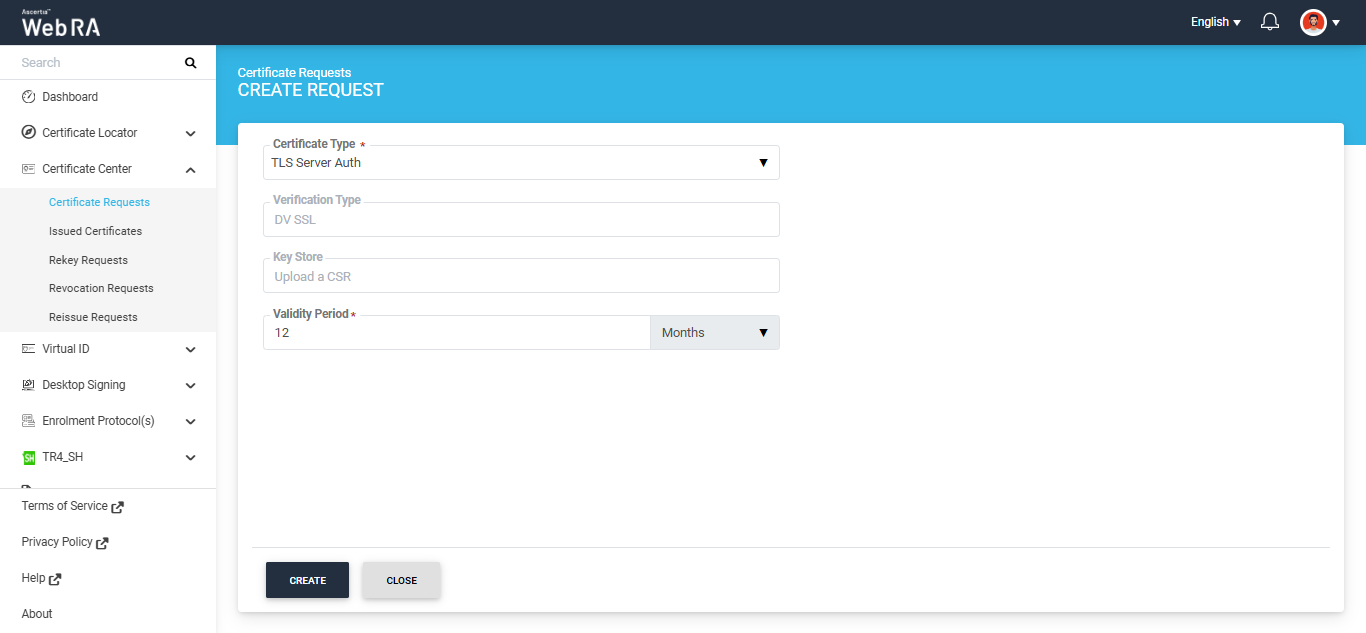

On this screen, select the ‘Certificate Type’ from the given dropdown field.



After selecting the profile, click the 'Create' button. The system will display the 'Certificate Signing Request (CSR)' screen.

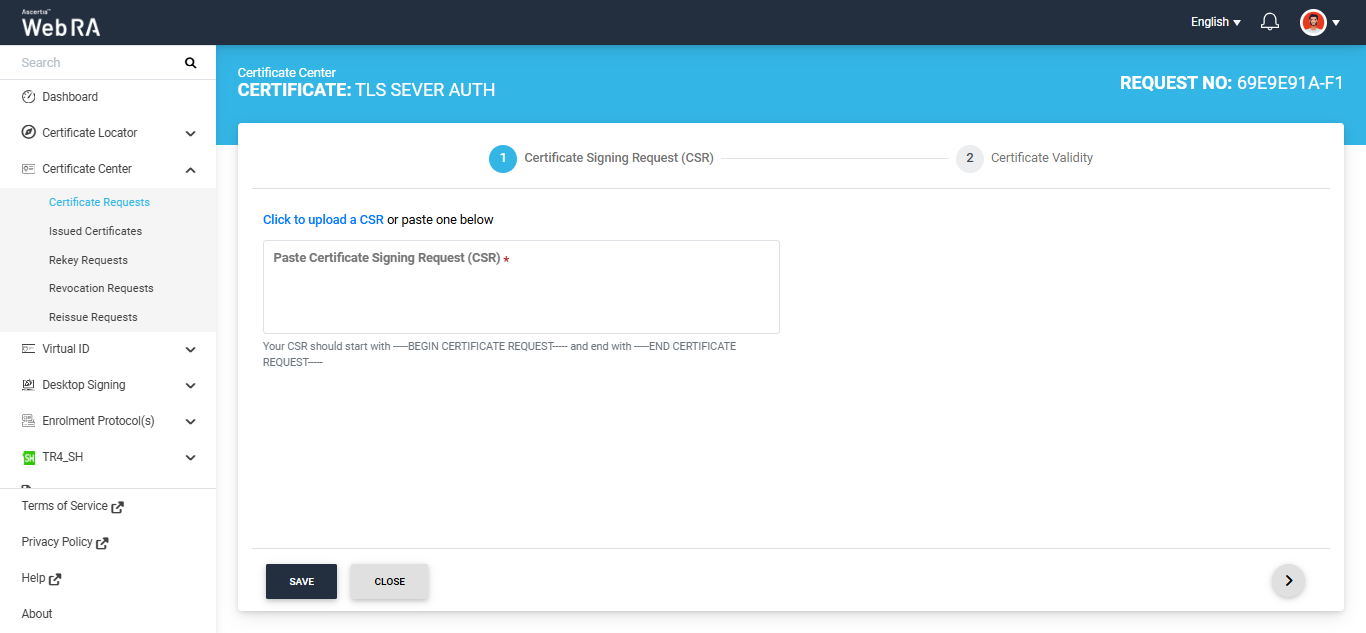

On this screen, either upload the CSR through 'Click to upload a CSR' heperlinked option or paste the CSR in the box below.Once the CSR is uploaded, it will appear on the screen and the system will also display additional tabs in the Create Request window.



Click the '>' button to navigate to the ‘Subject Distinguished Name (SDN)’ screen.



After entering the required information in the given fields click the next ‘>’ button to navigate to the ‘Subject Alternative Screen (SAN)’ screen.


Note: ADSS Web RA supports the configuration of domain names at both the Admin and Enterprise level. The operator can set domain names and sub domain names to be associated to enterprises. The DNS name will be used in the certificate request form for its utilization while generating certificates exclusively from the domains pre-configured within their enterprise.


Note: If Email Validation checkbox is enabled in Configurations module and email address is present in the RFC822Name field of the Subject Alternative Names (SAN), the ownership verification screen will require you to complete email validation before generating the certificate.

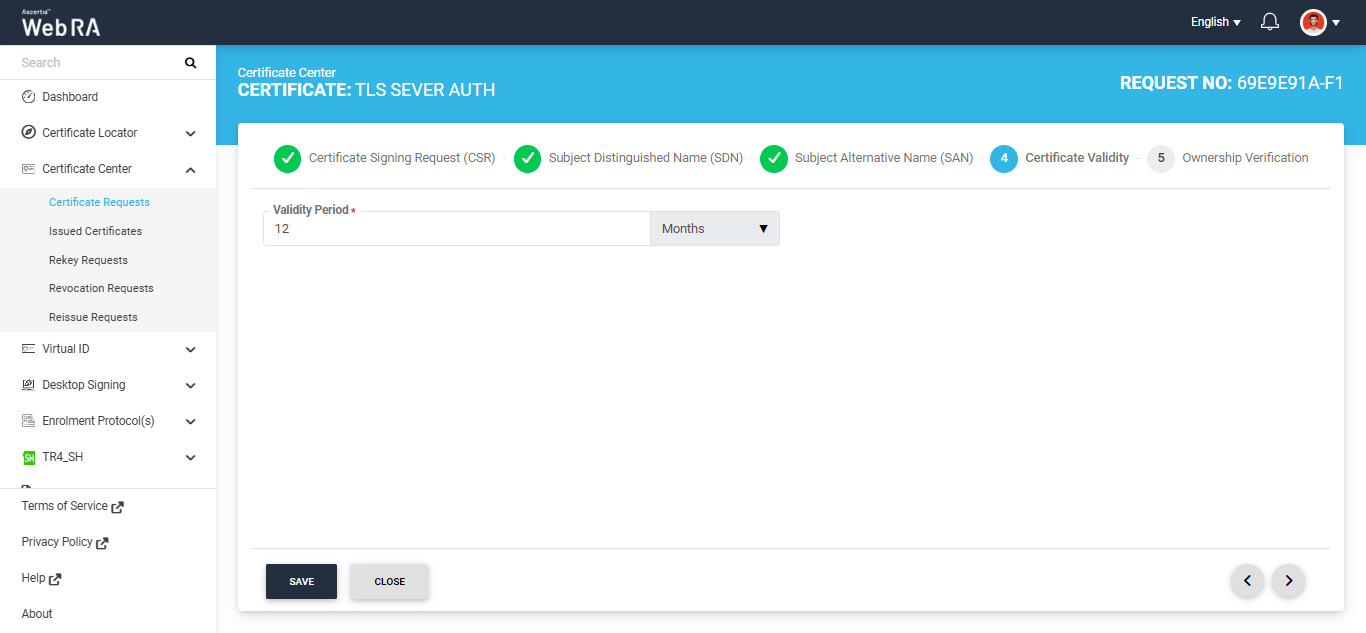

Enter the required details in the given fields. Then, click the '>' button to navigate to the 'Certificate Validity' screen.



Click the '>' next button to navigate to the ‘Ownership Verification’ screen.

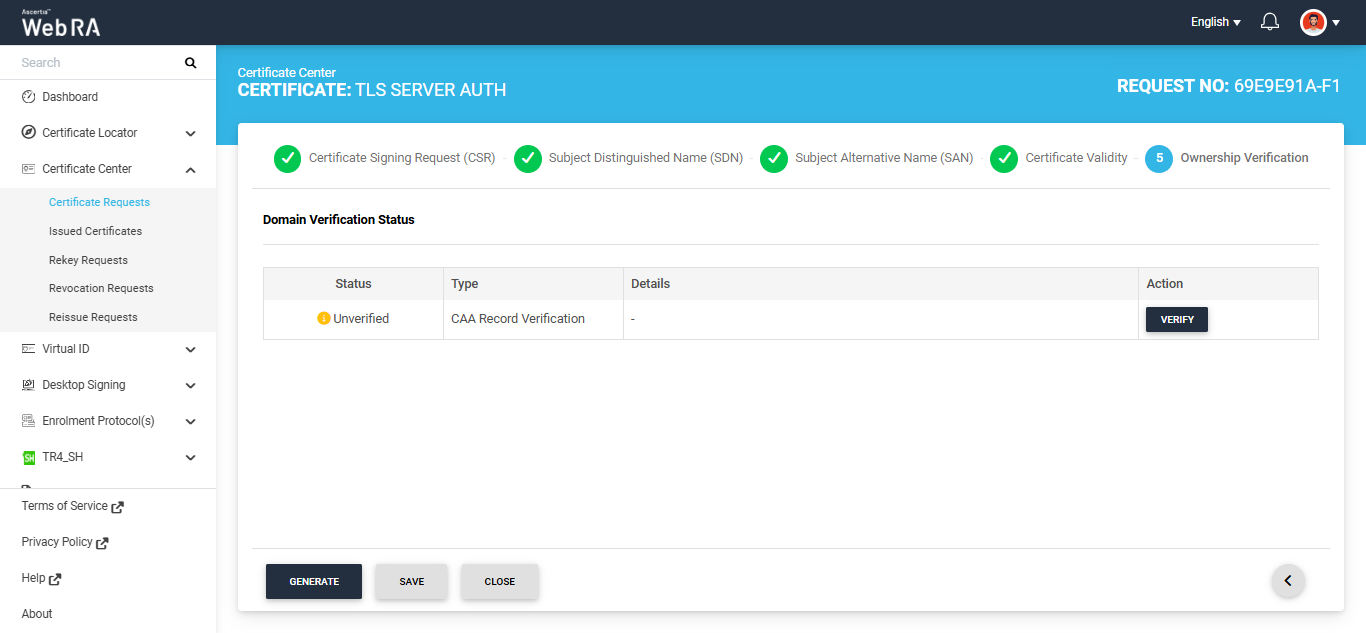

The ‘Domain Verification Status’ will appear unverified. Click the ‘Verify’ button.

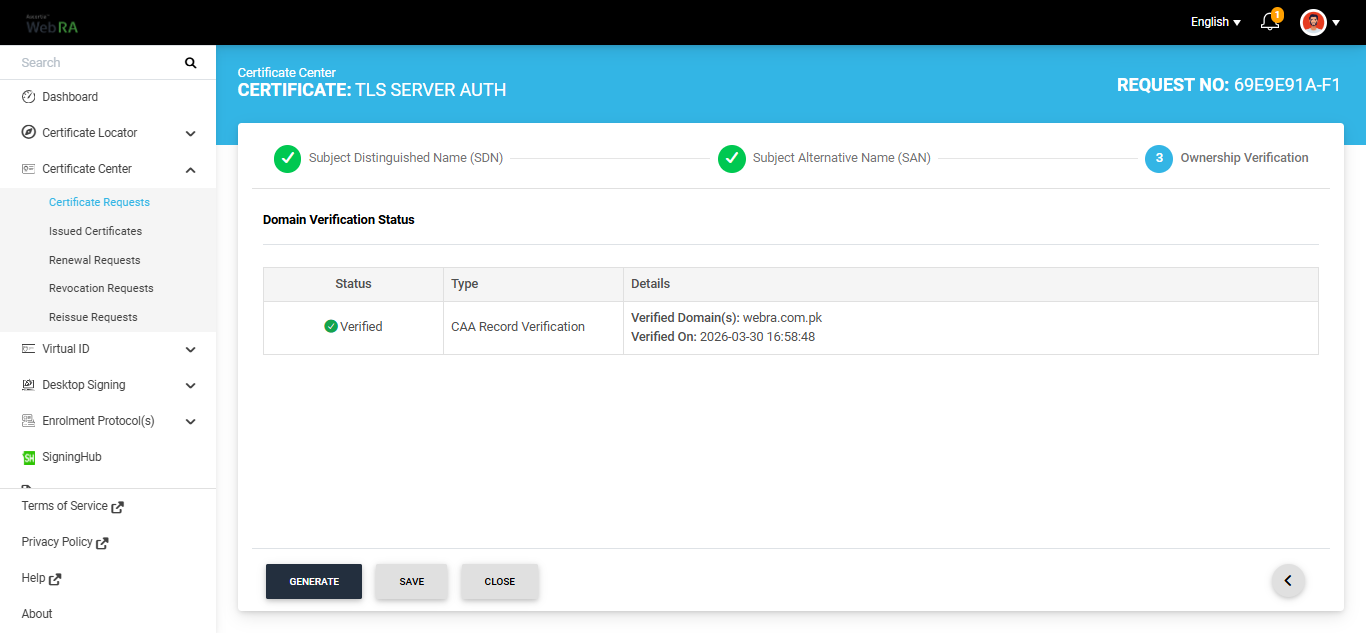

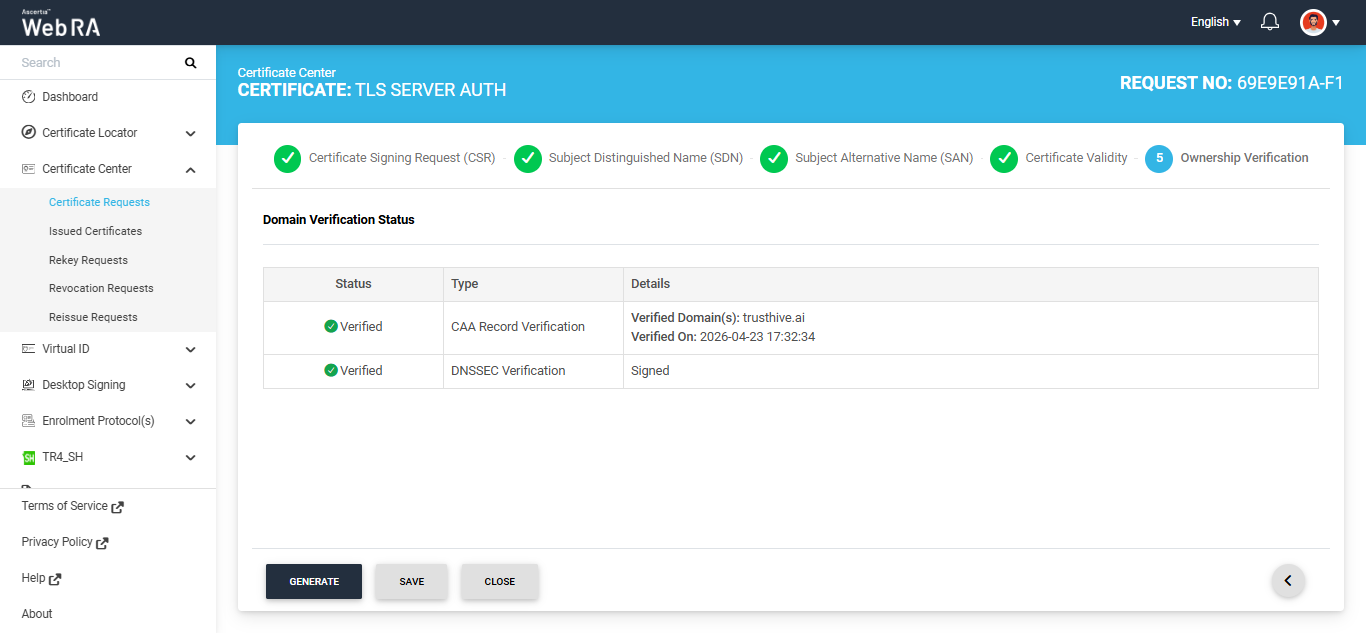

If the CAA records you configured in the Enterprise Domain configurations matches the CA record you entered in the DNS entry, the Domain Verification Status will appear Verified, as displayed below:



If the CAA records you configured in the Enterprise Domain configurations does not match the CA record you entered in the DNS entry, the system will display an error.

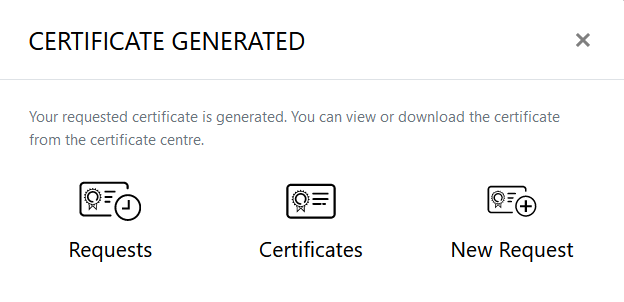

In case of Verified status, click 'Generate' to process a certificate. The Certificate Generated confirmation message will appear, as displayed below:



DNSSEC Verification


An additional check for DNSSEC verification has been enabled for all certificate types in Web RA. This feature is automatically enabled in the system and adds a DNSSEC check for domain validation and Certificate Authority Authorisation (CAA) verification during certificate request creation.



If DNSSEC is enabled and correctly configured for the domain, the system validates the domain’s DNSSEC signature during certificate request processing. If the signature is valid and the domain verification is successful, the certificate request is processed successfully and the system displays a ‘Verified’ status for DNSSEC verification.



If DNSSEC is not enabled for the domain, DNSSEC verification will not be performed and the certificate will be generated without it.



However, if DNSSEC is enabled but the verification fails, the system displays an error on the screen.



Open MPIC Validation


If Open MPIC Validation is enabled in the certification profile, Open MPIC will also perform domain validation and CAA verification (if enabled in Enterprise domain settings) during certificate request generation.


The domain will be verified by the Open MPIC perspectives. If the domain verification meets the minimum quorum count specified in the Open MPIC connector, the user will be able to generate the certificate. For more details about Open MPIC connector, refer to the Connectors section.

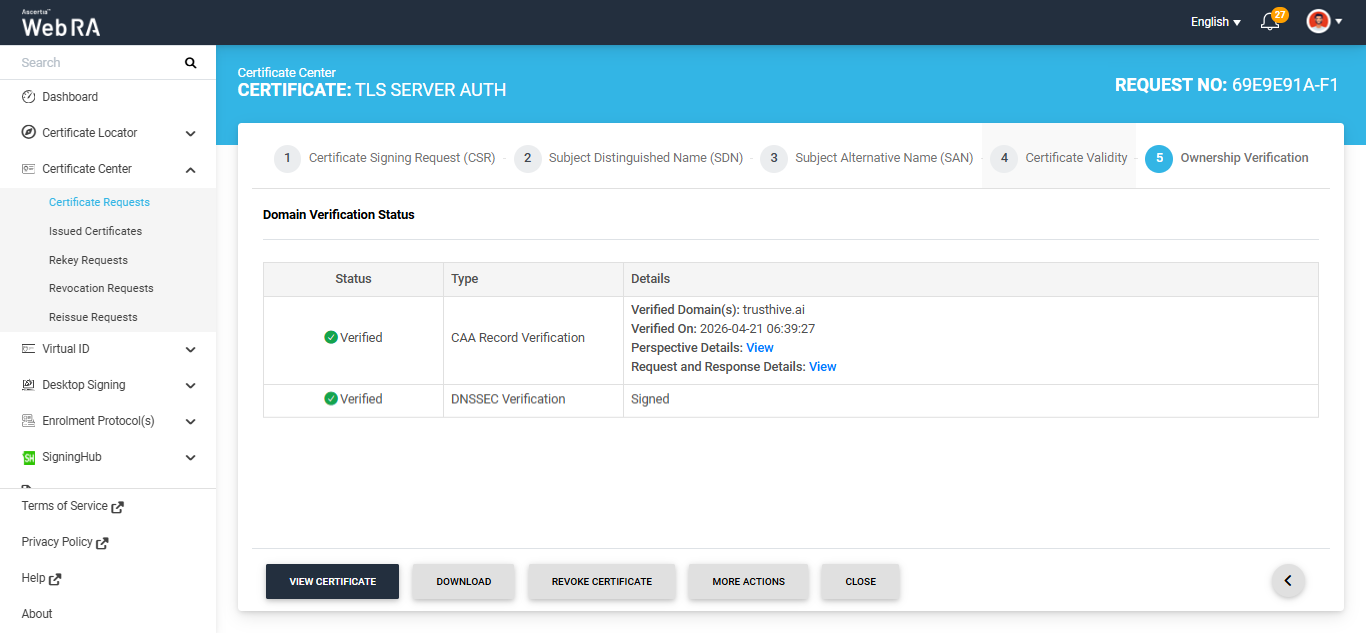

After domain verification is performed by Open MPIC, the system will display a Verified status for the specified domain.



To view the Open MPIC perspective details, click the ‘View’ button next to 'Perspective Details'. The system will display the ‘Perspective Details’ dialog on the screen.



To view the Request and Response details, click the 'View' button. The system will display the 'Request and Reponse Details' dialog. You can view both Request and Response details from their respective tabs.

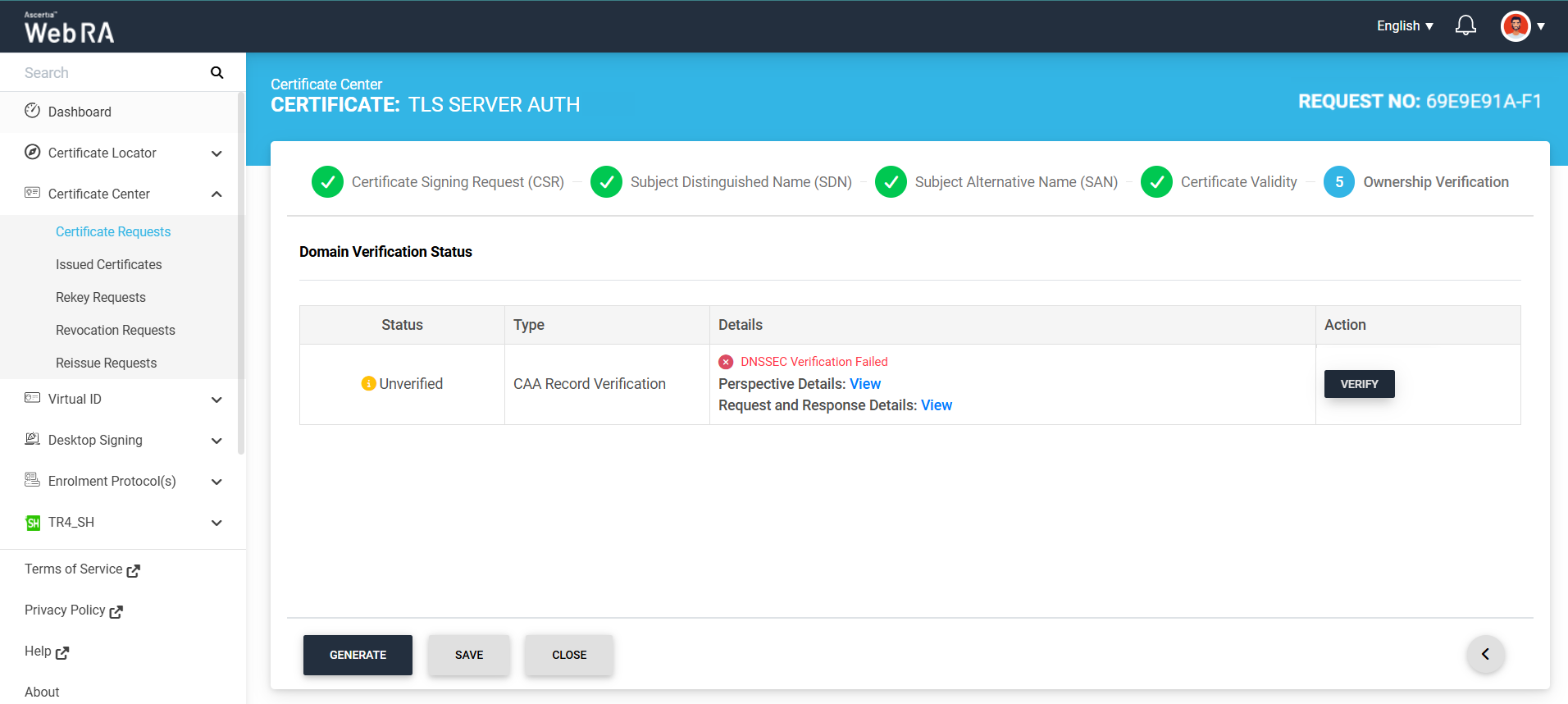

Note: If Open MPIC is enabled and DNSSEC Verification fails, the error will be displayed on the screen as shown in the image below.



You can view the Perspective Details and Request and Response Details by clicking the respective 'View' button.
