The Web RA installer allows you to add modules to your deployment at a later time if they were not installed initially. For example, if a user installs the Web RA application with the Admin, Web, and API modules but skips the Device Enrolments or Windows Enrolments modules, he can upgrade the existing deployment by adding these skipped modules when needed.


For example base version is v2.9 then follow the below steps:

Launch the installer by right-clicking on the file name [ADSS Web RA Installation Directory]/setup/install.bat and select Run as administrator.

Follow the installation wizard as described previously until the Installation Type screen is shown:

Select the option Upgrade an existing ADSS Web RA instance to the latest one


Click the Next button to view and accept the License Agreement.




Click the I Agree button to proceed

The next appearing screen will be for Readme text. This includes all features of current version. Click Next to proceed.

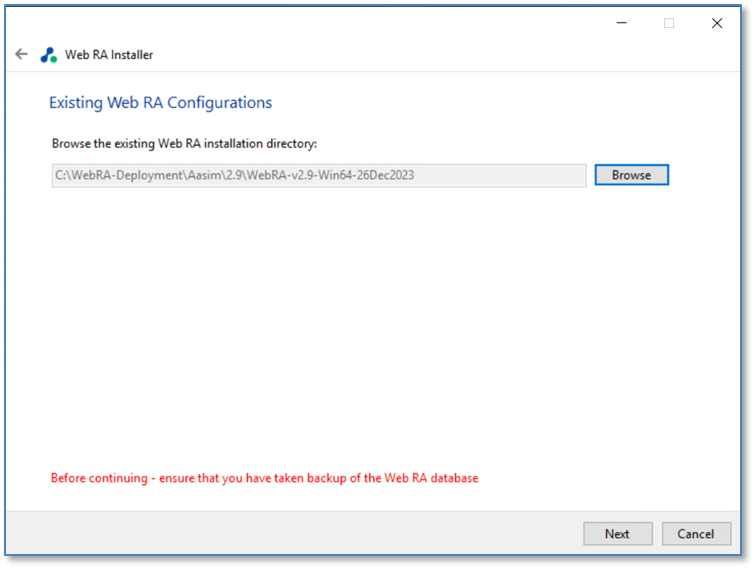

Click Browse and define the path to the existing ADSS Web RA installation base directory.



Click the Next button to select Web RA Modules. The already installed modules will be look like disabled fields e.g. Admin, Web and API modules are already installed.



Click N  Click the Next and Select Device Modules to install the required features if not installed already. For each selected application, provide the web application name and port. The modules which are not previously installed will look like editable fields. Click Next to proceed.

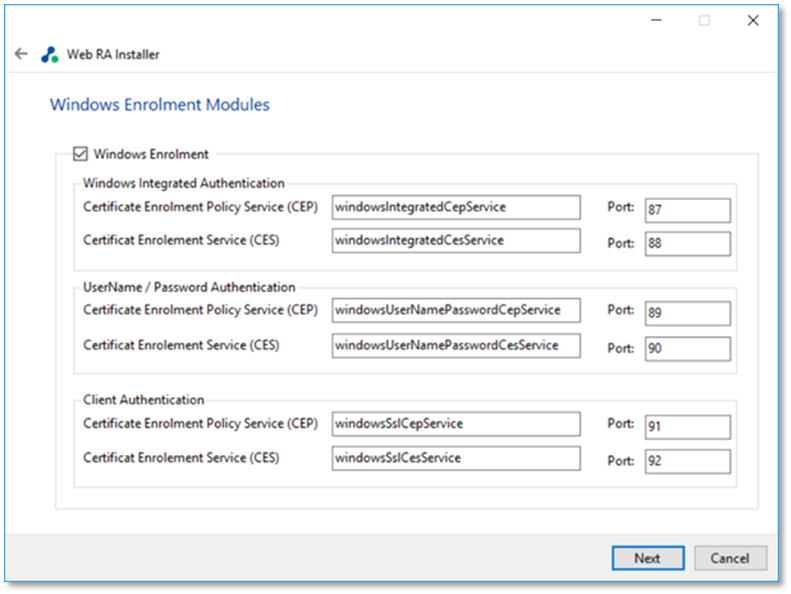

Select Windows Enrolment if not already installed. For each selected application, provide the web application name and port. Then click Next.



This screen shows a list of all ADSS Web RA modules. Components that are already installed are displayed but greyed out, while any ADSS Web RA module(s) that have not been installed previously can be selected for installation during the upgrade.

Click the Next button to see the Upgrade Summary.

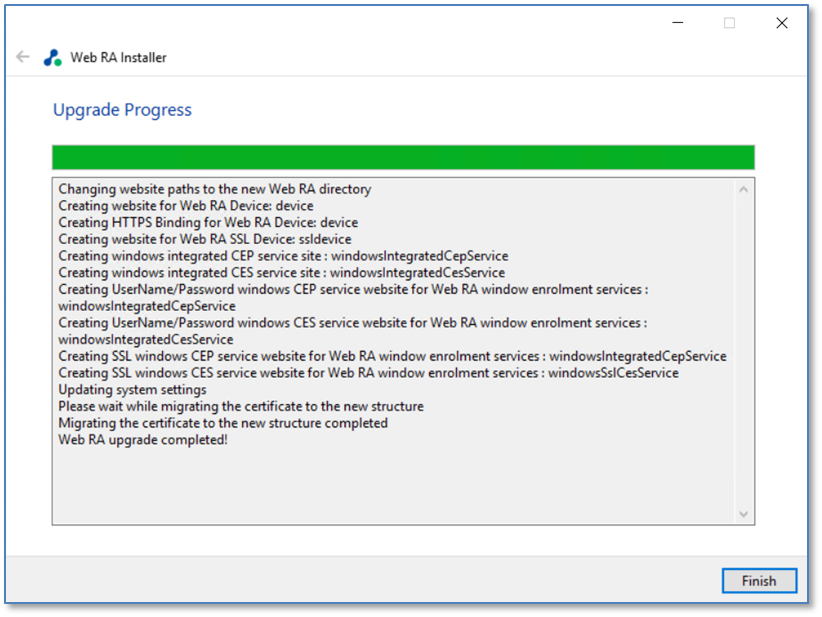

Click the Next button to start the upgrade progress.



Click the Finish button to complete the ADSS Web RA upgrade process. Newly added modules will be deployed in IIS.

It is recommended to restart IIS after upgrade installation of ADSS Web RA.
