WebRA User Guide

In this section, you will learn about the end-to-end user flow for Desktop Signing.

1. Create a Certification Profile
2. Create a Service Plan
3. Create an Enterprise and Associate the Service Plan with It
4. Create a New Role and Assign Profiles to That Role
5. Create a Desktop Signing Account on the ADSS Web RA Portal
6. Generate a Desktop Signing Certificate

After creating a Desktop Signing account, you can perform a number of actions as listed below:

• View Certificate
• Download Certificate
• Provision Certificate
• Delete Certificate
• History
• More Actions

Desktop Signing facilitates to register user ID and provides the capability to manage its certificate keys. Certificates generated and provisioned for Desktop Signing account can be used within the VCSP Desktop application to securely sign documents.

These certificates can be used for Advanced Electronic Signature, for the following purposes:

• Document Signing
• Client Authentication

A certificate request can be made for issuance/approval, renewal, or revocation.

Create a Certification Profile

A certification profile is created in ADSS Web RA to configure ADSS profiles (Certification and/or CSP) for issuing different types of certificates to ADSS Web RA users. In other words, a certification profile (Certification and/or CSP) is created on the ADSS Server and is used in ADSS Web RA Admin for implementation.

Certification profiles define all the necessary configurations and business requirements, such as CA details, key algorithm, and validity, to issue the corresponding certificates for ADSS Web RA users.

To create a certification profile in the ADSS Web RA, the user must first create a CSP profile in the ADSS Server.  For more details on how to create a Certification Profile in ADSS Server, view the ‘Configuring CSP Profiles’ section.

Create a Certification Profile in ADSS Web RA

The operator will create a certification profile by following the steps mentioned below:

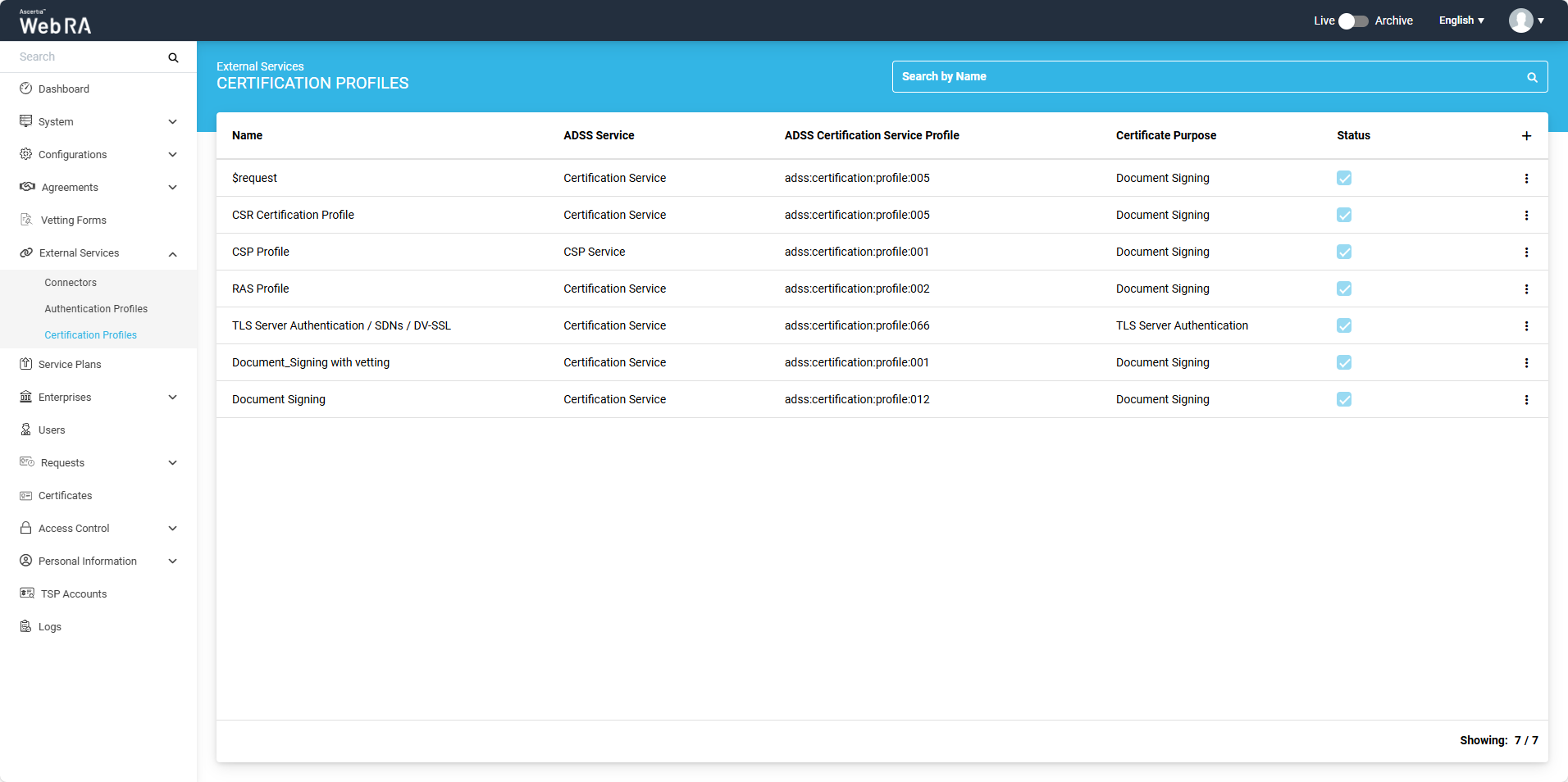

1. From the admin portal, expand External Services > Certification Profiles from the left menu to see the certification profiles listing screen.

2. Click on '+' from the grid header to create the certification profile.

3. An Add screen will appear from where the operator can add the details about the profile. The certification profile dialogue will consist of the following five screens:

• Basic Information
• Profile Settings
• Details
• Authentications
• Advance Settings

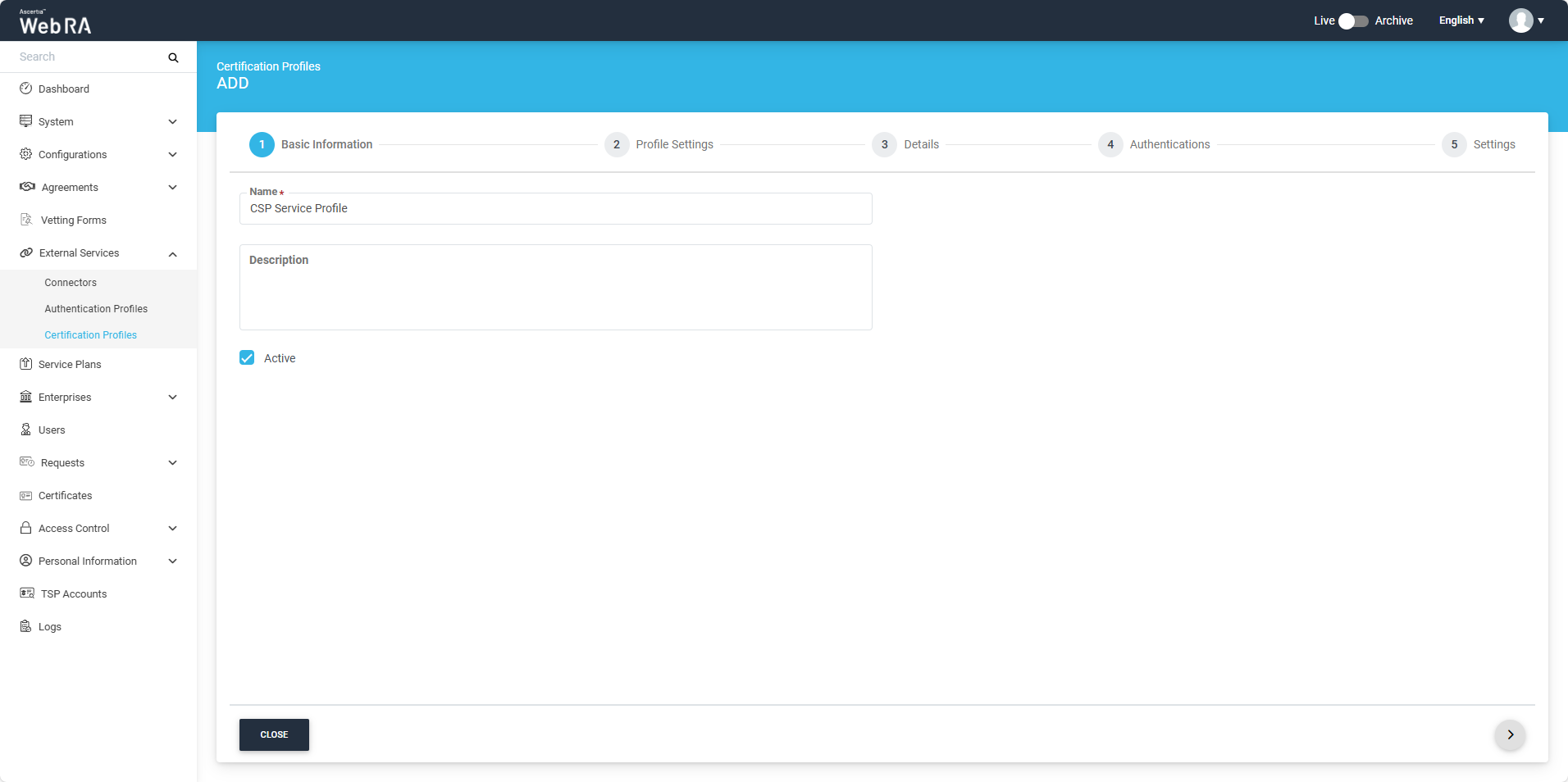

Basic Information

After entering the above-mentioned details on the Basic Information screen, click Next.

Profile Settings

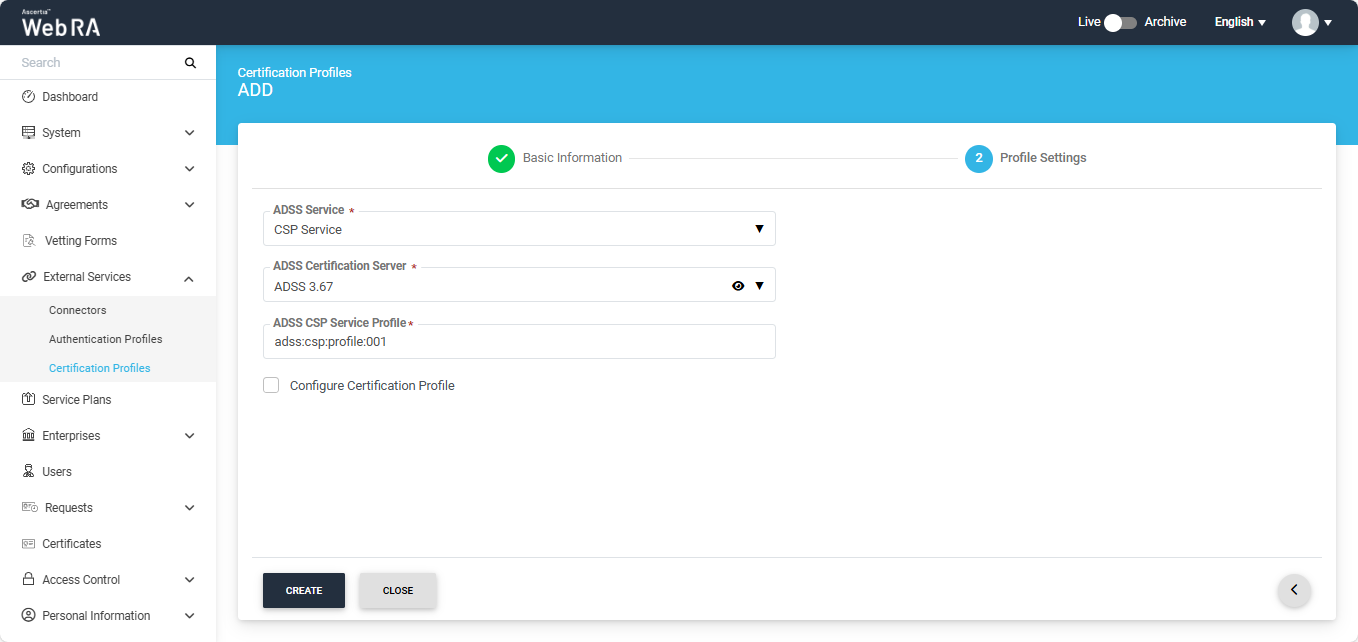

Certification Profile Settings for a CSP Service profile:

An operator will select the ‘CSP Service’ from the ADSS Service dropdown, choose the ADSS connector, and then add the ADSS CSP service profile. This will be used as the default profile.

If you enable the ‘Configure Certification Profile’ checkbox, two more fields will appear on the screen:

1. ADSS Certification Server
2. ADSS Certification Service Profile

Once you select the ADSS Certification Server and ADSS Certification Service Profile, the Certificate Purpose and Issuer Name fields will appear on the screen, along with the Enable Client Keys checkbox.

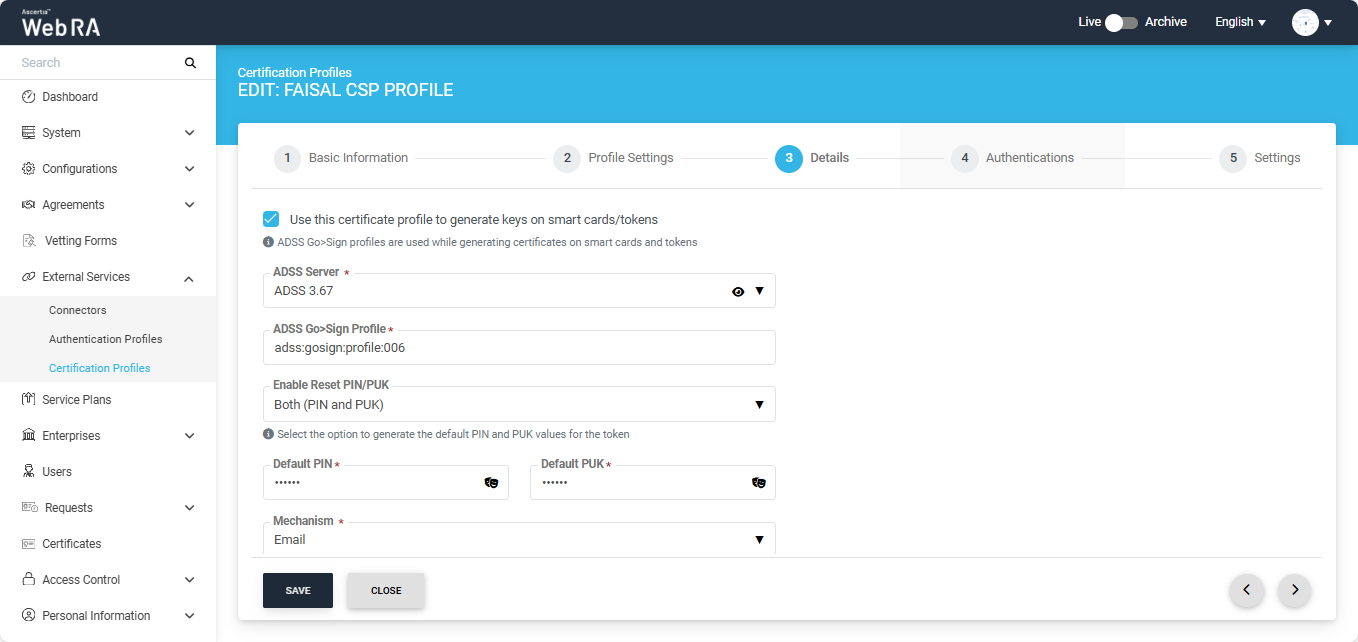

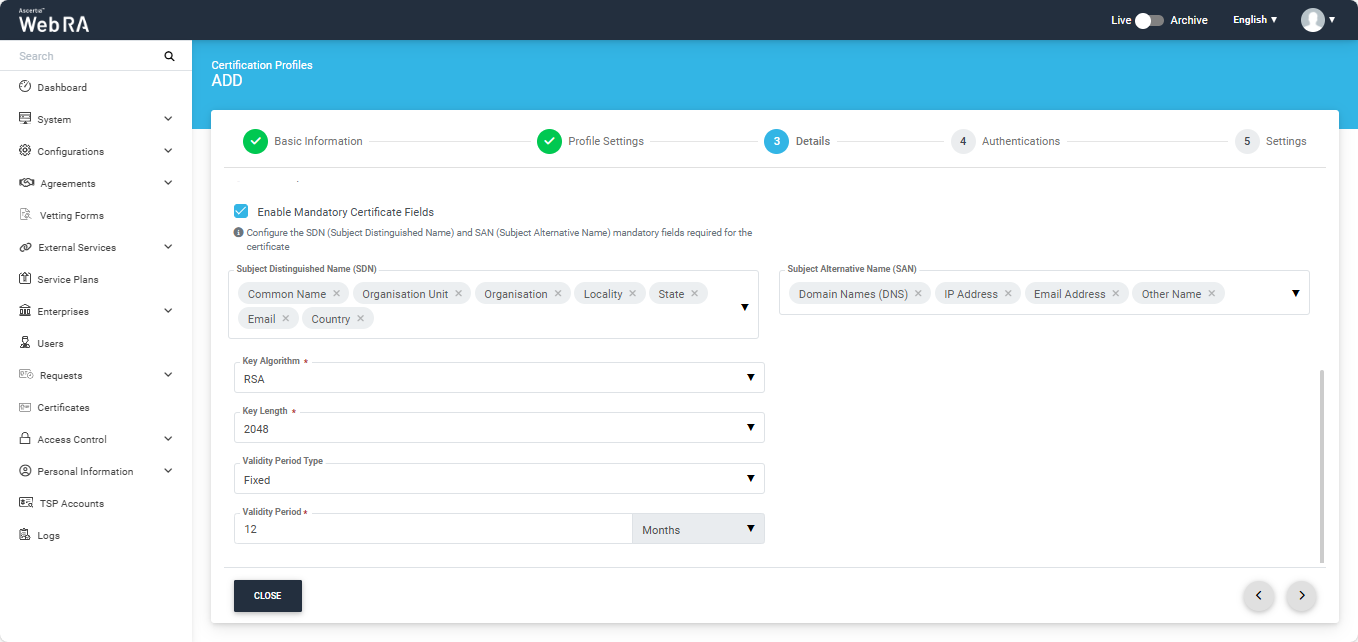

Details

Once you have configured the profile settings, click ‘>’ to move to the Details screen.

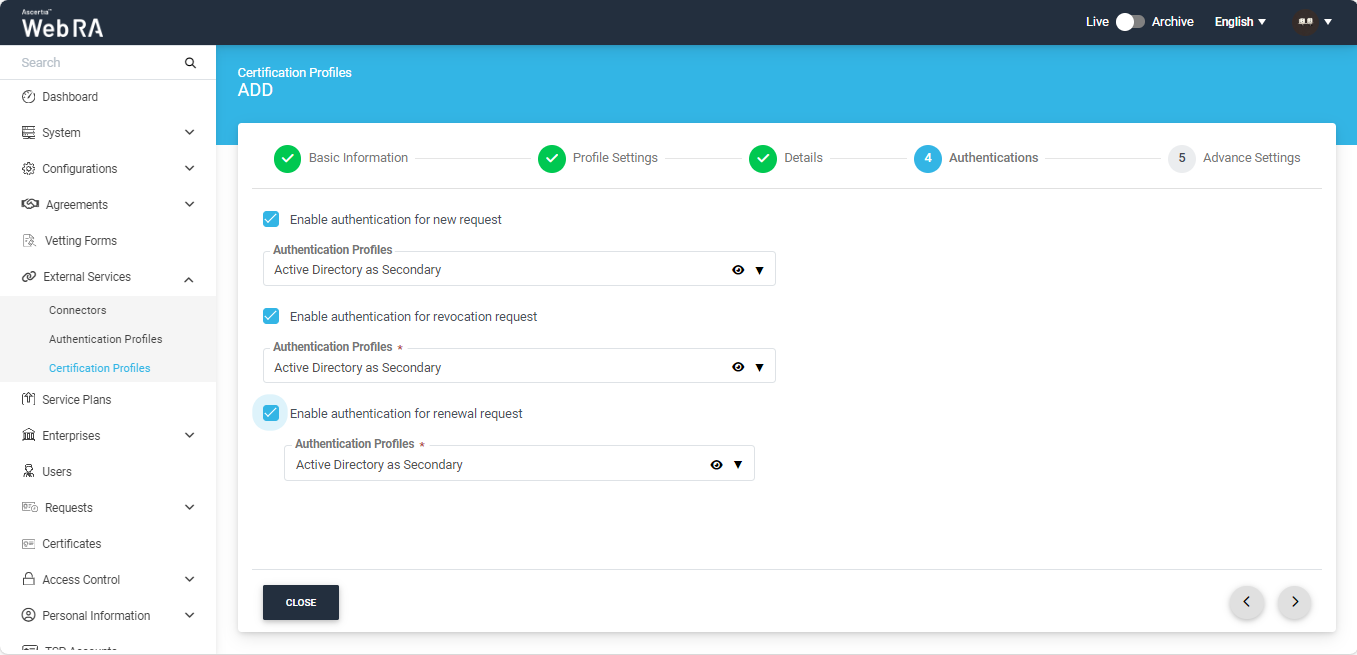

Authentications

An administrator can use any of the available methods (OTP, SAML, Active Directory, Azure Active Directory, or OIDC) for secondary authentications, and can enable authentication for new certificate requests, revocation requests and rekey requests as displayed in the screenshot below:

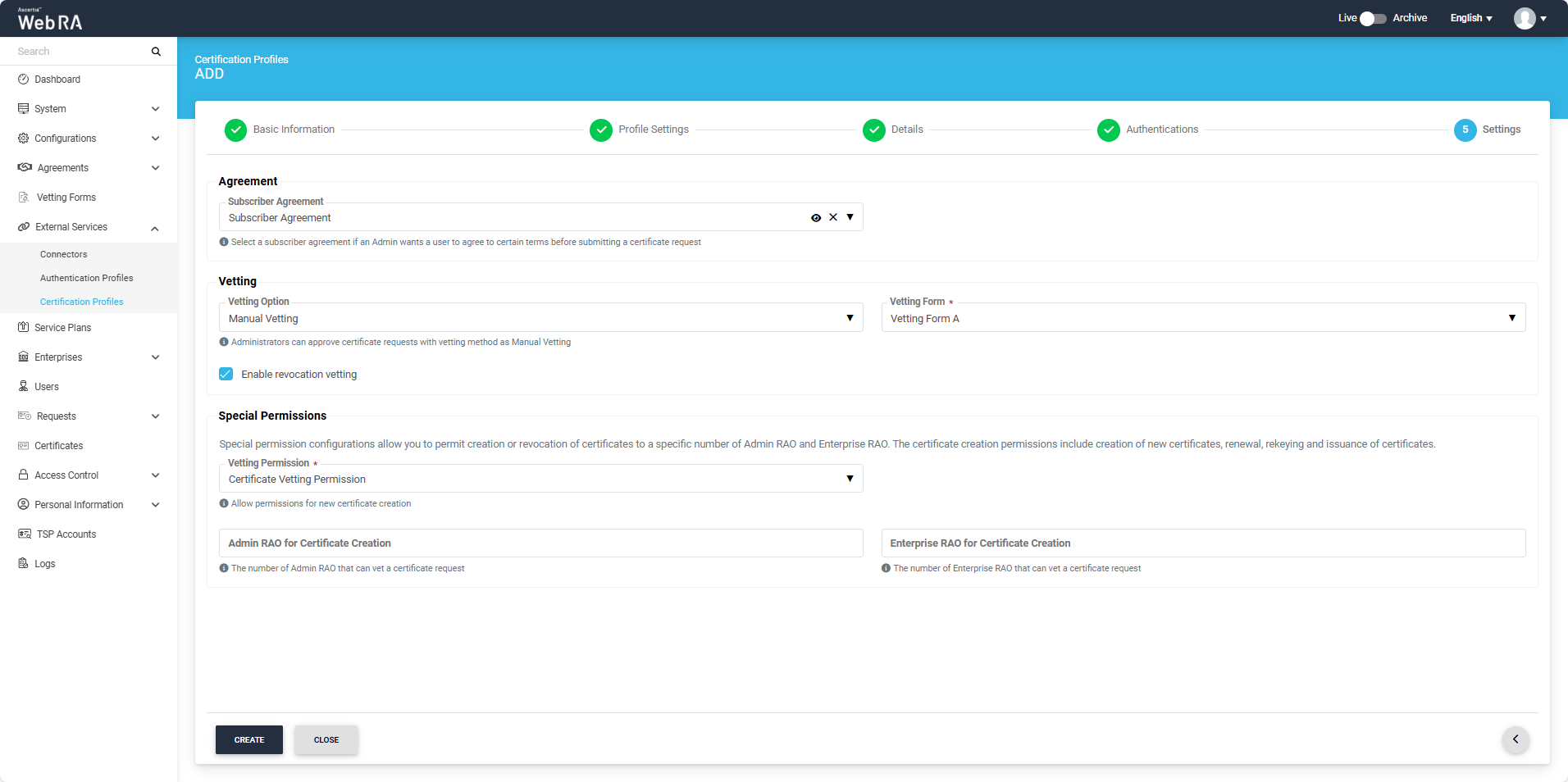

Advance Settings

This screen will allow you to select a subscriber agreement from the respective dropdown.

Vetting can also be applied from the ‘Vetting’ dropdown field.

After making the required changes, click the ‘Create’ button to complete the process of creating a certification profile.

Create a Service Plan

The next step is to create a ‘Service Plan’ in the ADSS Web RA.

• A service plan is a collection of allowed services and certificate types that are assigned to an Enterprise.
• A service plan (s) can be assigned to enterprises only. You cannot assign a Service Plan to the users directly.
• Based on your business requirements you can create multiple service plans to offer different set of certification services to different enterprises.
• You can configure one service plan in multiple enterprises but it is a good practice to create separate service plans for each enterprise if you are a service provider and there are many enterprises registered in the ADSS Web RA application.
• You can also change the service plan for a particular enterprise from the web portal. Click here.

Follow the below-mentioned steps to create a service plan.

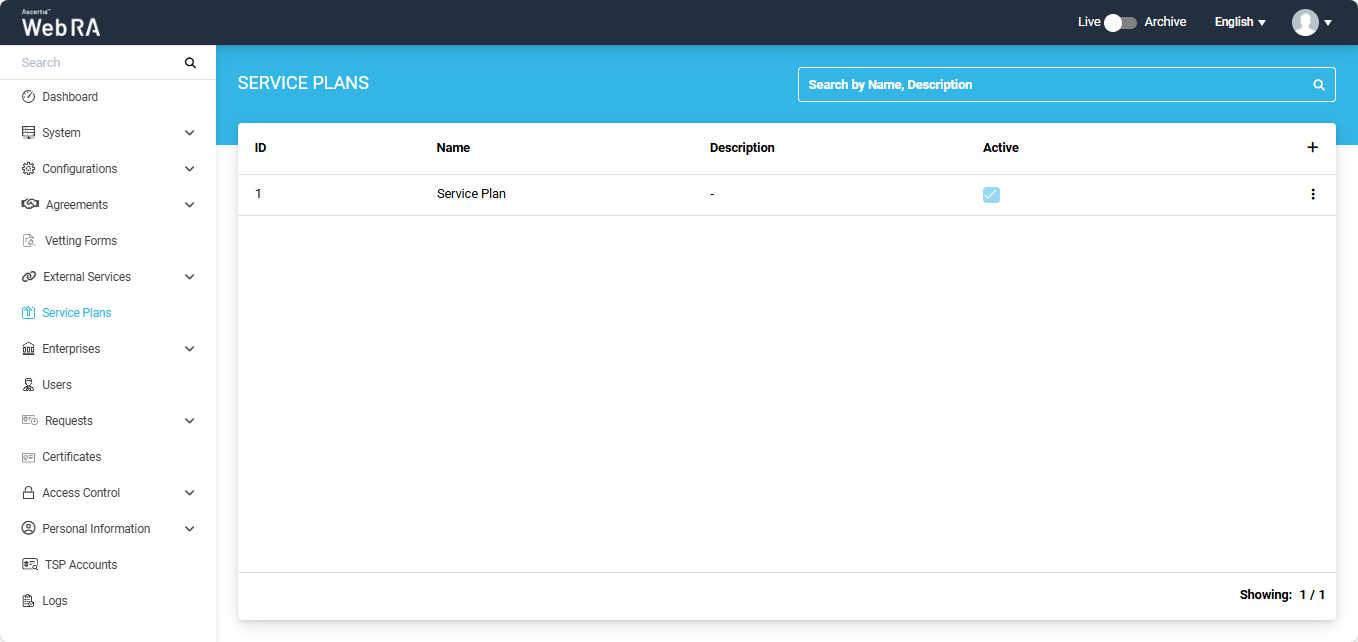

1. Click on the ‘Service Plan’ from the left tree menu
2. Click ‘+’ from the grid header to create a new service plan

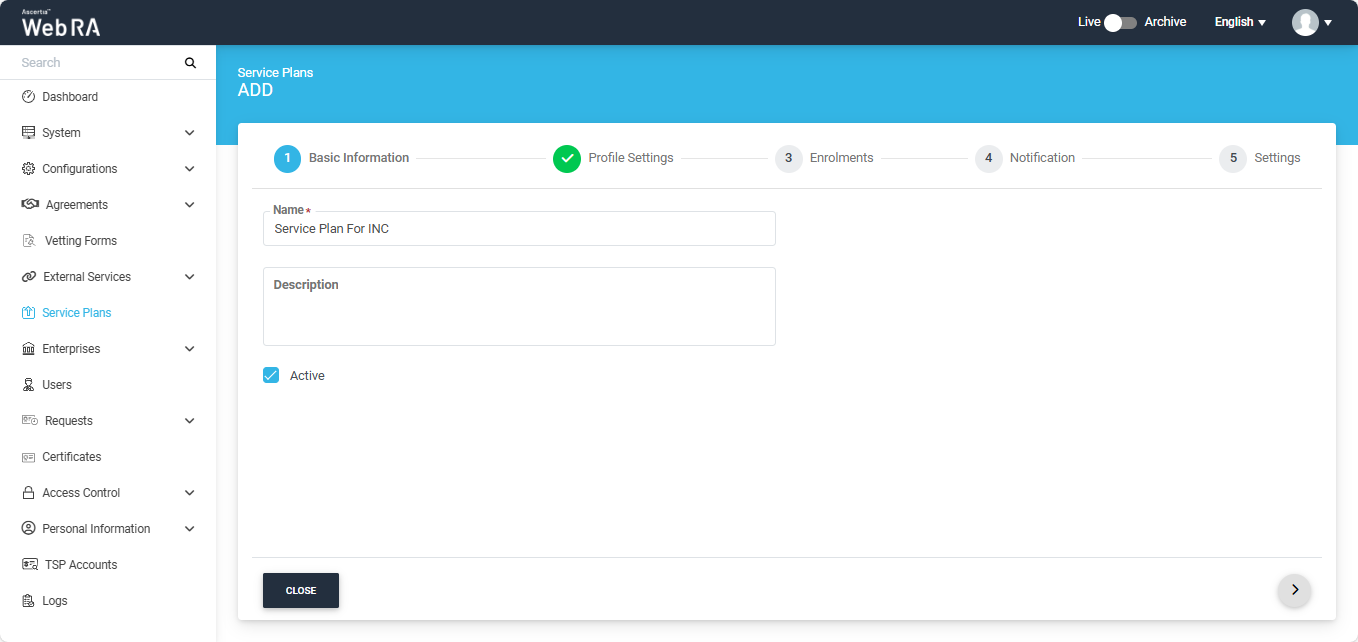

3. A screen titled ‘Add Service Plan’ will appear, allowing you to configure the service plan details. The screen will display a total of five sections: Basic Information, Profile Settings, Enrolments, Notification, and Advanced Settings.

Basic Information

Provide the required information in this section, then click ‘>’.

Profile Settings

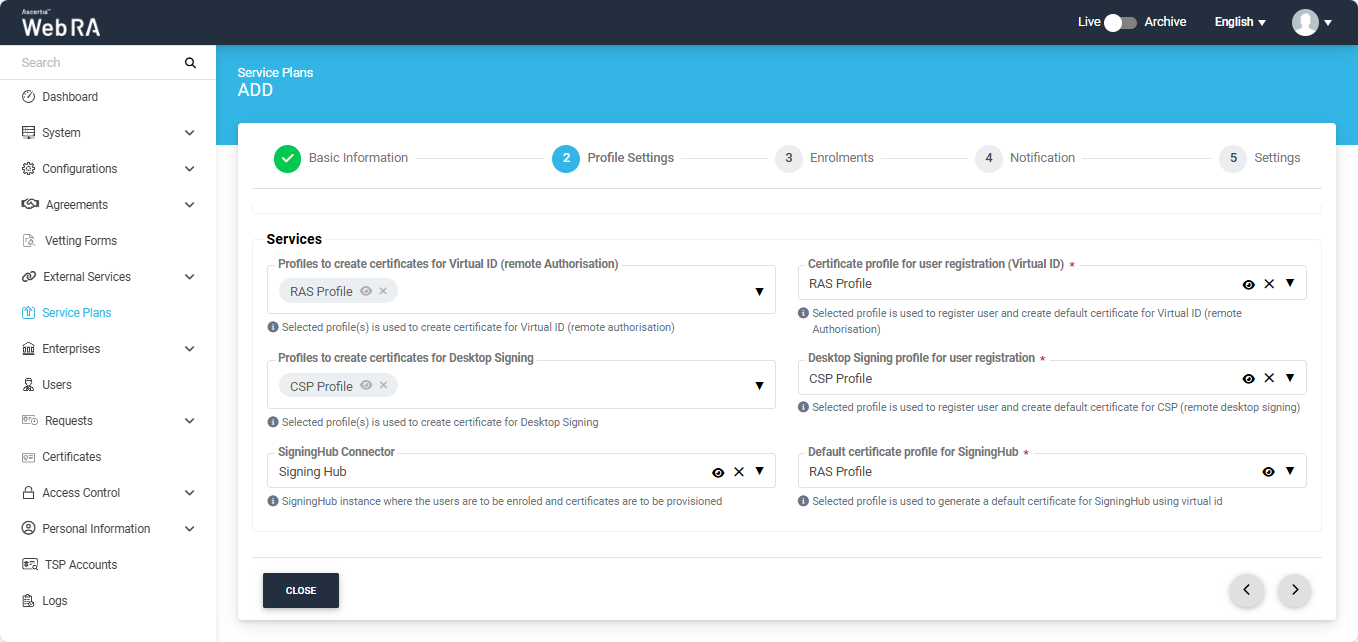

In the ‘Profile Settings’ section, you will have to select the Desktop Signing profile(s) from the ‘Profiles to create certificates for Desktop Signing’ dropdown. You can select multiple profiles from this dropdown to create Desktop Signing certificates.

Meanwhile, from the ‘Desktop Signing profile for user registration’ dropdown, you can set a default profile which will be used to register a default user and generate certificates.

You can select other profiles based on your requirements. Once all selections are made, click ‘>’ to proceed.

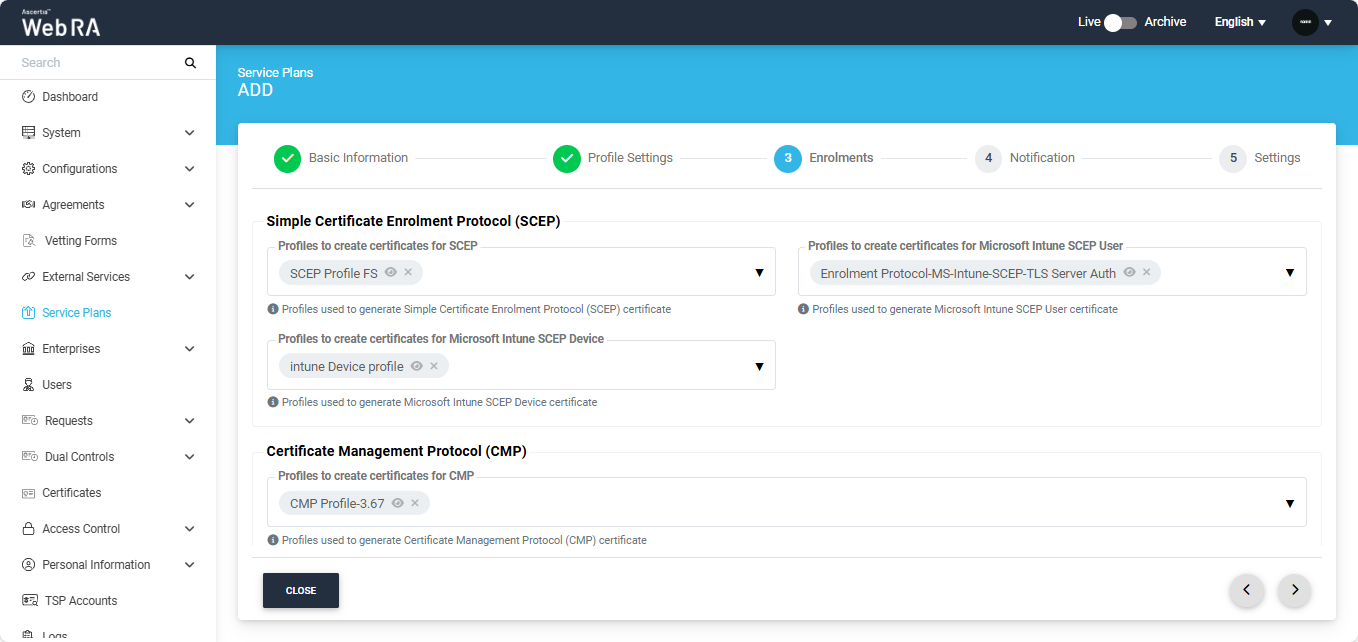

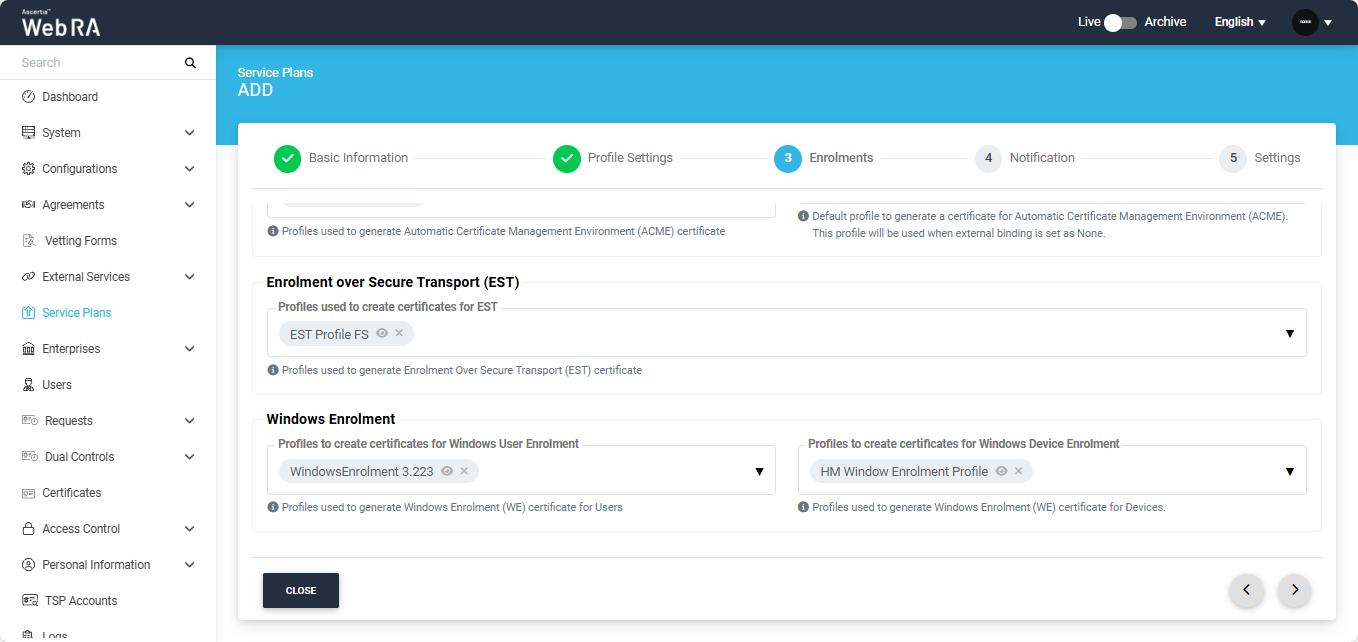

Enrolments

You can select the required profiles for generating certificates on the Enrolments tab. Once all profiles are selected, click ‘>’ to proceed.

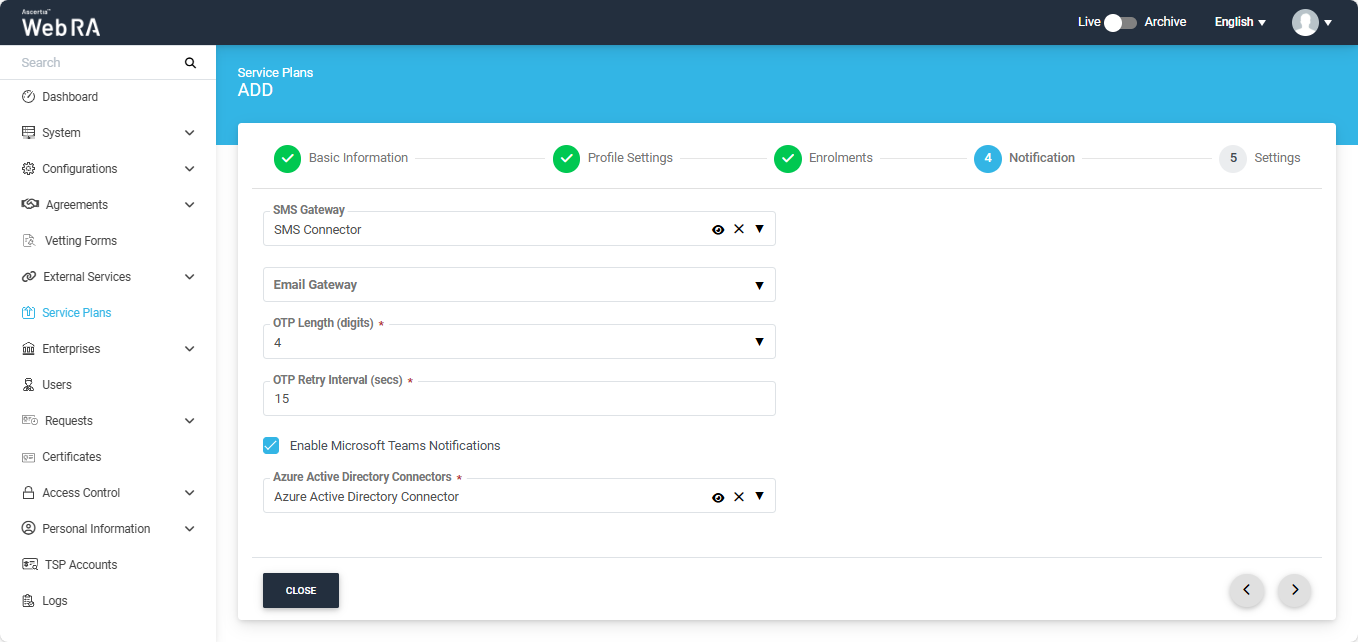

Notification

You can configure SMS Gateway and Email Gateway in the Notification tab. Once you are done with all configurations, then click ‘>’ to proceed.

Advanced Settings

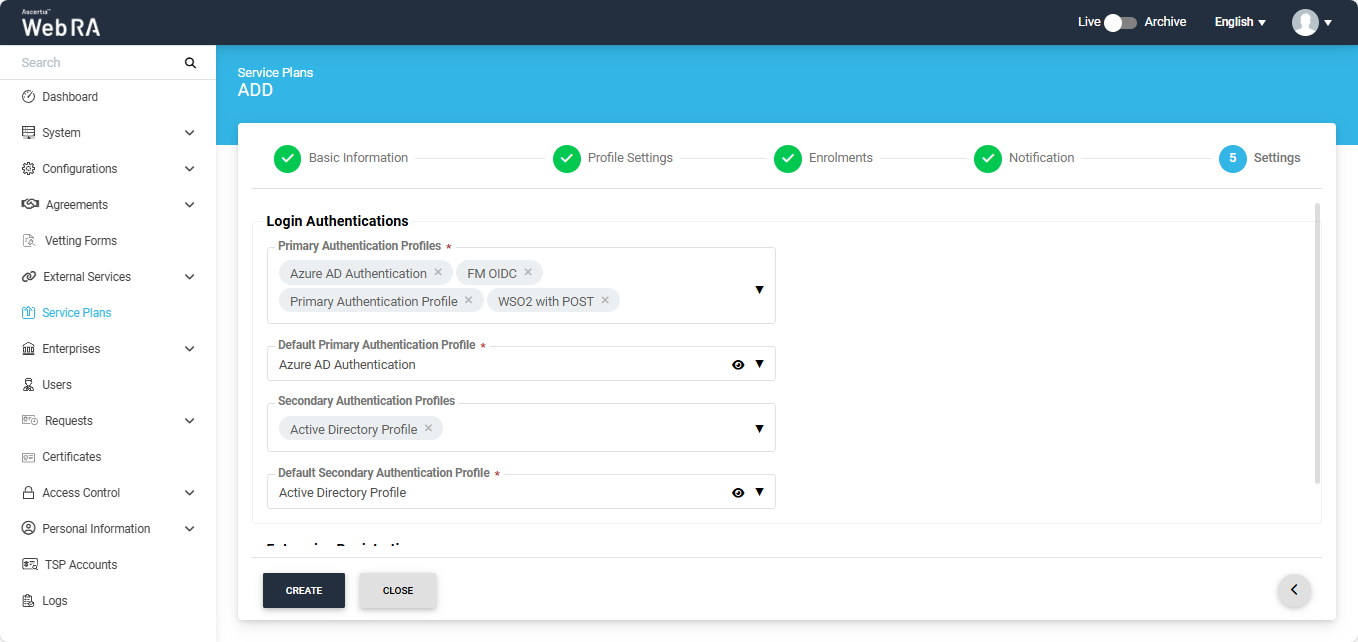

The Advanced Settings screen will display a dropdown named 'Login Authentications', which requires all primary authentication methods to be configured in the system. Here, the user can select one of the following mechanisms for primary and secondary authentication:

A user can configure the following authentication mechanisms in a service plan:

• Email/Password Authentication
• SMS OTP Authentication
• Email OTP Authentication
• Email & SMS Authentication
• SAML Authentication
• Active Directory Authentication
• Azure Active Directory Authentication
• OIDC

After specifying the configurations of each screen, click the ‘Create’ button. A new service plan will be saved and displayed in the ‘Service Plans’ listing. From there, you can edit or delete a service plan, if required.

Note: Primary and secondary authentication profiles mechanisms cannot be the same.

Once you create a service plan, create an enterprise and configure the service plan to it.

Create an Enterprise and Associate the Service Plan with It

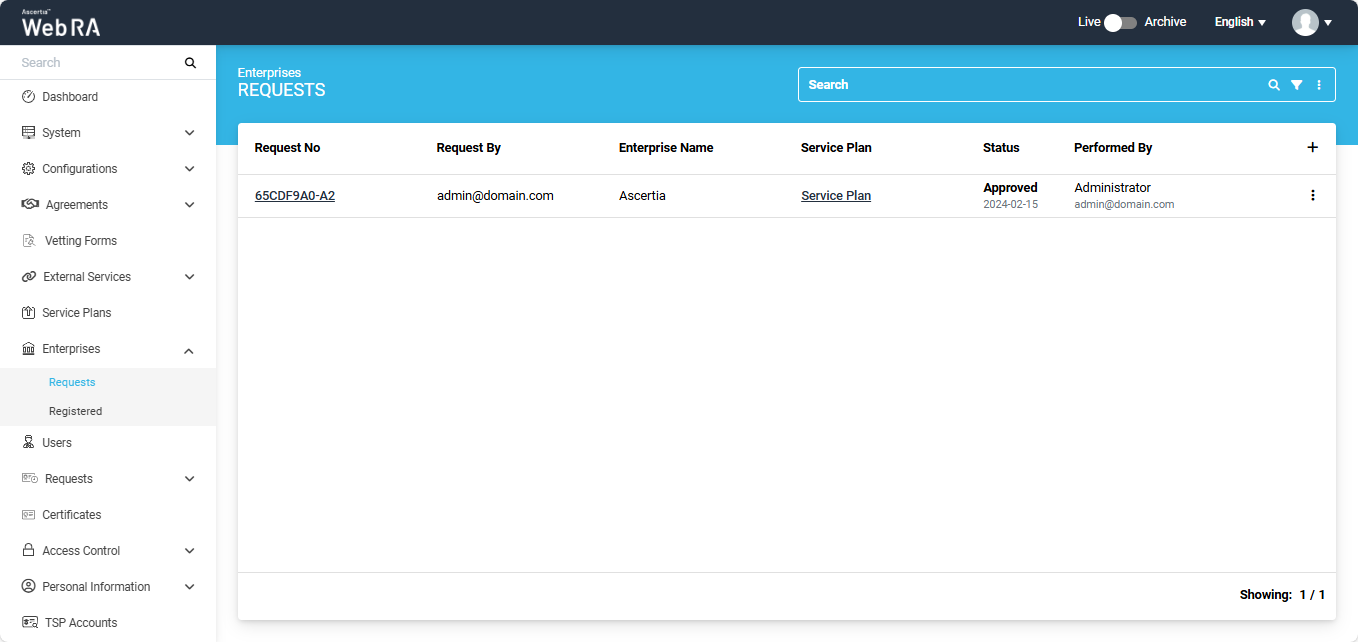

1. Expand Enterprise > Requests from the left tree menu
2. Click + from the grid header as displayed in the screenshot below.

3. An ‘Add Enterprise’ screen will appear with three navigation tabs, including: Organisation Information (where service plan can be assigned), Account Owner and License.

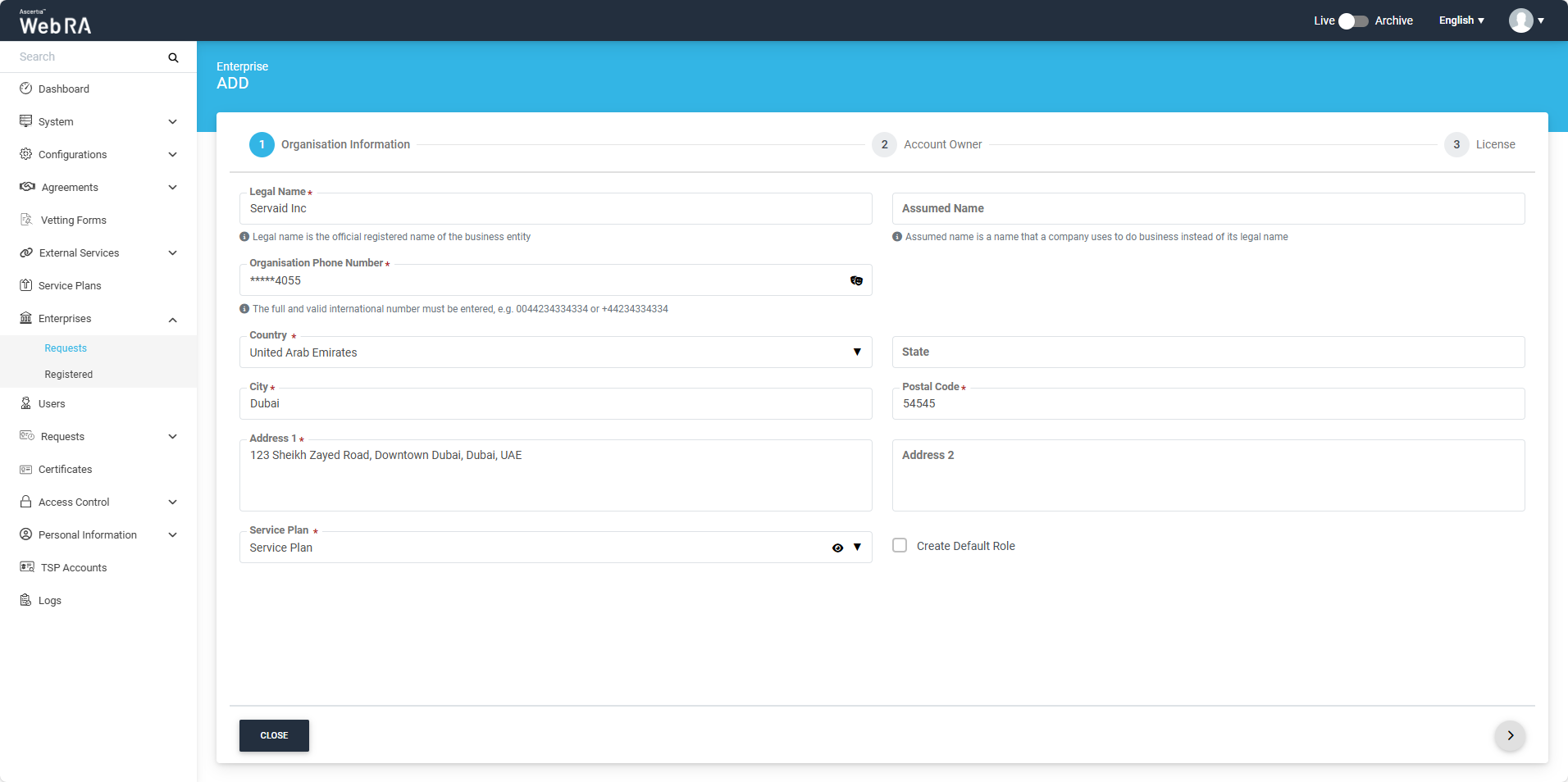

On the ‘Organisation Information’ screen, the following fields will appear:

Fill in the required details and click ‘>’ to proceed.

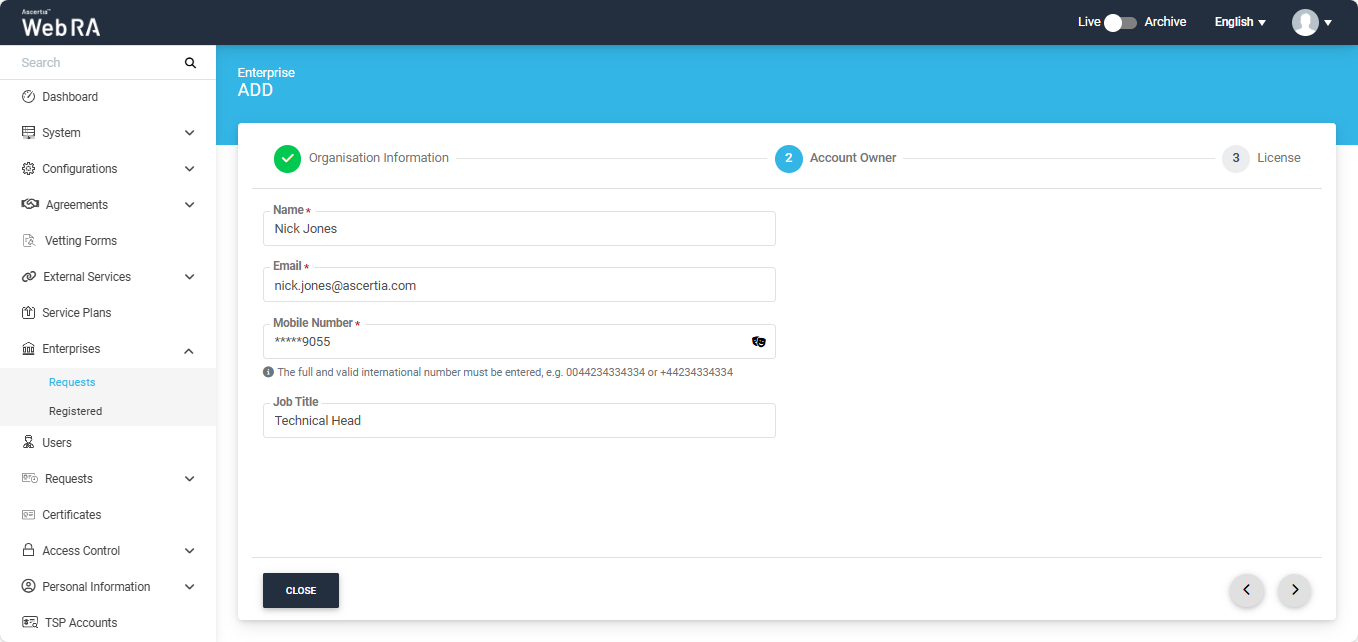

On the ‘Account Owner’ screen, the following fields will appear:

Fill in the details and click ‘>’ to proceed.

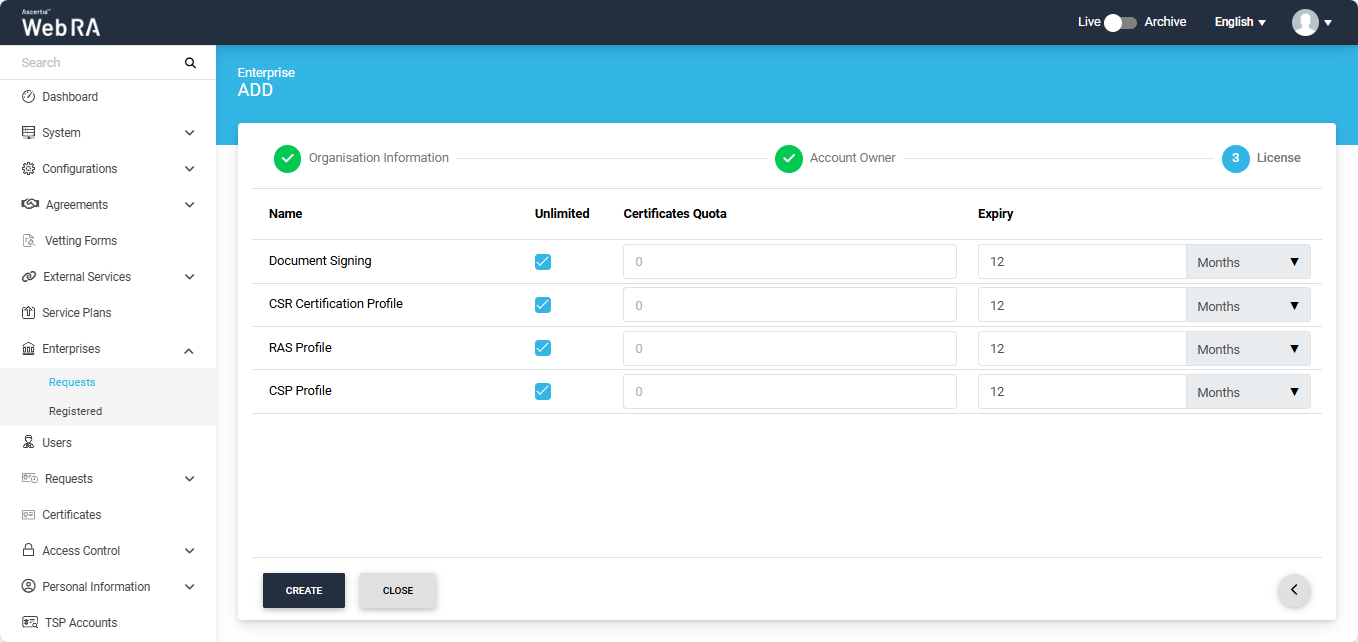

On the ‘License’ screen, you can specify the certificate quota and certificate expiry details. After specifying the details, click ‘Create’ to create an enterprise.

Create a New Role and Assign Profiles to the Role

Navigate to the Roles screen by following the path given below:

Enterprises > Registered > Your Enterprise > Roles

From the Roles screen, the operator can add a new role by clicking on the ‘+’ button.

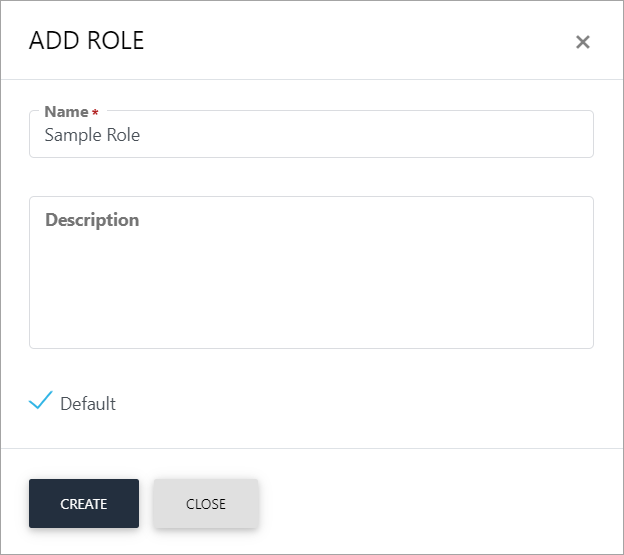

An ‘Add Role’ dialog will appear, allowing the operator to enter the role's name and description. They can also set the role as the default by enabling the ‘Default’ checkbox. After entering the details, click ‘Create’.

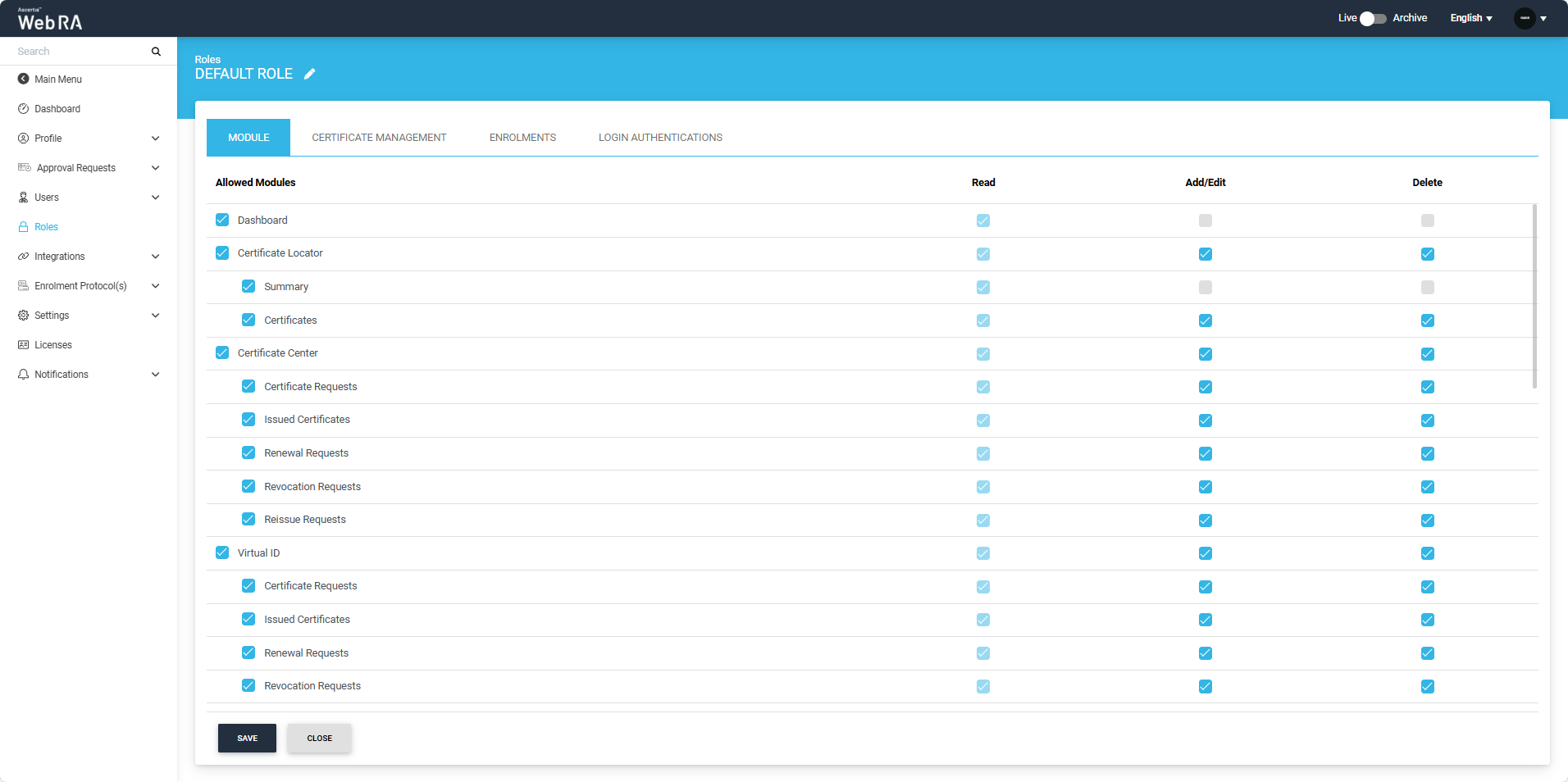

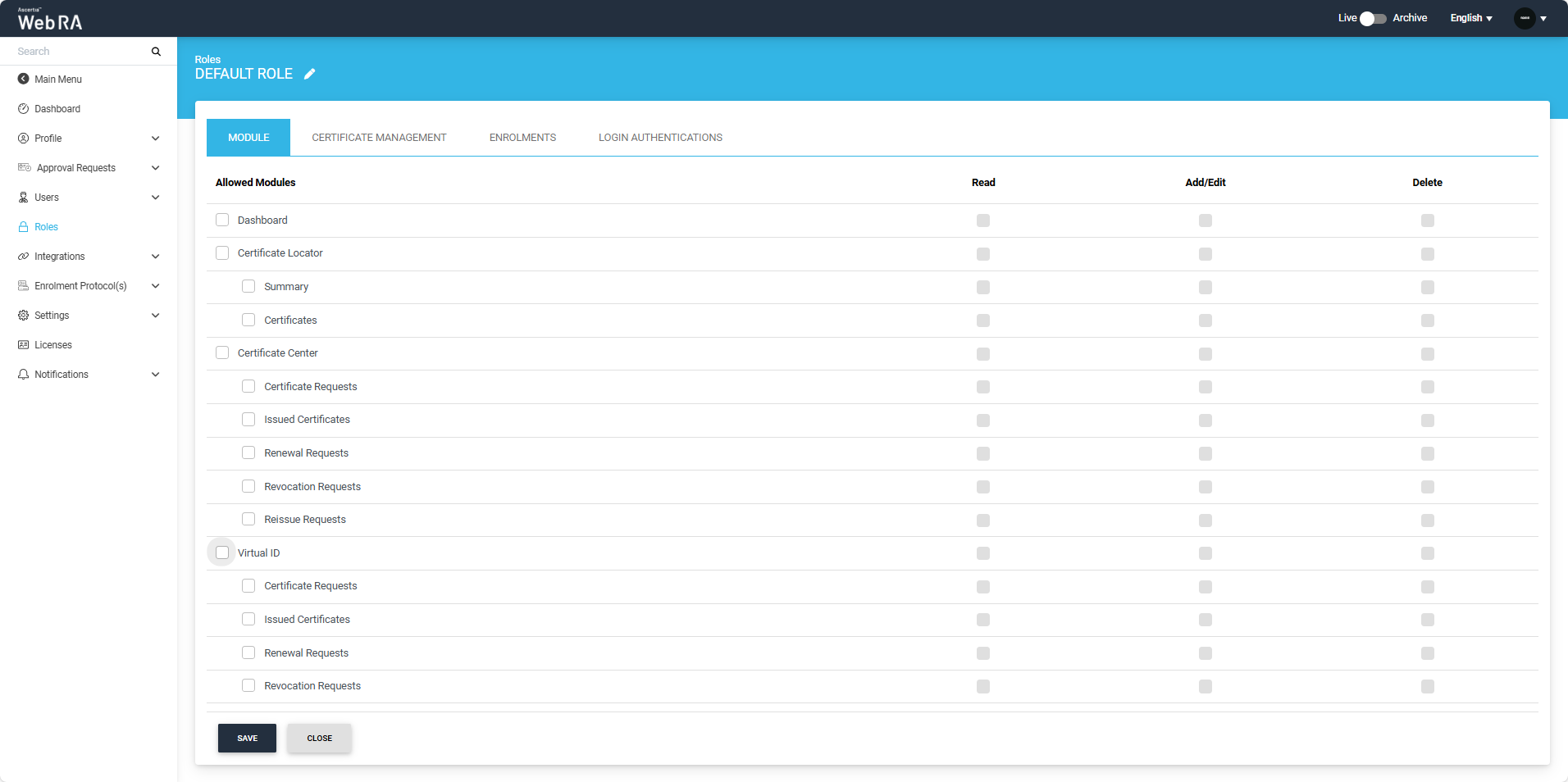

Once an operator adds or edits a role, the ‘Module’ screen appears, displaying all allowed modules. The operator can choose to allow read, add/edit, and delete options for these modules at their discretion.

The following sections will appear under the ‘Roles’ screen:

• Module
• Certificate Management
• Enrolments
• Certificate Access
• Login Authentications

After allowing the required modules under the respective role, click the ‘Certificate Management’ tab.

Click ‘Save’ after making the configuring the required settings.

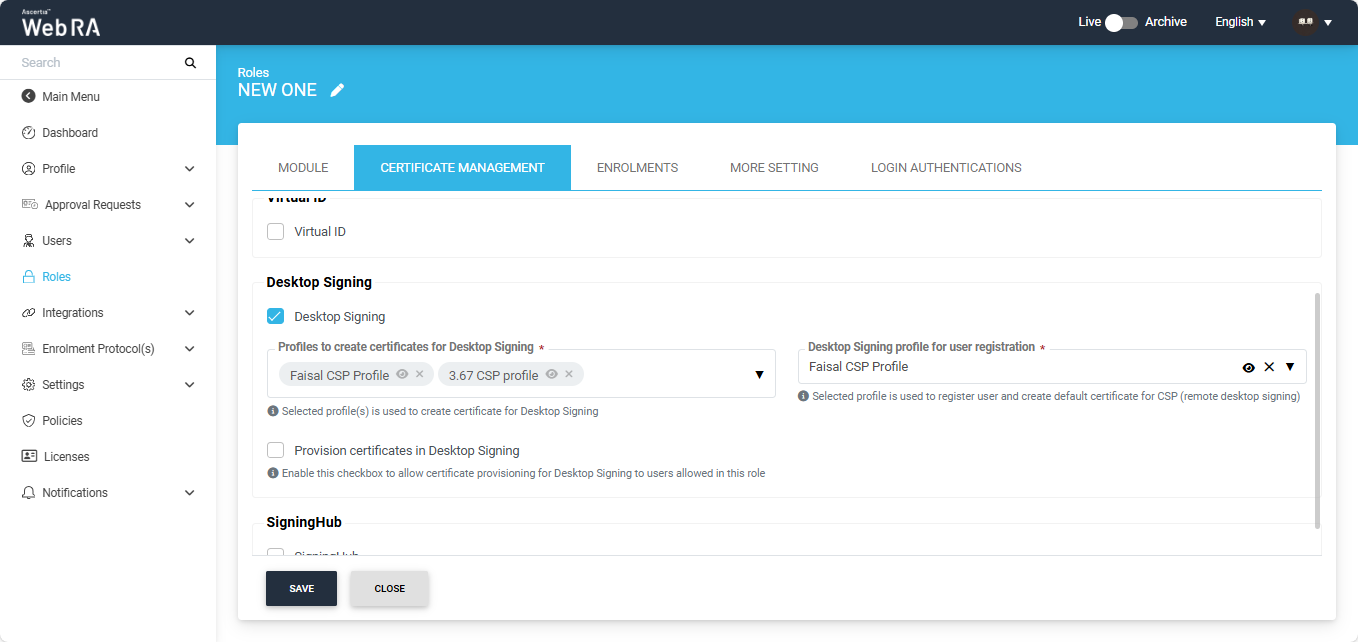

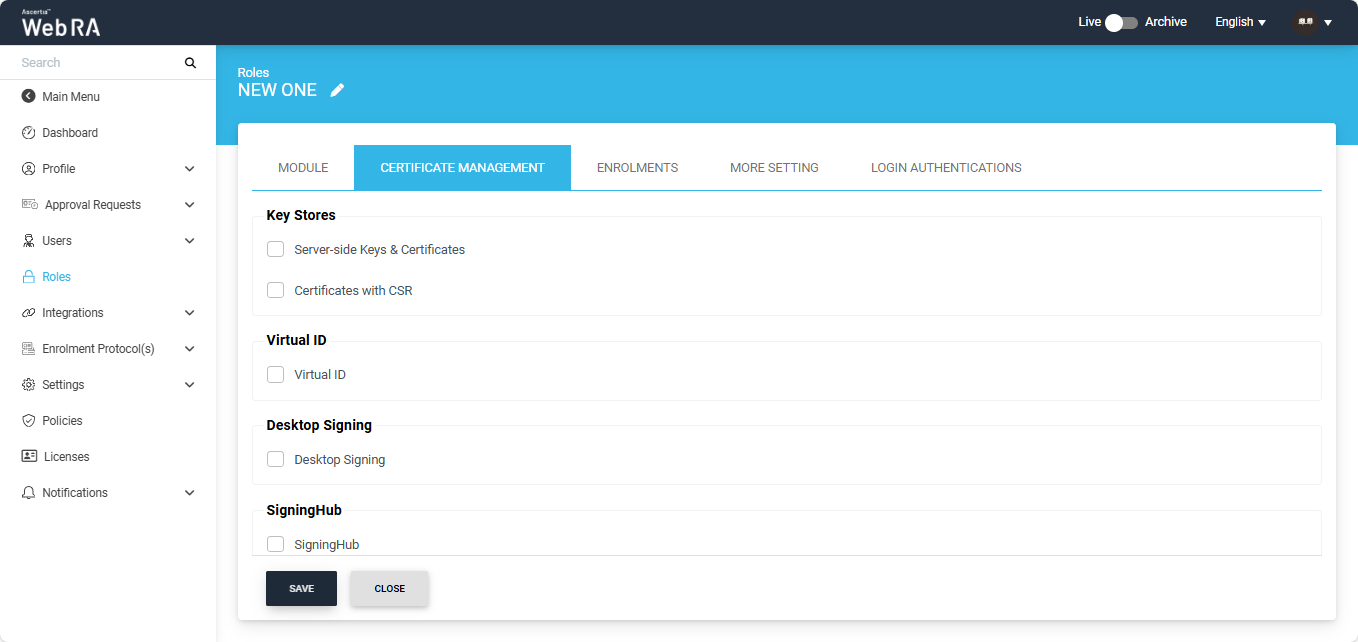

After allowing the required modules, navigate to the ‘Certificate Management’ tab.

On this screen, navigate to the Desktop Signing section and enable the ‘Desktop Signing’ checkbox.

Then, select the profile(s) that will be used to create certificate for Desktop Signing. Also select the profile that will be used for user registration from the respective dropdown.

Enable the ‘Provision certificates in Desktop Signing’ checkbox, if you want to provision the certificates after they have been created.

After making all the required changes, click ‘Save’.

Invite a New User

Once the new enterprise is created, it will appear in the ‘Registered Enterprises’ list. Navigate to Enterprises > Registered, then click on the enterprise name you registered. The system will direct you to the enterprise management screen.

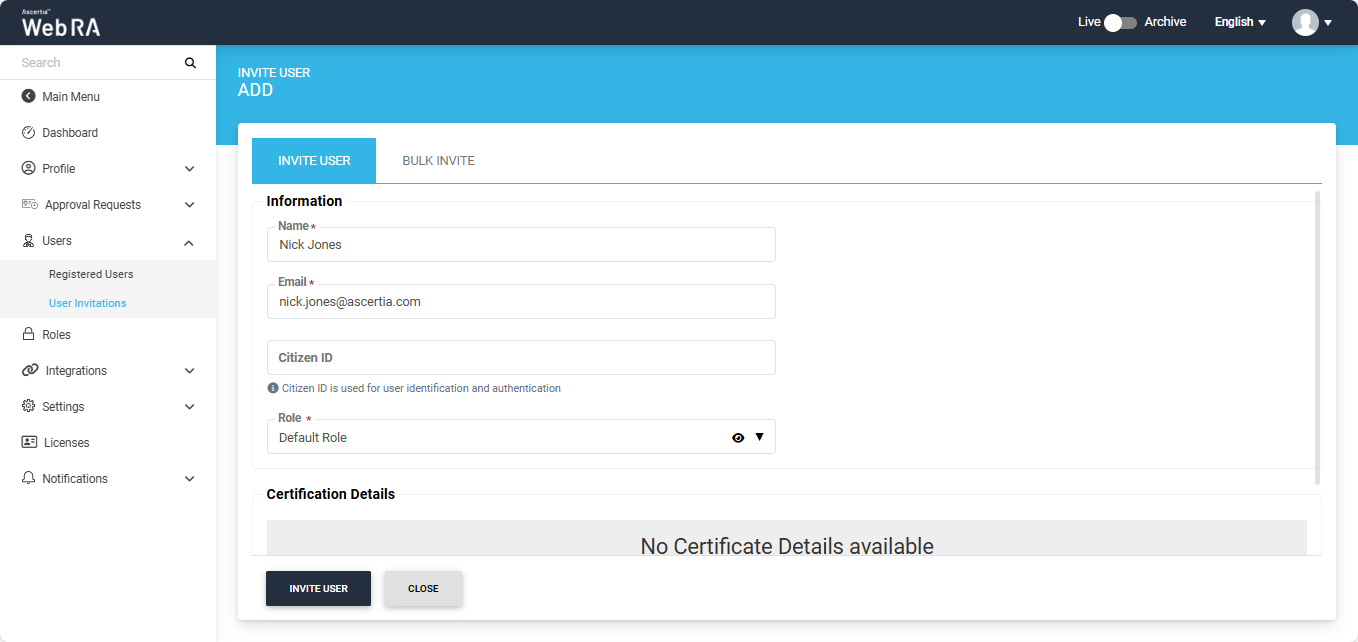

Then, Expand Users > User Invitations, the ‘Invite User’ screen will appear.

Add the ‘Name’ and ‘Email’ of the user you want to invite to the enterprise.

Select the ‘Role’ for the new user, then click ‘Invite’.

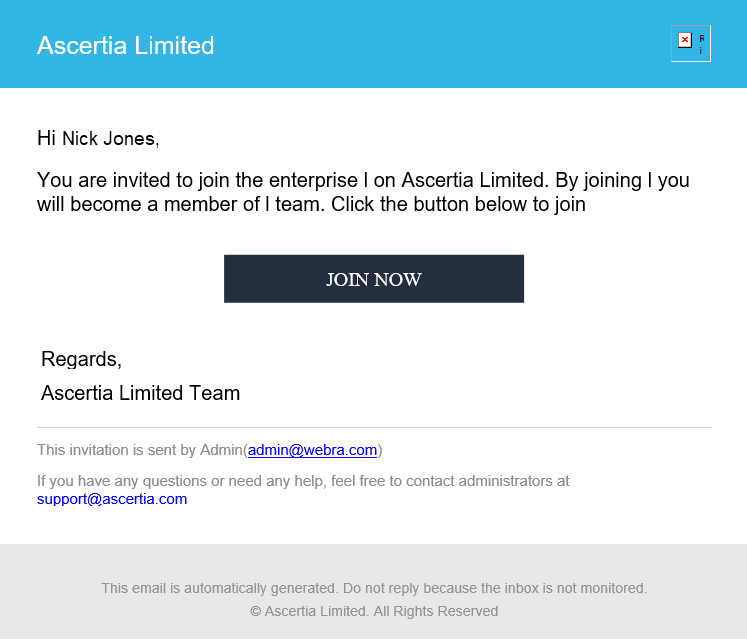

An email will be sent to the user on the above configured email address. (As displayed below) Click Join Now.

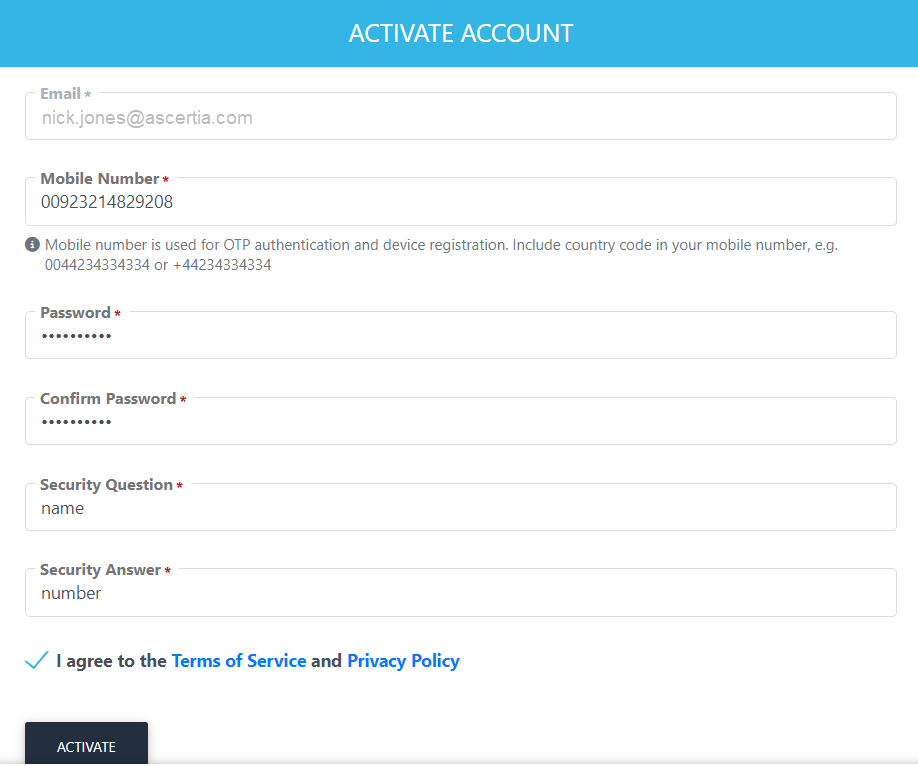

The user will be redirected to the ADSS Web RA web portal’s account activation screen. Enter the following details:

• Email: The user's email address for registration on the web portal.
• Mobile Number: The user's mobile number.
• Password: Set a password for the login email.
• Confirm Password: Re-enter the password to confirm it.
• Security Question: Choose a security question for password recovery.
• Security Answer: Provide an answer for the selected security question.

After entering all the details, select the ‘I agree to the Terms of Service and Privacy Policy’ checkbox and click ‘Activate’.

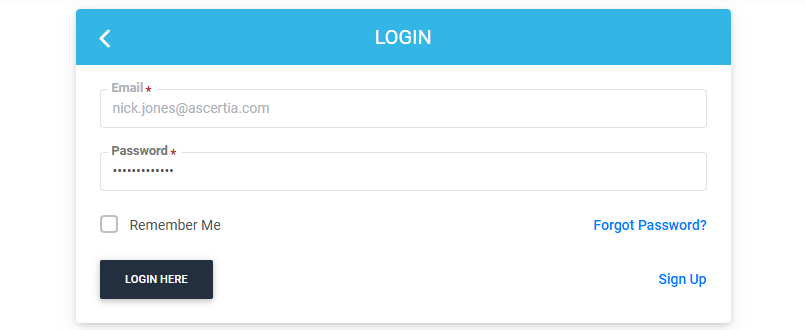

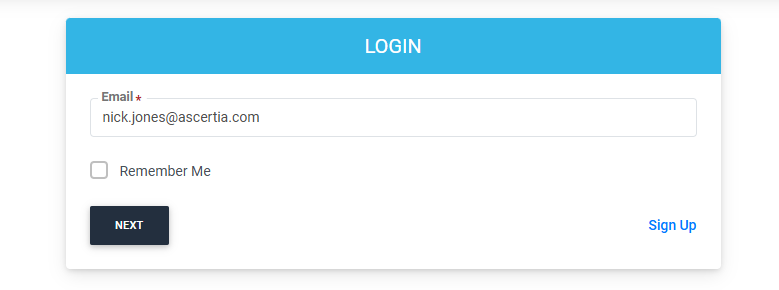

The user will then be directed to the Login screen. Here, enter the user email and click ‘Next’.

Enter the Password and click ‘Login Here’ button.

Create a Desktop Signing Account in ADSS Web Portal

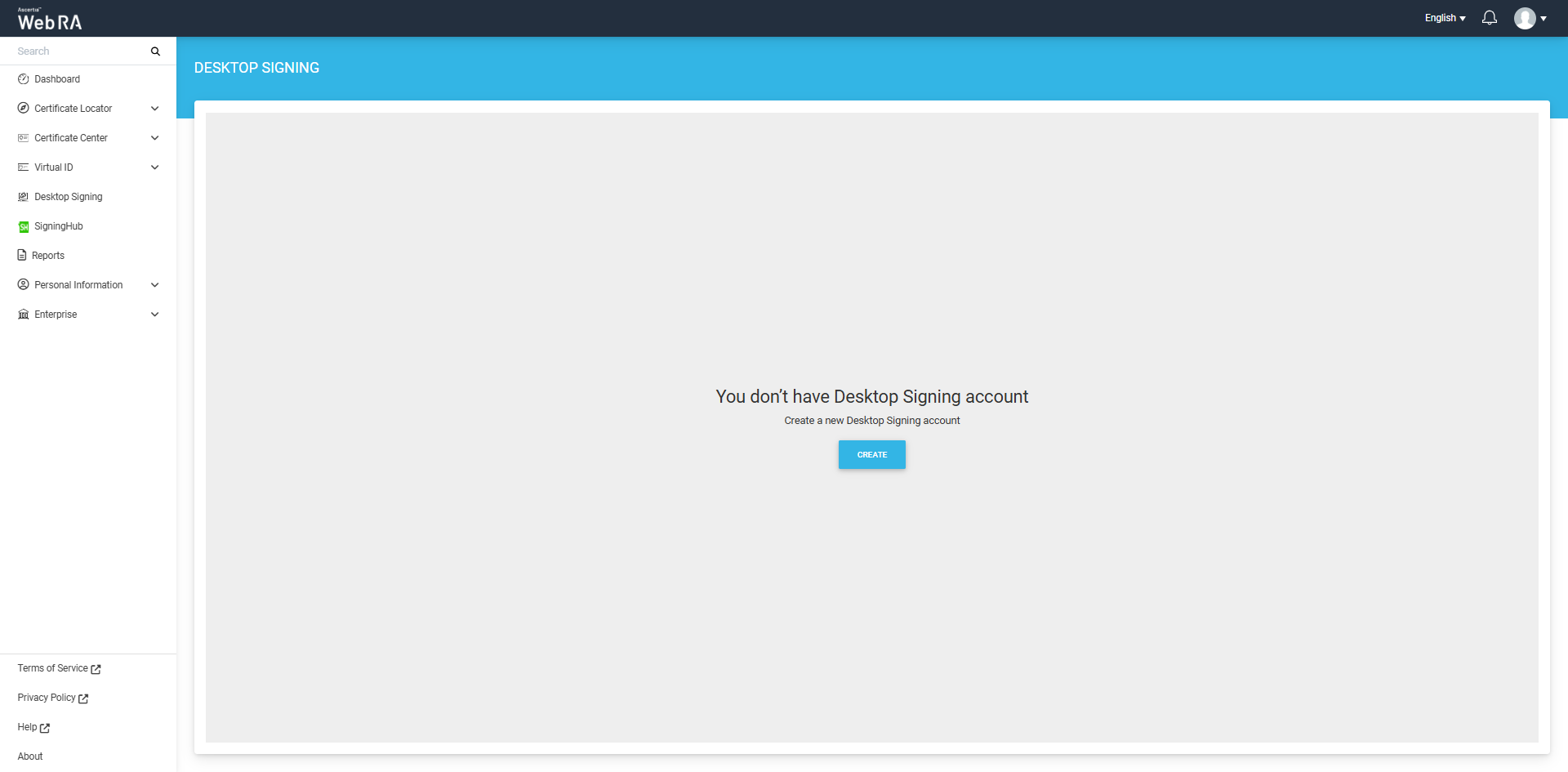

Navigate to the ‘Desktop Signing’ tab from the left menu in the ADSS Web Portal.

Click on "Create" to set up a new Desktop Signing account for the first time.

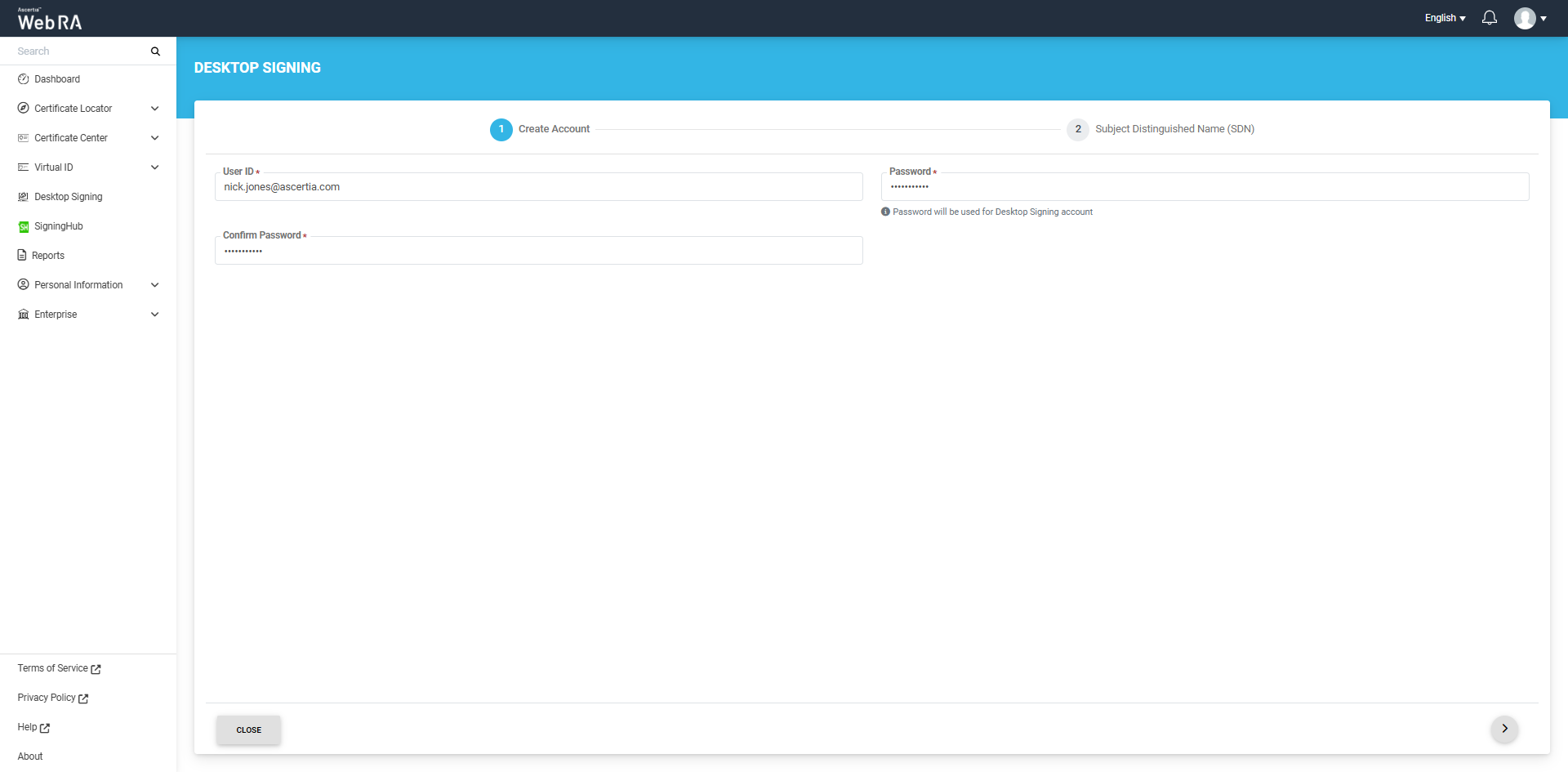

On the 'Create Account' screen, enter your user ID and password. Click 'Next' after confirming your password.

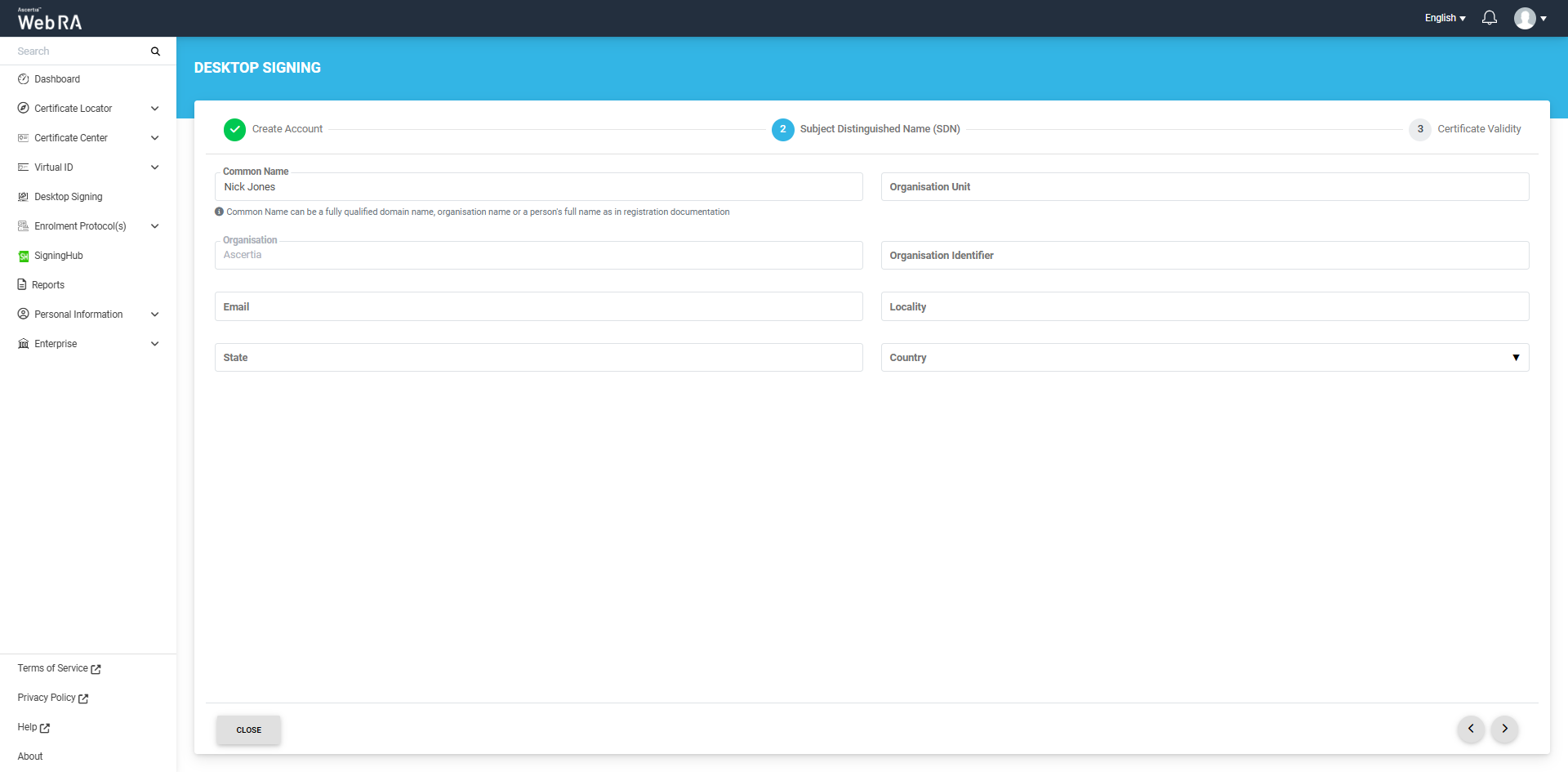

On the Subject Distinguished Name (SDN) screen, enter the common name and address details, then click next.

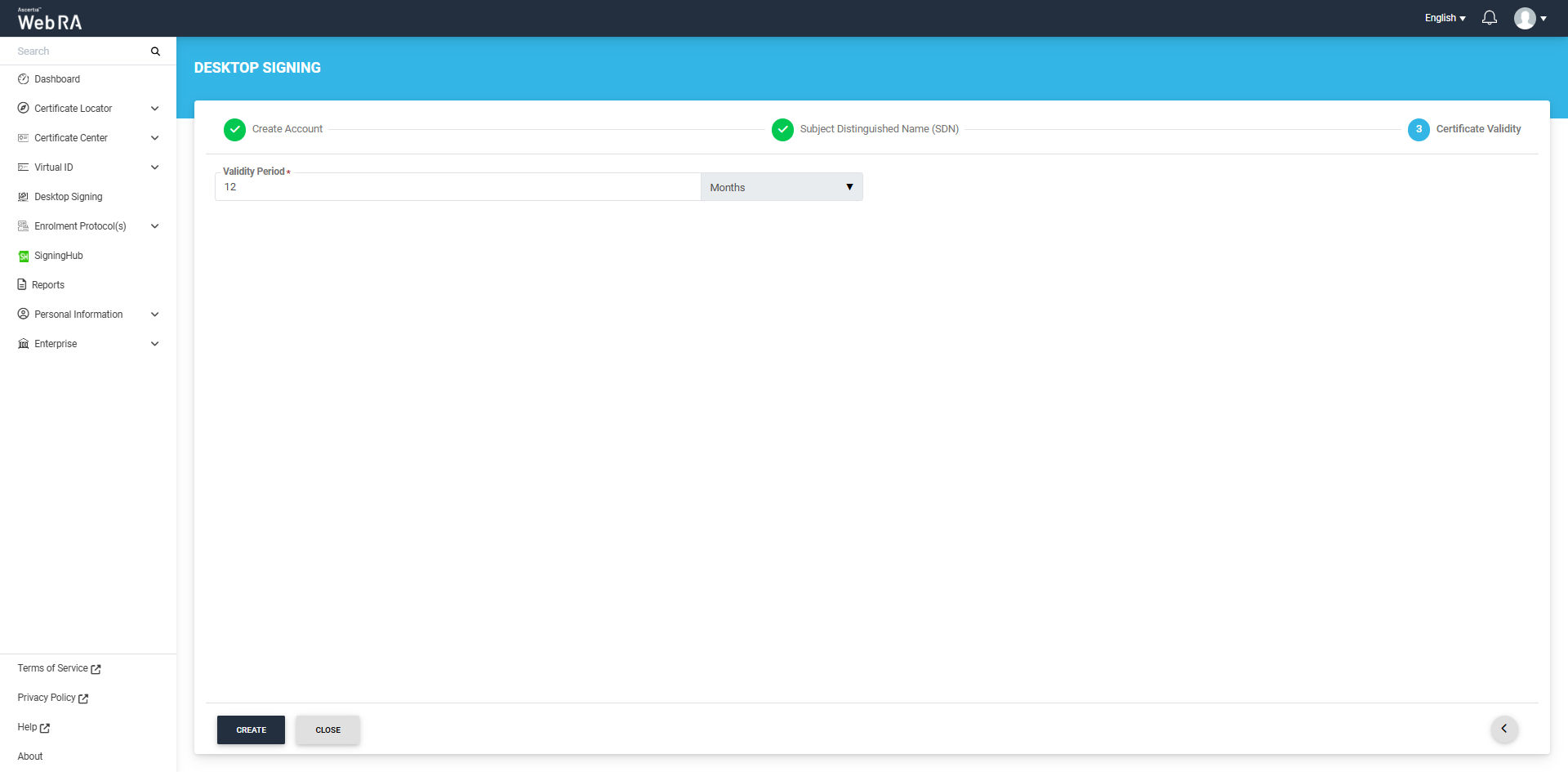

Next, you will be required to select a validity period for the Desktop Signing certificate.

After specifying the validity period, click the ‘Create’ button. The system will create your account, generate your Desktop Signing certificate and download it in your system.

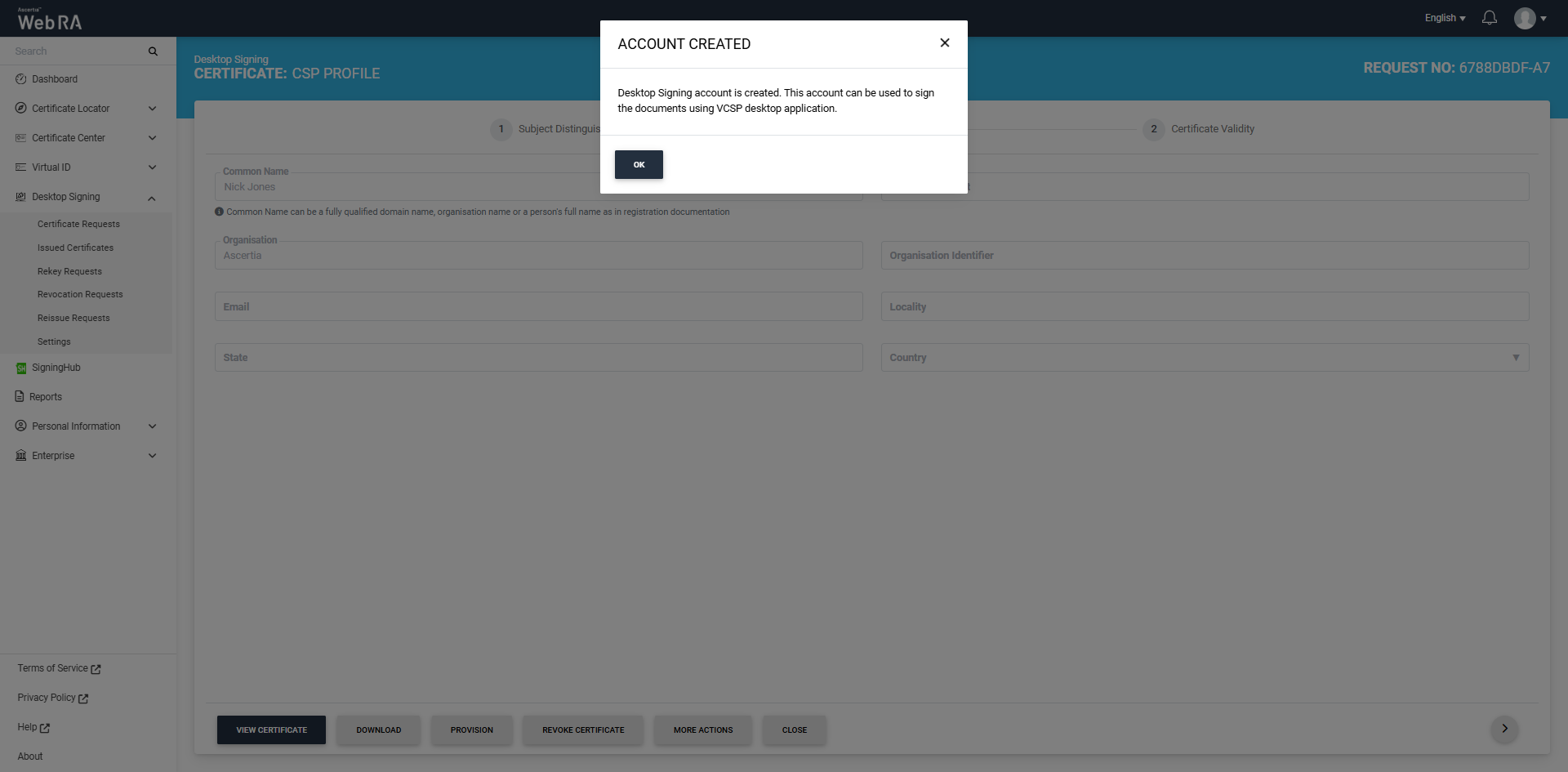

A dialog will also appear on the screen, confirming that the account has been created and can be used to sign documents using the VCSP desktop application.

Click ‘Ok’ to close the dialog.

You can also view certificate information on this screen by clicking on the ‘View Certificate’ button and perform the following options:

• Download
• Provision
• Revoke Certificate
• More Actions (Rekey/Renew Certificate, Recover Key)

A certificate request with an approved status will appear under the "Certificate Requests" list. You can review the request details and also view or download the associated certificate. The same certificate will also appear under the "Issued Certificates" list.

Moreover, if allowed in the user role, desktop signing certificates will be automatically provisioned after they are created. These certificates can then be used to sign documents. Users can view the count of provisioned certificates in the 'Settings' tab.

Create a Desktop Signing Account Without Certificate

If the ‘Configure Certification Profile’ option is disabled in the certification profile, the Desktop Signing account will be created without its certificate in the Web RA system.

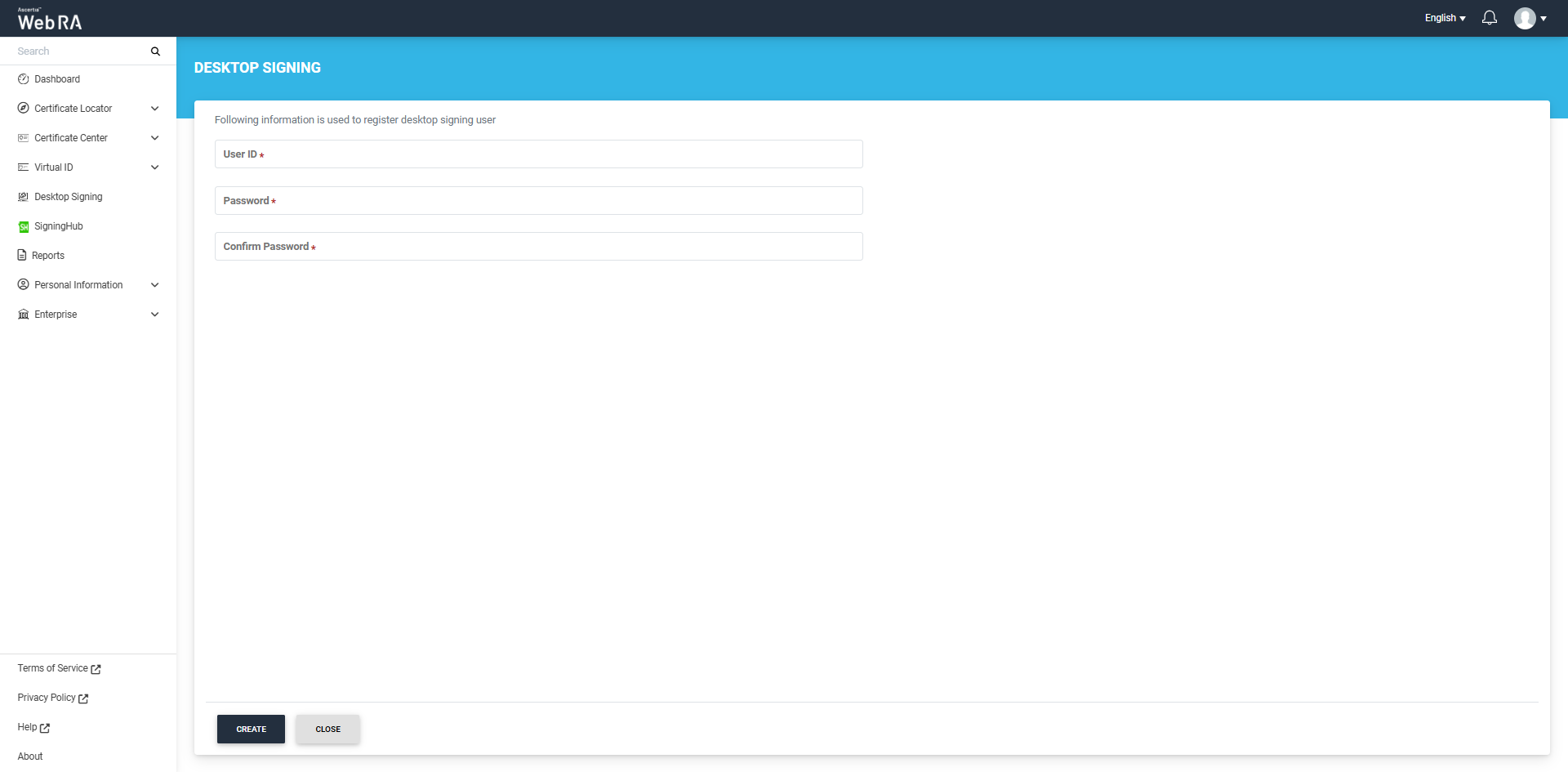

Navigate to the Desktop Signing tab from the left menu in the Web RA web portal, and click on ‘Create’ button.

The system will display three text fields on the screen, including:

• User ID
• Password
• Confirm Password

Enter the required details and click ‘Create’ button to create your Desktop Signing account.

The Desktop Signing user will be created in the Web RA system and the ‘Settings’ screen will appear.

Desktop Signing from VCSP Application

All certificates generated and provisioned for Desktop Signing can be used within the VCSP Desktop application to securely sign documents.

The VCSP application enables remote signing directly from your desktop, securely managing certificates and allowing seamless document signing without needing to upload files to a hosted service.

Using VCSP, you can select your certificate while working in applications like Microsoft Word, PDF files, etc. Once you initiate a signing request, the application connects to the Go>Sign Mobile app for secure authorization, and the document is signed instantly.

How to Sign Documents Using the VCSP Application

To sign documents using the VCSP application, follow these steps:

1. Extract the VCSP Package

Extract the VCSP package you received to get access the VCSP setup files.

2. Install the VCSP Application

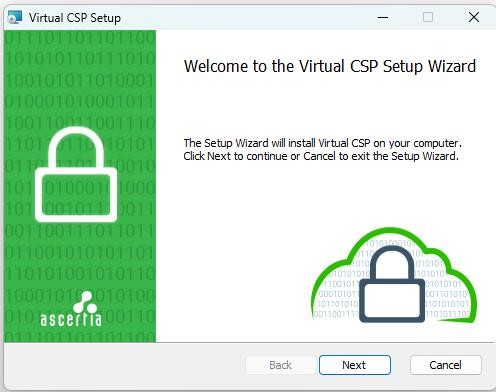

Install the Virtual CSP application by running the ‘Virtual CSP’ setup file. Double-clicking the setup file will open the setup dialog, where you can complete the installation.

3. Configure the VCSP Application

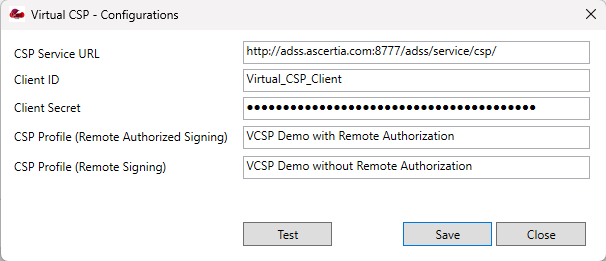

After installation, provide the configuration details in the ‘Virtual CSP – Configurations’ file. For that, navigate to “C:\Program Files (x86)\Ascertia\Virtual CSP”, then double-click the ‘VirtualCSP.Configuration’ file to access configuration dialog.

Enter the required details in the designated fields.

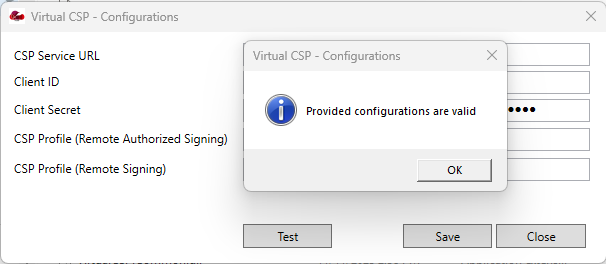

Click the ‘Test’ button to verify if the details you entered are valid and functioning. If the details are correct, a dialog will appear confirming that the configurations are valid.

4. Log in to VCSP

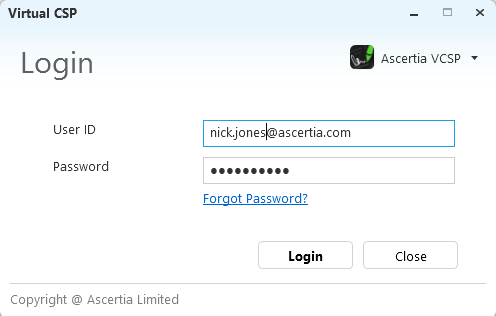

Once the configurations are complete, log in to the VCSP application using your Desktop Signing account credentials. You can access the VCSP login window from the VCSP application icon on your Desktop.

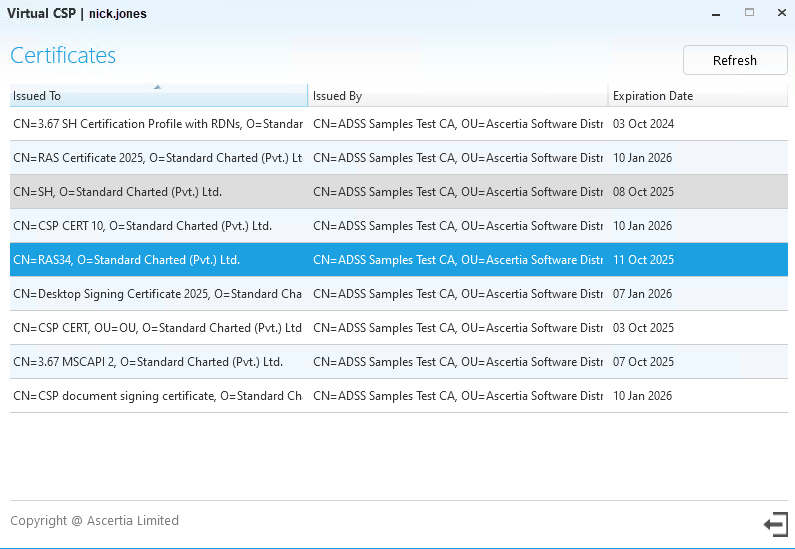

5. Certificates Listing

After logging in, the VCSP application will display a list of all provisioned certificates in desktop signing account.

Note: To use a certificate for document signing, make sure you have installed the certificate along with its root certificates on your system and built the trust chain.

6. Open the PDF Document

Open the PDF document you want to sign in Adobe Acrobat. Navigate to All Tools > Use a Certificate, and click on the ‘Use a Certificate’ option to view its sub-options.

7. Select Digitally Sign

From the sub-options, select ‘Digitally Sign’ and draw a signature field in your desired location within the PDF document.

8. Choose a Digital ID

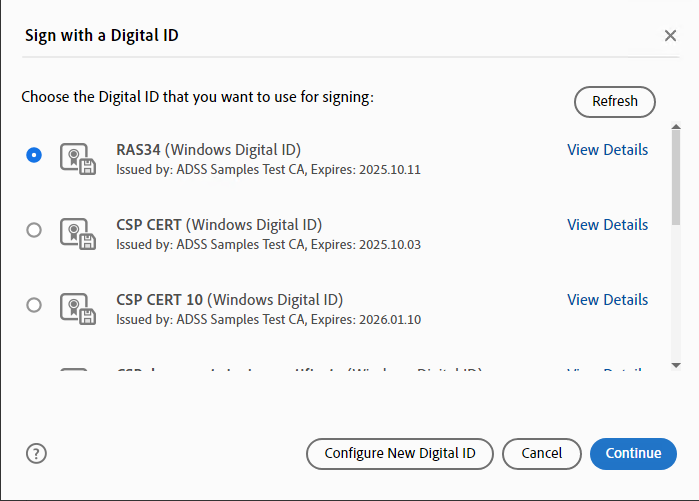

A dialog titled ‘Sign with a Digital ID’ will appear, displaying all available certificates. Choose the digital ID you want to use for document signing and click ‘Continue’.

9. Authorise the Signing Request

The VCSP application will send a signing request to the Go>Sign Mobile app for authorization. Install the Go>Sign Mobile App, configure it and register the device, then approve the request under the "Remote Authorization" section.

10. Signing Completed

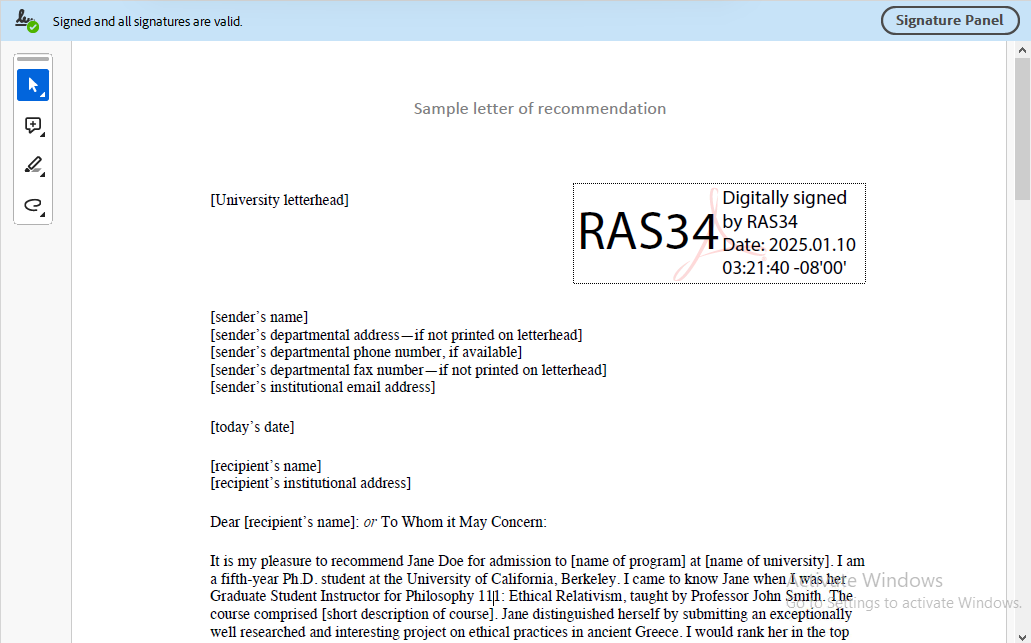

Once the signing request is authorised via the Go>Sign Mobile app, the document will be Signed successfully. The signature field in the PDF document will display the certificate name along with the date and time of signing.

Note: If Remote authorisation is not configured on ADSS Server, the document will be signed automatically once you select the digital ID.

Install and Set Up Go Sign Mobile App

Install the App

• Download and install the Go>Sign Mobile app from the Google Play Store.

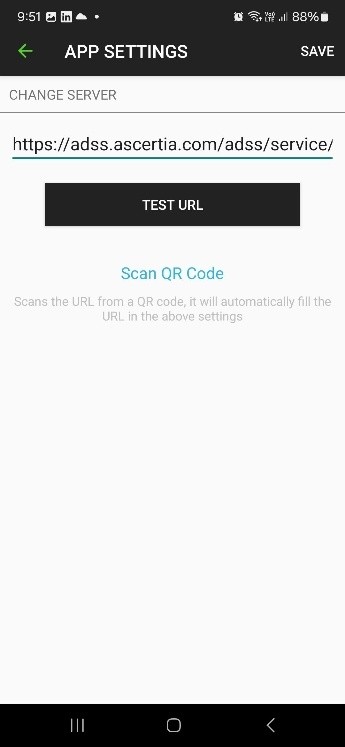

Configure Server Settings

• Open the app and tap on the 'Settings' icon.

Enter the ADSS Server Instance URL for the RAS Service.

Test the connection to ensure it’s working, then tap Save. If the connection is working, a confirmation text will appear after you click on the ‘Test URL’ button.

Register the Device

Register the device by providing the email address associated of the SAM-registered user in the ‘User ID’ text box.

Authorise Document Signing

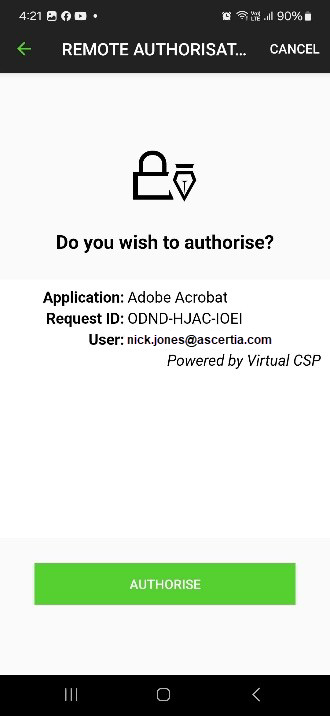

When prompted for document signing approval via VCSP, authorize the signing request directly from the Go Sign Mobile App.

Configuration of CSP on ADSS Server for Document Signing Using Remote Authorisation

To virtually sign documents using the remote authorisation method, you must first configure CSP in ADSS Server. This configuration ensures secure communication between WebRA and ADSS Server, enabling remote signing operations.

To complete the CSP configuration in ADSS Server, you need the following:

• A CSP Profile must be created from the ADSS CSP Service. For more details, view CSP Profiles section in ADSS.
• A SAM Profile must be created from the ADSS SAM Service. For more details, view SAM Profiles section in ADSS.
• A RAS Profile must be created from the ADSS RAS Service. For more details, view RAS Profiles section in ADSS.
• An RA Profile must be created from the ADSS RA Service. For more details, view RA Profiles section in ADSS.
• A Certification Profile must be created from the ADSS Certification Service. For more details, view Certification Profiles section in ADSS.
• A Signing Profile must be created from the ADSS Signing Service. For more details, view Singing Profiles section in ADSS.
