Welcome

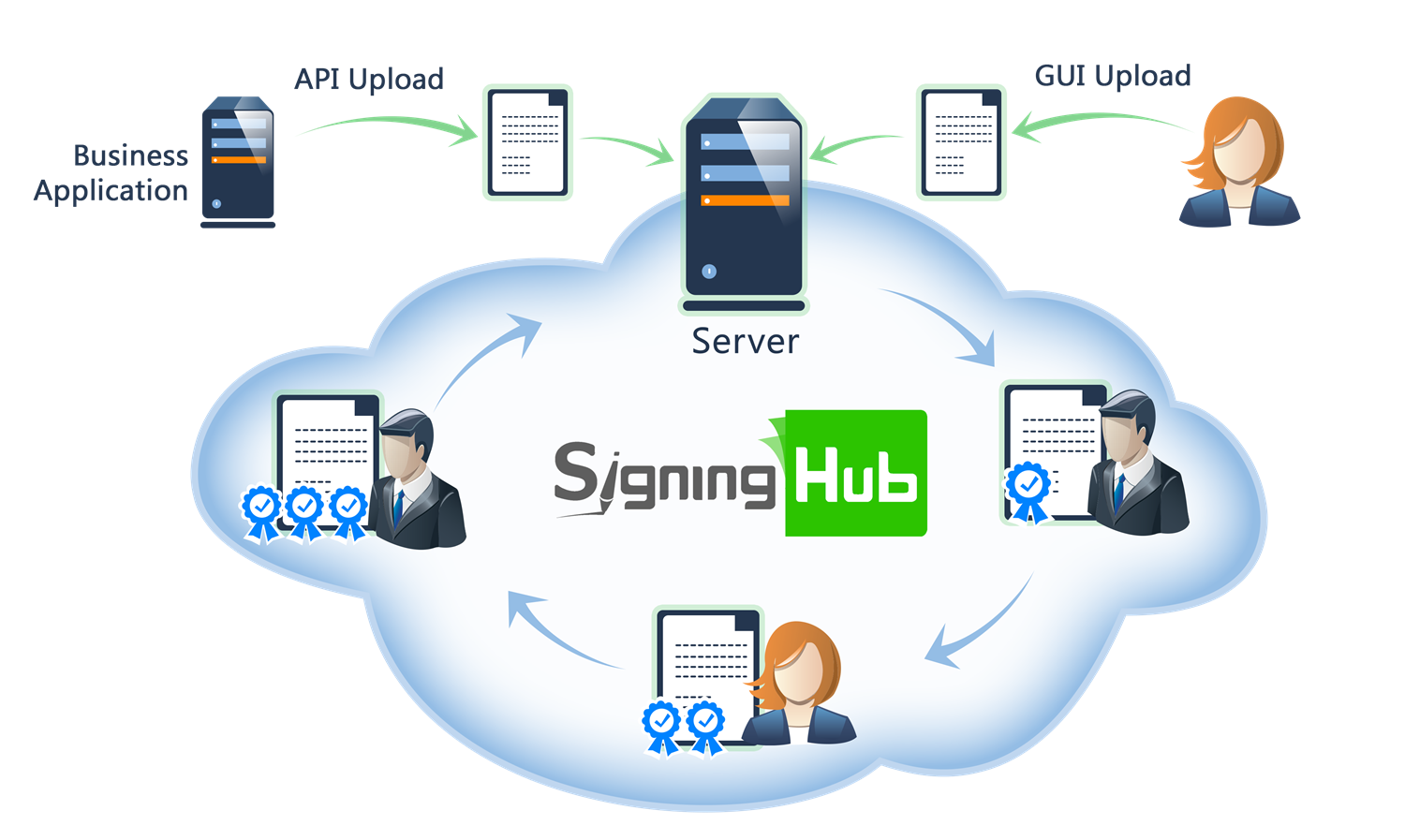

Welcome to SigningHub, a high trust digital signing solution for all your paperless business transactions. It is ideal for those organisations that recognise the value of using cryptographic digital signatures to protect their users and their documents against unauthorised or accidental or fraudulent changes.


Browse through the API content by selecting the relevant pages from the left panel. To quickly find specific web service information, enter search criteria in the search box on top left. .
More about SigningHub
To know more about SigningHub, explore the following links:
  • Go to  SigningHub Knowledge Base to view all the relevant information of SigningHub.
  • Visit the Ascertia Community Portal to find answers to contact SigningHub support staff through the  Live Chat provision .  Our support staff may be occupied with other priority tasks so live chat is offered on an "as available" basis.
Intended Readership
This guide is intended for developers who will integrate SigningHub into their respective web applications using the RESTful web services, and user interface offered by SigningHub. It is assumed that the reader has a basic knowledge of REST, Java, C#, HTML, JavaScript, HTTP and TLS/SSL. There is no Software Developers Kit (SDK) for the integration, instead the integration uses HTML Forms and JSON so that integration is simple from any language including .Net, Java, PHP etc.

Main Tags
Most Popular Pages
➤ Welcome
➤ Prerequisites
➤ Access Tokens
➤ Quick Integration
➤ Updates
➤ SignalR
➤ APIs Developer Guide
➤ Appendix
➤ Authentication
➤ Account Management
➤ Add Package
➤ Upload Document
➤ Get Workflow Details
➤ Sign Document

Document Workflow

This section entails the web services for the Document Workflow related operations i.e. Get Details, Add/Update Users, and Permissions.

Workflow Management

APIs for workflow lifecycle management including workflow details, replication, termination, post-processing, and package movement.

Add Electronic Seal to Workflow

Business applications can use this service API to add an Electronic Seal recipient to a workflow. This call will only add a recipient to the workflow. That is, no fields currently on the document will be automatically assigned to the new Electronic Seal recipient(s), nor will this create any new fields. Note the Electronic Seal recipient(s) will be added as the last person in the workflow. Hence further work may be required to remove a current Electronic Seal recipient(s) already present in the workflow. At least one recipient must exist in a workflow before fields can be added to the document. Note: the input accepts one or more Electronic Seal recipient(s) in a single call. Note: only PDF type document is supported.

path Parameters
packageId
required
integer <int64>

SigningHub package ID, which the eseal recipients are to be added to.

header Parameters
Authorization
required
string
Default: Bearer {access_token}

The access token obtained as a result of successful authentication via "Password" or "Scope". If "Scope Authentication" was used, then this service will be performed for the user on behalf of the business application.

Content-Type
required
string
Default: application/json
Accept
required
string
Default: application/json
Request Body schema:
Array
name
required
string [ 1 .. 255 ] characters

The name of the new user to be added/updated in workflow. If no value is provided, old value will be retained.

signing_order
integer or null <int32>

Order in which the workflow will be signed by the recipients. This signing order is important when workflow type is set to "CUSTOM".

Responses

Request samples

Content type
[
  • {
    }
]

Response samples

Content type
application/json
[
  • {
    }
]

Update Electronic Seal to Workflow

Business applications can use this service API to update the details of an Electronic Seal recipient who has already been added to a workflow. Normally this call is useful after a template has been applied to a document and business applications wants to override the details of a specific Electronic Seal recipient within the workflow. The ID of the workflow document is provided in the resource URL, and the workflow recipient is identified by the order at which it is added to the workflow. Note: only PDF type document is supported

path Parameters
packageId
required
integer <int64>

The package ID for which workflow eSeal recipient needs to be updated.

order
required
integer <int32>

The order of the eseal recipient in workflow.

header Parameters
Authorization
required
string
Default: Bearer {access_token}

The access token obtained as a result of successful authentication via "Password" or "Scope". If "Scope Authentication" was used, then this service will be performed for the user on behalf of the business application.

Content-Type
required
string
Default: application/json
Accept
required
string
Default: application/json
x-folder-id
string
Default: 0

Specify the folder ID, for retrieving the folder items, when a shared space folder is involved.

Request Body schema:
name
required
string [ 1 .. 255 ] characters

The name of the new user to be added/updated in workflow. If no value is provided, old value will be retained.

signing_order
integer or null <int32>

Order in which the workflow will be signed by the recipients. This signing order is important when workflow type is set to "CUSTOM".

Responses

Request samples

Content type
{
  • "name": "string",
  • "signing_order": 0
}

Response samples

Content type
application/json
{
  • "name": "string",
  • "signing_order": 0,
  • "level_of_assurance": "string"
}

Bulk Move Packages to Custom/Shared Space folder

Business applications can use this service API to move the document packages to a shared space or user's custom folder.

header Parameters
Authorization
required
string
Default: Bearer {access_token}

The OAuth access token obtained as a result of successful authentication via the "password" grant type.

Content-Type
required
string
Default: application/json
Accept
required
string
Default: application/json
x-source
string
Example: Library

This is the identification of the source of the document from where the document is uploaded, e.g. "My App".

x-search-text
string
Example: c2FsZXMgY29udHJhY3QgMTA1

Search text sent in headers for further filtration of the documents. Package id, name and document owner can be searched.
Furthermore, recommended value for search text parameter is in Base64 encoded format.

x-folder
string
Example: SU5CT1g=

Folder name from where the documents are to be fetched. Possible values are INBOX and ARCHIVE.
Furthermore, recommended value for x-folder parameter is in Base64 encoded format.

Request Body schema:
package_ids
Array of integers or null <int64>

Packages ids

folder_name
required
string [ 1 .. 255 ] characters

Target folder name in which packages need to move

document_status
string (Enumerations.DocumentPackageStatus)
Enum: "ALL" "DRAFT" "INPROGRESS" "PENDING" "SIGNED" "COMPLETED" "REVIEWED" "DECLINED" "EDITED" "EXPIRING_IN_SEVEN_DAYS"
package_name
string or null

The name of the package.

recipient_from
string or null

The sender who shared the document package.

recipient_to
string or null

The recipient to whom the document package is sent.

document_id
integer or null <int64>

Ids of the document.

expiry
integer or null <int32>

Expiry (Days).

modified_from
string or null <date-time>

From Modified Date.

modified_to
string or null <date-time>

To Modified Date

size_from
integer or null <int32>

From Size (KB)

size_to
integer or null <int32>

To Size (KB)

certified_documents
boolean or null

Certified signed documents

form_fields
boolean or null

Documents that have form fields

attachments
boolean or null

Documents that have attachments

document_type
string (Helper.DocumentType)
Enum: "ALL" "PDF" "DOCX" "XML"
document_statuses
Array of strings or null (Helper.AllowedDocumentPackageStatus)
Enum: "DRAFT" "INPROGRESS" "PENDING" "SIGNED" "COMPLETED" "REVIEWED" "DECLINED" "EDITED" "EXPIRING_IN_SEVEN_DAYS"

Document statuses possible values are mentioned above

owned_by
string (Enumerations.DocumentOwnedBy)
Enum: "ME_OTHERS" "ME" "OTHERS"

Responses

Request samples

Content type
{
  • "package_ids": [
    ],
  • "folder_name": "string",
  • "document_status": "ALL",
  • "package_name": "string",
  • "recipient_from": "string",
  • "recipient_to": "string",
  • "document_id": 0,
  • "expiry": 0,
  • "modified_from": "2019-08-24T14:15:22Z",
  • "modified_to": "2019-08-24T14:15:22Z",
  • "size_from": 0,
  • "size_to": 0,
  • "certified_documents": true,
  • "form_fields": true,
  • "attachments": true,
  • "document_type": "ALL",
  • "document_statuses": [
    ],
  • "owned_by": "ME_OTHERS"
}

Response samples

Content type
application/json
[
  • {
    }
]

Move Package to Custom/Shared Space folder

Business applications can use this service API to move the document package to a shared space or user's custom folder.

path Parameters
packageId
required
integer <int64>

Package id that need to move to folder

header Parameters
Authorization
required
string
Default: Bearer {access_token}

The access token obtained as a result of successful authentication via "Password" or "Scope". If "Scope Authentication" was used, then this service will be performed for the user on behalf of the business application.

Content-Type
required
string
Default: application/json
Accept
required
string
Default: application/json
Request Body schema:

Target folder name

folder_name
required
string [ 1 .. 255 ] characters

Target folder name in which package need to move

Responses

Request samples

Content type
{
  • "folder_name": "string"
}

Response samples

Content type
application/json
{
  • "Message": "string"
}

Update Workflow Details

Business applications can use this service API to update the workflow details. Normally this call is useful after a template has been applied to a document, but business applications wants to override the certify permission or post processing details. The package ID is provided in the resource URL.

path Parameters
packageId
required
integer <int64>

The package ID for which workflow details need to be updated.

header Parameters
Authorization
required
string
Default: Bearer {access_token}

The access token obtained as a result of successful authentication via "Password" or "Scope". If "Scope Authentication" was used, then this service will be performed for the user on behalf of the business application.

Content-Type
required
string
Default: application/json
Accept
required
string
Default: application/json
Request Body schema:
workflow_type
string (Models.WorkflowType)
Enum: "SERIAL" "INDIVIDUAL" "PARALLEL" "CUSTOM"
workflow_mode
string (Models.WorkflowModes)
Enum: "ME_AND_OTHERS" "ONLY_OTHERS" "ONLY_ME"
continue_on_decline
boolean or null

True, if workflow needs to continue even if any recipient declines the document. If no value is provided, old value will be retained.

message
string or null

A custom string message from the document owner to every recipient, this message appears in the sharing email as well as on the screen. If no value is provided, old value will be retained.

comments
boolean or null

Allow comments

Responses

Request samples

Content type
{
  • "workflow_type": "SERIAL",
  • "workflow_mode": "ME_AND_OTHERS",
  • "continue_on_decline": true,
  • "message": "string",
  • "comments": true
}

Response samples

Content type
application/json
{
  • "Message": "string"
}

Get Workflow Details

Business applications can use this service API to get workflow details for the package.

path Parameters
packageId
required
integer <int64>

The ID of the package to be downloaded.

header Parameters
Authorization
required
string
Default: Bearer {access_token}

The access token obtained as a result of successful authentication via "Password" or "Scope". If "Scope Authentication" was used, then this service will be performed for the user on behalf of the business application.

Content-Type
required
string
Default: application/json
Accept
required
string
Default: application/json
x-formatted
string
Default: TRUE

XML document viewer indication.Possible values are TRUE | FALSE

x-folder-id
string
Default: 0

Specify the folder ID, for retrieving the folder items, when a shared space folder is involved.

Responses

Response samples

Content type
application/json
{
  • "package_id": 0,
  • "package_name": "string",
  • "shared_package": true,
  • "package_owner": "string",
  • "owner_name": "string",
  • "package_status": "string",
  • "folder": "string",
  • "folder_id": 0,
  • "gatekeeper": true,
  • "next_signer": "string",
  • "next_signer_email": [
    ],
  • "uploaded_on": "string",
  • "modified_on": "string",
  • "workflow": {
    },
  • "documents": [
    ],
  • "users": [
    ]
}

Update Post Processing

Business applications can use this service API to add placeholder to a workflow a document in a package.

path Parameters
packageId
required
integer <int64>

ID of the document package for which the post processing is being updated.

header Parameters
Authorization
required
string
Default: Bearer {access_token}

The access token obtained as a result of successful authentication via "Password" or "Scope". If "Scope Authentication" was used, then this service will be performed for the user on behalf of the business application.

Content-Type
required
string
Default: application/json
Accept
required
string
Default: application/json
Request Body schema:
enabled
required
boolean

True, if post processing is turned on for the package.

contacts
Array of strings or null
Array of objects or null (Models.PostProcessRecipientRequest)

List of the name and email addresses to whom the emails are sent when the post processing is executed after the workflow completion.

message
string or null <= 1500 characters

A custom string message for all the contacts. Message becomes part of the email sent to the contacts.

google_drive
boolean or null

True, if document is to be uploaded to the provided google account after the workflow completion.

dropbox
boolean or null

True, if document is to be uploaded to the provided dropbox account after the workflow completion.

onedrive
boolean or null

True, if document is to be uploaded to the provided oneDrive account after the workflow completion.

workflow_recipients
boolean

True, if workflow completion report is to be sent to all recipients of the workflow when post processing is executed. Default value is false.

document_processing_report
boolean

True, if Send the document processing report (XML) is to be enabled to for the workflow

Responses

Request samples

Content type
{
  • "enabled": true,
  • "contacts": [
    ],
  • "recipients": [
    ],
  • "message": "string",
  • "google_drive": true,
  • "dropbox": true,
  • "onedrive": true,
  • "workflow_recipients": true,
  • "document_processing_report": true
}

Response samples

Content type
application/json
{
  • "Message": "string"
}

Replicate Workflow

Business applications can use this service API to replicate complete workflow.

path Parameters
packageId
required
integer <int64>

The ID of the package that need to be replicated.

header Parameters
Authorization
required
string
Default: Bearer {access_token}

The OAuth access token obtained as a result of successful authentication via the "password" grant type.

Content-Type
required
string
Default: application/json
Accept
required
string
Default: application/json
x-folder-id
string
Default: 0

Specify the folder ID, for retrieving the folder items, when a shared space folder is involved.

Responses

Response samples

Content type
application/json
{
  • "package_id": 0,
  • "package_name": "string",
  • "shared_package": true,
  • "package_owner": "string",
  • "owner_name": "string",
  • "package_status": "string",
  • "folder": "string",
  • "folder_id": 0,
  • "gatekeeper": true,
  • "next_signer": "string",
  • "next_signer_email": [
    ],
  • "uploaded_on": "string",
  • "modified_on": "string",
  • "workflow": {
    },
  • "documents": [
    ],
  • "users": [
    ]
}

Complete Workflow in the Middle (Terminate Workflow)

Business applications can mark the workflow completed even in the middle of the workflow. Use this service API to change the status of the workflow to completed. If there are recipients who have not signed the document yet. Their signature will not be required any more and they will not be able to see the document in their inbox any further. Bearer token should belong to document owner or enterprise admin can use scope variable to get the access token on behalf of document owner to perform this action.

path Parameters
packageId
required
integer <int64>

The package ID from which the recipient is to be deleted.

header Parameters
Authorization
required
string
Default: Bearer {access_token}

The access token obtained as a result of successful authentication via "Password" or "Scope". If "Scope Authentication" was used, then this service will be performed for the user on behalf of the business application.

Content-Type
required
string
Default: application/json
Accept
required
string
Default: application/json
x-folder-id
string
Default: 0

Specify the folder ID, for retrieving the folder items, when a shared space folder is involved.

Responses

Response samples

Content type
application/json
{
  • "Message": "string"
}

Recipients Management

APIs for managing workflow recipients, groups, placeholders, signing order, and participant information.

Add Users to Workflow

Business applications can use this service API to add recipients to a workflow. This call will only add a recipient to the workflow. That is, no fields currently on the document will be automatically assigned to the new recipient(s), nor will this create any new fields.

Note the recipient(s) will be added as the last person in the workflow.Hence further work may be required to remove a current recipient(s) already present in the workflow.

At least one user must exist in a workflow before fields (input and signature) can be added to the document.

Note the input accepts one or more users in a single call.

In this specific call the user is a known natural person. However, the same rules apply to Groups and Placeholders. In either of these cases the recipient becomes a Group of users whereby any member of the group can sign the document, or a Placeholder.The latter case is used when you do not know the identity of the intended signatory.

Note SigningHub workflow signing order starts at "1". Hence, adding a user to workflow with no current recipient(s) begins a new signing order count.The "signing_order" parameter is mandatory if the workflow type is "custom".

Important, using this API call may affect the workflow type.If there are current recipients in a sequential workflow and a new one is added with the same signing order as a current recipient, then that part of the workflow changes automatically from sequential to parallel.Hence, the workflow overall is now of type custom as opposed to purely sequential. Adding a recipient with the same signing order as two or parallel recipients does not change the workflow.There are merely, three or more recipients at that particular point of the workflow; all in parallel order.

Note, while XML type document preparation, only supported role types are "SIGNER", "REVIEWER" and "CARBON_COPY"

path Parameters
packageId
required
integer <int64>

SigningHub package ID, which the recipients are to be added to.

header Parameters
Authorization
required
string
Default: Bearer {access_token}

The access token obtained as a result of successful authentication via "Password" or "Scope". If "Scope Authentication" was used, then this service will be performed for the user on behalf of the business application.

Content-Type
required
string
Default: application/json
Accept
required
string
Default: application/json
Request Body schema:
Array
user_email
string or null

Email address of the user to be added in the workflow.

user_name
required
string non-empty

Name of the recipient to be added in the workflow.

user_national_id
string or null

User national id of the recipient

email_notification
boolean

If set as true, SigningHub will send notifications to the user via email as per the document owner and user notification settings. A value of false means no notifications will be sent to user throughout the workflow.

role
string (Enumerations.CollaboratorRole)
Enum: "SIGNER" "REVIEWER" "EDITOR" "INPERSON_HOST" "CARBON_COPY" "ELECTRONIC_SEAL"
signing_order
integer or null <int32>

Order of the recipient in the workflow. This signing order is mandatory when workflow type is "CUSTOM".

delivery_method
string (Enumerations.DeliveryMethod)
Enum: "EMAIL" "SMS" "EMAIL_AND_SMS"
mobile_number
string or null <= 15 characters

Mobile Number

Responses

Request samples

Content type
[
  • {
    }
]

Response samples

Content type
application/json
[
  • {
    }
]

Get Workflow Users

Business applications can use this service API to get workflow details for the package.

path Parameters
packageId
required
integer <int64>

The ID of the package to be downloaded.

header Parameters
Authorization
required
string
Default: Bearer {access_token}

The access token obtained as a result of successful authentication via "Password" or "Scope". If "Scope Authentication" was used, then this service will be performed for the user on behalf of the business application.

Content-Type
required
string
Default: application/json
Accept
required
string
Default: application/json
x-folder-id
string
Default: 0

Specify the folder ID, for retrieving the folder items, when a shared space folder is involved.

Responses

Response samples

Content type
application/json
[
  • {
    }
]

Add Groups to Workflow

Business applications can use this service API to add groups as a recipient to a workflow. A SigningHub group means any member of the group can perform the action, i.e. sign, on behalf of all members of the group.

Note the group will be added as the last user/group in the workflow.Hence further work may be required to remove a current user/group, already present in the workflow. While XML type document preparation, only supported role types are "SIGNER", "REVIEWER" and "CARBON_COPY"

path Parameters
packageId
required
integer <int64>

ID of the package for which the group is to be added.

header Parameters
Authorization
required
string
Default: Bearer {access_token}

The access token obtained as a result of successful authentication via "Password" or "Scope". If "Scope Authentication" was used, then this service will be performed for the user on behalf of the business application.

Content-Type
required
string
Default: application/json
Accept
required
string
Default: application/json
Request Body schema:
Array
group_name
string or null

The name of the new group to be added in workflow.

email_notification
boolean

Setting its value to "true" sends an email notification to the user when its turn arrives in workflow. Setting its value to "false" does not send the email notification to the user on its turn. If no value is provided, default value of "true" will be set.

role
string (Enumerations.CollaboratorRole)
Enum: "SIGNER" "REVIEWER" "EDITOR" "INPERSON_HOST" "CARBON_COPY" "ELECTRONIC_SEAL"
signing_order
integer or null <int32>

Order in which the workflow will be signed by the recipients. This signing order is important when workflow type is set to "CUSTOM".

Responses

Request samples

Content type
[
  • {
    }
]

Response samples

Content type
application/json
[
  • {
    }
]

Add Placeholder to Workflow

Business applications can use this service API to add placeholder to a workflow in a package. A place holder is required when you do not know the identity of the intended recipient in a workflow.

Note the placeholder will be added as the last user in the workflow.Hence further work may be required to remove a current user/group, already present in the workflow.

Adding a place holder allows you to proceed and add signature and/or input fields to the document, which can then be assigned to individual users at a later stage. While XML type document preparation, only supported role types are "SIGNER", "REVIEWER" and "CARBON_COPY"

path Parameters
packageId
required
integer <int64>

ID of the package for which the placeholder is to be added.

header Parameters
Authorization
required
string
Default: Bearer {access_token}

The access token obtained as a result of successful authentication via "Password" or "Scope". If "Scope Authentication" was used, then this service will be performed for the user on behalf of the business application.

Content-Type
required
string
Default: application/json
Accept
required
string
Default: application/json
Request Body schema:
Array
placeholder
string or null

The name of the new placeholder to be added in workflow.

email_notification
boolean

Setting its value to "true" sends an email notification to the user when its turn arrives in workflow. Setting its value to "false" does not send the email notification to the user on its turn.

role
string (Enumerations.CollaboratorRole)
Enum: "SIGNER" "REVIEWER" "EDITOR" "INPERSON_HOST" "CARBON_COPY" "ELECTRONIC_SEAL"
signing_order
integer or null <int32>

Order in which the workflow will be signed by the recipients. This signing order is important when workflow type is set to "CUSTOM".

Responses

Request samples

Content type
[
  • {
    }
]

Response samples

Content type
application/json
[
  • {
    }
]

Update Placeholder

Business applications can use this service API to update a placeholder in the workflow. Normally this call is useful after a template has been applied to a document and business applications wants to override the details of a specific place holder within the workflow. The ID of the workflow document is provided in the resource URL, and the workflow place holder is identified by the order at which it is added to the workflow. While XML type document preparation, only supported role types are "SIGNER", "REVIEWER" and "CARBON_COPY"

path Parameters
packageId
required
integer <int64>

ID of the package for which the placeholder is to be added.

order
required
integer <int32>

Order of the recipient in the workflow.

header Parameters
Authorization
required
string
Default: Bearer {access_token}

The access token obtained as a result of successful authentication via "Password" or "Scope". If "Scope Authentication" was used, then this service will be performed for the user on behalf of the business application.

Content-Type
required
string
Default: application/json
Accept
required
string
Default: application/json
Request Body schema:
placeholder
string or null

The name of the new placeholder to be added in workflow. If no value is provided, old value will be retained.

email_notification
boolean or null

Setting its value to "true" sends an email notification to the user when its turn arrives in workflow. Setting its value to "false" does not send the email notification to the user on its turn. If no value is provided, old value will be retained.

role
string (Models.WorkflowCollaboratorRole)
Enum: "SIGNER" "REVIEWER" "EDITOR" "INPERSON_HOST" "CARBON_COPY"
signing_order
integer or null <int32>

Order in which the workflow will be signed by the recipients. This signing order is important when workflow type is set to "CUSTOM".

Responses

Request samples

Content type
{
  • "placeholder": "string",
  • "email_notification": true,
  • "role": "SIGNER",
  • "signing_order": 0
}

Response samples

Content type
application/json
{
  • "Message": "string"
}

Update Workflow User

Business applications can use this service API to update the details of a recipient, group or place holder who has already been added to a workflow. Normally this call is useful after a template has been applied to a document and business applications wants to override the details of a specific user within the workflow. The ID of the workflow document is provided in the resource URL, and the workflow recipient is identified by the order at which it is added to the workflow. Note, while XML type document preparation, only supports role types "SIGNER", "REVIEWER" and "CARBON_COPY".

path Parameters
packageId
required
integer <int64>

The package ID for which workflow user needs to be updated.

order
required
integer <int32>

The order of the user in workflow.

header Parameters
Authorization
required
string
Default: Bearer {access_token}

The access token obtained as a result of successful authentication via "Password" or "Scope". If "Scope Authentication" was used, then this service will be performed for the user on behalf of the business application.

Content-Type
required
string
Default: application/json
Accept
required
string
Default: application/json
x-folder-id
string
Default: 0

Specify the folder ID, for retrieving the folder items, when a shared space folder is involved.

Request Body schema:
user_email
string or null

The email address of the new user to be updated in workflow. If no value is provided, old value will be retained.

user_name
string or null

Name of the recipient to be updated. If no value is provided, old value will be retained.

email_notification
boolean or null

Setting its value to "true" sends an email notification to the user when its turn arrives in workflow. Setting its value to "false" does not send the email notification to the user on its turn. If no value is provided, old value will be retained.

mobile_number
string or null <= 15 characters

Mobile number. If no value is provided, old value will be retained.

role
string (Models.WorkflowCollaboratorRole)
Enum: "SIGNER" "REVIEWER" "EDITOR" "INPERSON_HOST" "CARBON_COPY"
signing_order
integer or null <int32>

Order in which the workflow will be signed by the recipients. This signing order is important when workflow type is set to "CUSTOM".

email_language_code
string or null

email language code

delivery_method
string (Enumerations.DeliveryMethod)
Enum: "EMAIL" "SMS" "EMAIL_AND_SMS"
user_national_id
string or null

User national id of the recipient

Responses

Request samples

Content type
{
  • "user_email": "string",
  • "user_name": "string",
  • "email_notification": true,
  • "mobile_number": "string",
  • "role": "SIGNER",
  • "signing_order": 0,
  • "email_language_code": "string",
  • "delivery_method": "EMAIL",
  • "user_national_id": "string"
}

Response samples

Content type
application/json
{
  • "user_email": "string",
  • "signing_order": 0,
  • "guest_user": true,
  • "email_language_code": "string"
}

Update Workflow Users Order

Business applications can use this service API to update order of the recipient in the workflow.

path Parameters
packageId
required
integer <int64>

ID of the package to which the recipients are to be added.

order
required
integer <int32>

Existing order of the recipient which is to be updated.

header Parameters
Authorization
required
string
Default: Bearer {access_token}

The access token obtained as a result of successful authentication via "Password" or "Scope". If "Scope Authentication" was used, then this service will be performed for the user on behalf of the business application.

Content-Type
required
string
Default: application/json
Accept
required
string
Default: application/json
Request Body schema:
order
required
integer <int32>

The order of the recipient which is to be updated.

Responses

Request samples

Content type
{
  • "order": 0
}

Response samples

Content type
application/json
{
  • "Message": "string"
}

Update Workflow Group

Business applications can use this service API to update the details of a group that has already been added to a workflow. Normally this call is useful after a template has been applied to a document and business applications wants to override the details of a specific group within the workflow. The ID of the workflow document is provided in the resource URL, and the workflow group is identified by the order at which it is added to the workflow. While XML type document preparation, only supported role types are "SIGNER", "REVIEWER" and "CARBON_COPY"

path Parameters
packageId
required
integer <int64>

The package ID for which workflow group needs to be updated.

order
required
integer <int32>

The order of the user in workflow.

header Parameters
Authorization
required
string
Default: Bearer {access_token}

The access token obtained as a result of successful authentication via "Password" or "Scope". If "Scope Authentication" was used, then this service will be performed for the user on behalf of the business application.

Content-Type
required
string
Default: application/json
Accept
required
string
Default: application/json
x-folder-id
string
Default: 0

Specify the folder ID, for retrieving the folder items, when a shared space folder is involved.

Request Body schema:
group_name
string or null

The name of the group to be updated in workflow. If no value is provided, old value will be retained.

email_notification
boolean or null

Setting its value to "true" sends an email notification to the group members when their turn arrives in workflow. Setting its value to "false" does not send the email notification to the group members on their turn. If no value is provided, old value will be retained.

access_sms_otp
boolean or null
mobile_number
string or null
role
required
string (Models.WorkflowCollaboratorRole)
Enum: "SIGNER" "REVIEWER" "EDITOR" "INPERSON_HOST" "CARBON_COPY"
signing_order
integer or null <int32>

Order in which the workflow will be signed by the recipients. This signing order is important when workflow type is set to "CUSTOM".

Responses

Request samples

Content type
{
  • "group_name": "string",
  • "email_notification": true,
  • "access_sms_otp": true,
  • "mobile_number": "string",
  • "role": "SIGNER",
  • "signing_order": 0
}

Response samples

Content type
application/json
{
  • "Message": "string"
}

Delete Workflow User

Business applications can use this service API to delete workflow recipient.

path Parameters
packageId
required
integer <int64>

The package ID from which the recipient is to be deleted.

order
required
integer <int32>

Order of the recipient in the workflow which is to be deleted.

header Parameters
Authorization
required
string
Default: Bearer {access_token}

The access token obtained as a result of successful authentication via "Password" or "Scope". If "Scope Authentication" was used, then this service will be performed for the user on behalf of the business application.

Content-Type
required
string
Default: application/json
Accept
required
string
Default: application/json

Responses

Response samples

Content type
application/json
{
  • "Message": "string"
}

Pre Validate Workflow User

Business applications can use this service API to pre validate the recipients.

path Parameters
packageId
required
integer <int64>
header Parameters
Authorization
required
string
Default: Bearer {access_token}

The OAuth access token obtained as a result of successful authentication via the "password" grant type.

Content-Type
required
string
Default: application/json
Accept
required
string
Default: application/json
Request Body schema:
Array
user_email
string or null

The email address of the user.

Responses

Request samples

Content type
[
  • {
    }
]

Response samples

Content type
application/json
[
  • {
    }
]

Bulk Import Recipient

Business applications can use this service API to import the recipients.

path Parameters
packageId
required
integer <int64>
header Parameters
Authorization
required
string
Default: Bearer {access_token}

The access token obtained as a result of successful authentication via "Password" or "Scope". If "Scope Authentication" was used, then this service will be performed for the user on behalf of the business application.

Content-Type
required
string
Default: application/json
Accept
required
string
Default: application/json
file (binary Stream)
string

This is the recipient document in CSV format, posting via form data.

x-file-name
required
string
Example: recipients.csv

It's the name of file with extension.

Responses

Response samples

Content type
application/json
{
  • "success": [
    ],
  • "failure": [
    ]
}

Download Import Recipient Template

path Parameters
packageId
required
integer <int64>
header Parameters
Authorization
required
string
Default: Bearer {access_token}

The access token obtained as a result of successful authentication via "Password" or "Scope". If "Scope Authentication" was used, then this service will be performed for the user on behalf of the business application.

Content-Type
required
string
Default: application/json
Accept
required
string
Default: application/json

Responses

Response samples

Content type
application/json
"string"

Recipients Permissions

APIs for managing workflow access permissions and document opening authentication requirements.

Get Workflow User Permissions

Business applications can use this service API to get document permissions for a recipient. Recipient is identified by the order in the workflow. The ID of the package is provided in the resource URL.

path Parameters
packageId
required
integer <int64>

The document ID for which workflow user needs to be updated.

order
required
integer <int32>

The order of the user in workflow for which the permissions are requested. By providing the value 0 in order, service would return the permissions of most recently added collaborator in the workflow.

header Parameters
Authorization
required
string
Default: Bearer {access_token}

The access token obtained as a result of successful authentication via "Password" or "Scope". If "Scope Authentication" was used, then this service will be performed for the user on behalf of the business application.

Content-Type
required
string
Default: application/json
Accept
required
string
Default: application/json

Responses

Response samples

Content type
application/json
{
  • "print": true,
  • "download": true,
  • "add_text": true,
  • "change_recipients": true,
  • "add_attachment": true,
  • "legal_notice": {
    },
  • "attachment": {
    },
  • "artificial_intelligence": {
    },
  • "attachment_preview": {
    }
}

Update Workflow User Permissions

Business applications can use this service API to update the workflow permissions for a user that has already been added to a workflow. Normally this call is useful after a template has been applied to a document and business applications want to override the permissions within the workflow. The ID of the document package is provided in the resource URL, and the workflow user is identified by the order at which it is added to the workflow.

path Parameters
packageId
required
integer <int64>

The package ID for which workflow permissions to be updated.

order
required
integer <int32>

The order of the recipient for which the workflow permissions to be updated.

header Parameters
Authorization
required
string
Default: Bearer {access_token}

The access token obtained as a result of successful authentication via "Password" or "Scope". If "Scope Authentication" was used, then this service will be performed for the user on behalf of the business application.

Content-Type
required
string
Default: application/json
Accept
required
string
Default: application/json
x-folder-id
string
Default: 0

Specify the folder ID, for retrieving the folder items, when a shared space folder is involved.

Request Body schema:
apply_to_all
required
boolean

True, if the permissions are to be applied on all the recipients in the workflow.

required
object (Models.WorkflowPermission)

WorkflowPermission

Responses

Request samples

Content type
{
  • "apply_to_all": true,
  • "permissions": {
    }
}

Response samples

Content type
application/json
{
  • "Message": "string"
}

Get Workflow User Authentication (Document Opening)

Business applications can use this service API to get the access security settings enabled for the package. Recipients for whom the security is configured are identified by the order in the URL. Package ID is also identified in the request URL. Recipients will not be able to access document package outside the scope of this duration if the access security is enabled. Document owner can also configure authentication based security of the package for a recipient.

path Parameters
packageId
required
integer <int64>

The package ID for which workflow access security and authentication is to be updated.

order
required
integer <int32>

Order of the recipient in the workflow for which the access security and authentication is to be updated.

header Parameters
Authorization
required
string
Default: Bearer {access_token}

The access token obtained as a result of successful authentication via "Password" or "Scope". If "Scope Authentication" was used, then this service will be performed for the user on behalf of the business application.

Content-Type
required
string
Default: application/json
Accept
required
string
Default: application/json

Responses

Response samples

Content type
application/json
{
  • "authentication": {
    },
  • "authentication_signing": {
    },
  • "access_duration": {
    }
}

Update Workflow User Authentication (Document Opening)

Business applications can use this service API to update the package authentications and access duration for the recipients.

path Parameters
packageId
required
integer <int64>

The package ID for which workflow access security and authentication is to be updated.

order
required
integer <int32>

Order of the recipient in the workflow for which the access security and authentication is to be updated.

header Parameters
Authorization
required
string
Default: Bearer {access_token}

The access token obtained as a result of successful authentication via "Password" or "Scope". If "Scope Authentication" was used, then this service will be performed for the user on behalf of the business application.

Content-Type
required
string
Default: application/json
Accept
required
string
Default: application/json
x-folder-id
string
Default: 0

Specify the folder ID, for retrieving the folder items, when a shared space folder is involved.

Request Body schema:
apply_to_all
boolean

True, if the access security or authentications are to be applied on all the recipients in the workflow.

required
object (Models.AccessAuthentication)

AccessAuthentication

object (Models.SigningAuthentication)

SigningAuthentication

required
object (Models.PermissionAccessDuration)

PermissionAccessDuration

Responses

Request samples

Content type
{
  • "apply_to_all": true,
  • "authentication": {
    },
  • "authentication_signing": {
    },
  • "access_duration": {
    }
}

Response samples

Content type
application/json
{
  • "Message": "string"
}

Workflow Authentication

APIs related to OTP and password authentication

Open Document via OTP (Generate)

Business applications can use this service API to generate an OTP for a particular recipient, specified by the order.

path Parameters
packageId
required
integer <int64>

The ID of the package for which the OTP is to be generated.

order
required
integer <int32>

The order of the recipient for whom the OTP is to be generated. If the order is passed as 0, the system will select the current collaborator by packageId. This is useful when signing a single package during bulk signing.

header Parameters
Authorization
required
string
Default: Bearer {access_token}

The access token obtained as a result of successful authentication via "Password" or "Scope". If "Scope Authentication" was used, then this service will be performed for the user on behalf of the business application.

Content-Type
required
string
Default: application/json
Accept
required
string
Default: application/json
x-folder-id
string
Default: 0

Specify the folder ID, for retrieving the folder items, when a shared space folder is involved.

Request Body schema:

The OTP method.

method
string or null

Method Possible values are "EMAIL", "SMS"

Responses

Request samples

Content type
{
  • "method": "string"
}

Response samples

Content type
application/json
{
  • "Message": "string"
}

Open Document via Password

Business applications can use this service API to submit a password from a particular recipient, specified by the order.

path Parameters
packageId
required
integer <int64>

The ID of the package for which the password is submitted.

order
required
integer <int32>

The order of the user for which the password is to be submitted.

header Parameters
Authorization
required
string
Default: Bearer {access_token}

The OAuth access token obtained as a result of successful authentication via the "password" grant type.

Content-Type
required
string
Default: application/json
Accept
required
string
Default: application/json
x-folder-id
string
Default: 0

Specify the folder ID, for retrieving the folder items, when a shared space folder is involved.

Request Body schema:
password
required
string non-empty

String password for the document package for verification and opening the package.

Responses

Request samples

Content type
{
  • "password": "string"
}

Response samples

Content type
application/json
{
  • "Message": "string"
}

Reminder Settings

APIs for configuring and sending workflow reminders.

Send Reminder

Business applications can use this service API to send reminder to workflow user. The recipient is identified by the order in the workflow. The ID of the package is provided in the resource URL.

path Parameters
packageId
required
integer <int64>

The package ID for which the reminder needs to be sent.

order
required
integer <int32>

The order of the user in workflow.

header Parameters
Authorization
required
string
Default: Bearer {access_token}

The access token obtained as a result of successful authentication via "Password" or "Scope". If "Scope Authentication" was used, then this service will be performed for the user on behalf of the business application.

Content-Type
required
string
Default: application/json
Accept
required
string
Default: application/json
x-folder-id
string
Default: 0

Specify the folder ID, for retrieving the folder items, when a shared space folder is involved.

Responses

Response samples

Content type
application/json
{
  • "Message": "string"
}

Bulk Send Reminder

Business applications can use this service API to bulk send reminder to workflow user.

header Parameters
Authorization
required
string
Default: Bearer {access_token}

The access token obtained as a result of successful authentication via "Password" or "Scope". If "Scope Authentication" was used, then this service will be performed for the user on behalf of the business application.

Content-Type
required
string
Default: application/json
Accept
required
string
Default: application/json
x-folder-id
string
Default: 0

Specify the folder ID, for retrieving the folder items, when a shared space folder is involved.

x-source
string
Default: Library

This is the identification of the source of the document from where the document is uploaded, e.g. "My App".

x-search-text
string
Example: c2FsZXMgY29udHJhY3QgMTA1

Search text sent in headers for further filtration of the documents. Package id, name and document owner can be searched.
Furthermore, recommended value for search text parameter is in Base64 encoded format.

x-folder
string
Example: SU5CT1g=

Folder name from where the documents are to be fetched. Possible values are INBOX and ARCHIVE.
Furthermore, recommended value for x-folder parameter is in Base64 encoded format.

Request Body schema:
package_ids
Array of integers or null <int64>

Ids of the document package.

document_status
string (Enumerations.DocumentPackageStatus)
Enum: "ALL" "DRAFT" "INPROGRESS" "PENDING" "SIGNED" "COMPLETED" "REVIEWED" "DECLINED" "EDITED" "EXPIRING_IN_SEVEN_DAYS"
package_name
string or null

The name of the package.

recipient_from
string or null

The sender who shared the document package.

recipient_to
string or null

The recipient to whom the document package is sent.

document_id
integer or null <int64>

Ids of the document.

expiry
integer or null <int32>

Expiry (Days).

modified_from
string or null <date-time>

From Modified Date.

modified_to
string or null <date-time>

To Modified Date

size_from
integer or null <int32>

From Size (KB)

size_to
integer or null <int32>

To Size (KB)

certified_documents
boolean or null

Certified signed documents

form_fields
boolean or null

Documents that have form fields

attachments
boolean or null

Documents that have attachments

document_type
string (Helper.DocumentType)
Enum: "ALL" "PDF" "DOCX" "XML"
document_statuses
Array of strings or null (Helper.AllowedDocumentPackageStatus)
Enum: "DRAFT" "INPROGRESS" "PENDING" "SIGNED" "COMPLETED" "REVIEWED" "DECLINED" "EDITED" "EXPIRING_IN_SEVEN_DAYS"

Document statuses possible values are mentioned above

owned_by
string (Enumerations.DocumentOwnedBy)
Enum: "ME_OTHERS" "ME" "OTHERS"

Responses

Request samples

Content type
{
  • "package_ids": [
    ],
  • "document_status": "ALL",
  • "package_name": "string",
  • "recipient_from": "string",
  • "recipient_to": "string",
  • "document_id": 0,
  • "expiry": 0,
  • "modified_from": "2019-08-24T14:15:22Z",
  • "modified_to": "2019-08-24T14:15:22Z",
  • "size_from": 0,
  • "size_to": 0,
  • "certified_documents": true,
  • "form_fields": true,
  • "attachments": true,
  • "document_type": "ALL",
  • "document_statuses": [
    ],
  • "owned_by": "ME_OTHERS"
}

Response samples

Content type
application/json
[
  • {
    }
]

Update Workflow Reminders

Business applications can use this service API to update the workflow reminders for a recipient that has already been added to a workflow. Normally this call is useful after a template has been applied to a document and business applications want to override the reminders settings within the workflow. The ID of the workflow document is provided in the resource URL, and the workflow recipient is identified by the order at which it is added to the workflow.

path Parameters
packageId
required
integer <int64>

The package ID for which workflow reminders to be updated.

order
required
integer <int32>

The order of the user for which the workflow reminders to be updated.

header Parameters
Authorization
required
string
Default: Bearer {access_token}

The access token obtained as a result of successful authentication via "Password" or "Scope". If "Scope Authentication" was used, then this service will be performed for the user on behalf of the business application.

Content-Type
required
string
Default: application/json
Accept
required
string
Default: application/json
Request Body schema:
apply_to_all
boolean

True, if reminder settings are to be applied on all the recipients in the workflow.

enabled
boolean

True, if reminder settings are to be enabled.

frequency
string or null

Reminder Frequency. Possible Values are DAYS | HOURS.

remind_after
integer <int32>

Required, in case of enabled property will true. The number of days after which the first reminder would be sent to workflow user.

object (Models.RepeatRequest)

RepeatRequest

Responses

Request samples

Content type
{
  • "apply_to_all": true,
  • "enabled": true,
  • "frequency": "string",
  • "remind_after": 0,
  • "repeat": {
    }
}

Response samples

Content type
application/json
{
  • "Message": "string"
}

Get Workflow Reminder

Business applications can use this service API to update the reminders for the recipients that has already been added to a workflow. Normally this call is useful after a template has been applied to a document and business applications want to override the reminders settings within the workflow. The ID of the workflow document is provided in the resource URL, and the workflow recipient is identified by the order at which it is added to the workflow.

path Parameters
packageId
required
integer <int64>

The package ID for which workflow reminders to be updated.

order
required
integer <int32>

The order of the user for which the workflow reminders to be updated.

header Parameters
Authorization
required
string
Default: Bearer {access_token}

The access token obtained as a result of successful authentication via "Password" or "Scope". If "Scope Authentication" was used, then this service will be performed for the user on behalf of the business application.

Content-Type
required
string
Default: application/json
Accept
required
string
Default: application/json

Responses

Response samples

Content type
application/json
{
  • "enabled": true,
  • "frequency": "string",
  • "remind_after": 0,
  • "repeat": {
    }
}

Comments Management

APIs for creating, retrieving, and managing workflow comments.

Add Workflow Comments

Business applications can add the comments in the workflow. Use this service API to add comments in workflow. Bearer token should belong to document owner or enterprise admin can use scope variable to get the access token on behalf of document owner to perform this action.

path Parameters
packageId
required
integer <int64>

The package ID in which comments need to be added.

header Parameters
Authorization
required
string
Default: Bearer {access_token}

The access token obtained as a result of successful authentication via "Password" or "Scope". If "Scope Authentication" was used, then this service will be performed for the user on behalf of the business application.

Content-Type
required
string
Default: application/json
Accept
required
string
Default: application/json
Request Body schema:
send_to_owner
boolean

If document owner is included in everyone's drop down but not a part of workflow collaborators

order
Array of integers or null <int32>

If user wanna send comments to multiple recipients

text
required
string non-empty

Workflow Comment text

Responses

Request samples

Content type
{
  • "send_to_owner": true,
  • "order": [
    ],
  • "text": "string"
}

Response samples

Content type
application/json
{
  • "Message": "string"
}

Get Workflow Comments

Business applications can get the comments in the workflow. Use this service API to get comments in workflow. Bearer token should belong to document owner or enterprise admin can use scope variable to get the access token on behalf of document owner to perform this action.

path Parameters
packageId
required
integer <int64>

The package ID to get the workflow comments.

header Parameters
Authorization
required
string
Default: Bearer {access_token}

The access token obtained as a result of successful authentication via "Password" or "Scope". If "Scope Authentication" was used, then this service will be performed for the user on behalf of the business application.

Content-Type
required
string
Default: application/json
Accept
required
string
Default: application/json
x-order
string

When signing order is passed then only selected signing order comments list will be returned.

x-private
string

When set as "true" only private comments list will be returned. In case of "false" only public comments list will be returned.If you do not set the header, then both private and public comments lists will be returned.

Responses

Response samples

Content type
application/json
[
  • {
    }
]

Mark as Read Workflow Comments

Business applications can mark as read comments in the workflow. Use this service API to mark as read comments in workflow. Bearer token should belong to document owner or enterprise admin can use scope variable to get the access token on behalf of document owner to perform this action.

path Parameters
packageId
required
integer <int64>

The package ID in which comments need to be mark as read.

header Parameters
Authorization
required
string
Default: Bearer {access_token}

The access token obtained as a result of successful authentication via "Password" or "Scope". If "Scope Authentication" was used, then this service will be performed for the user on behalf of the business application.

Content-Type
required
string
Default: application/json
Accept
required
string
Default: application/json
x-mark-as-read
string

When set as "true" then comments are maked as read

Responses

Response samples

Content type
application/json
{
  • "Message": "string"
}

Workflow History

APIs for retrieving workflow audit trails, history records, certificates, and evidence reports.

Get Workflow History

Business applications can utilize this service API to retrieve the list of actions performed on a document. The package ID is provided in the resource URL. The search field (x-search-text header) is intended for email, document name, action, infokey, and infovalue.

path Parameters
packageId
required
integer <int64>

The ID of the document for which the log is required.

pageNo
required
integer <int32>
Default: 0

Page number to be retrieved.

recordsPerPage
required
integer <int32>
Default: 0

Total number of records to be retrieved in a page.

header Parameters
Authorization
required
string
Default: Bearer {access_token}

The access token obtained as a result of successful authentication via "Password" or "Scope". If "Scope Authentication" was used, then this service will be performed for the user on behalf of the business application.

Content-Type
required
string
Default: application/json
Accept
required
string
Default: application/json
x-search-text
string
Example: c2FsZXMgY29udHJhY3QgMTA1

The search field (x-search-text header) is intended for email, document name, action, infokey, and infovalue.

x-folder-id
string
Default: 0

Specify the folder ID, for retrieving the folder items, when a shared space folder is involved.

Responses

Response samples

Content type
application/json
{
  • "package_id": 0,
  • "package_name": "string",
  • "package_owner": "string",
  • "owner_name": "string",
  • "package_status": "string",
  • "next_signer": "string",
  • "next_signer_email": [
    ],
  • "documents": [
    ],
  • "actions": [
    ]
}

Get Workflow History Details

Business applications can use this service API to get the details of an action performed in the document. The action is identified by the log_id provided in the resource URL. The package ID is provided in the resource URL.

path Parameters
packageId
required
integer <int64>

The ID of the package for which log is required.

logId
required
integer <int64>

The ID of the log action for which the details are requested.

header Parameters
Authorization
required
string
Default: Bearer {access_token}

The access token obtained as a result of successful authentication via "Password" or "Scope". If "Scope Authentication" was used, then this service will be performed for the user on behalf of the business application.

Content-Type
required
string
Default: application/json
Accept
required
string
Default: application/json
x-base64
string
Default: true

True if response should have images in base64 format. False will only return the resource URLs in response.

x-folder-id
string
Default: 0

Specify the folder ID, for retrieving the folder items, when a shared space folder is involved.

Responses

Response samples

Content type
application/json
{
  • "data": [
    ],
  • "key": "string",
  • "value": "string",
  • "visible": true,
  • "order": 0,
  • "certificate_base64": "string",
  • "certificate_base64_url": "string",
  • "type": "string",
  • "agent": "string"
}

Get Certificate Saved In Workflow History

Business application can get the certificate that was used for to perform an workflow activity. Business application will need to provide the package id, log id and the key by which the certificate is retrieved. This API endpoint will be returned in activity log response. Client application will not need to create the whole URL on its own.

path Parameters
packageId
required
integer <int64>

Id of the package for which the activity log was retrieved.

logId
required
integer <int64>

Id of the activity log record.

encryptKey
required
string

A key attribute that identifies the certificate with this activity. Key is encrypted by application so end user do not need to know the keys. Mostly this API URL will be returned in the activity log response.

header Parameters
Authorization
required
string
Default: Bearer {access_token}

The access token obtained as a result of successful authentication via "Password" or "Scope". If "Scope Authentication" was used, then this service will be performed for the user on behalf of the business application.

Content-Type
required
string
Default: application/json
Accept
required
string
Default: application/json
x-folder-id
string
Default: 0

Specify the folder ID, for retrieving the folder items, when a shared space folder is involved.

Responses

Response samples

Content type
application/json
"string"

Get Process Evidence Report

Business applications can use this service API to download the workflow process evidence report of a document.

path Parameters
packageId
required
integer <int64>

The ID of the document.

header Parameters
Authorization
required
string
Default: Bearer {access_token}

The access token obtained as a result of successful authentication via "Password" or "Scope". If "Scope Authentication" was used, then this service will be performed for the user on behalf of the business application.

Content-Type
required
string
Default: application/json
Accept
required
string
Default: application/json
x-folder-id
string
Default: 0

Specify the folder ID, for retrieving the folder items, when a shared space folder is involved.

Responses

Response samples

Content type
application/json
"string"

Identity Verification

APIs for identity verification flows, status tracking, and verification callbacks.

Create Identity Verification Flow

Business applications can use this service API to create identity verification flow.

path Parameters
packageId
required
integer <int64>
header Parameters
Authorization
required
string
Default: Bearer {access_token}

The access token obtained as a result of successful authentication via "Password" or "Scope". If "Scope Authentication" was used, then this service will be performed for the user on behalf of the business application.

Content-Type
required
string
Default: application/json
Accept
required
string
Default: application/json
x-folder-id
string
Default: 0

Specify the folder ID, for retrieving the folder items, when a shared space folder is involved.

x-identity-verification
string

The identity verification token obtained from Get Identity Verification Flow Status for verification, This value is required when the user has already been authenticated during the opening process and proceeds with additional identity verification (IDV) steps, such as signing or field-level authentication.

Request Body schema:
document_id
integer or null <int64>

Document

field_name
string or null

Field name

Responses

Request samples

Content type
{
  • "document_id": 0,
  • "field_name": "string"
}

Response samples

Content type
application/json
{
  • "transaction_id": "string",
  • "data": {
    }
}

Get Identity Verification Flow Status

Business applications can use this service API to Get Identity Verification Flow Status.

query Parameters
transaction_id
string
header Parameters
Authorization
required
string
Default: Bearer {access_token}

The OAuth access token obtained as a result of successful authentication via the "password" grant type.

Content-Type
required
string
Default: application/json
Accept
required
string
Default: application/json

Responses

Response samples

Content type
application/json
{
  • "status": "string",
  • "token": "string"
}

Identity Verification Callback

Business applications can use this service API to received callback. It is an anonymous call.

header Parameters
Content-Type
required
string
Default: application/json
Accept
required
string
Default: application/json

Responses

Response samples

Content type
application/json
{
  • "Message": "string"
}

Integration

APIs supporting external integrations, encryption/decryption operations, webhooks, and integration utilities.

Integration Decrypt

Business applications can use this service API to generate an encrypted URL to access a document and to perform signing operation on that document. The returned URL in response will be an encrypted URL which contains all the information which was provided in request body.

header Parameters
Authorization
required
string
Default: Bearer {access_token}

The OAuth access token obtained as a result of successful authentication via the "password" grant type.

Content-Type
required
string
Default: application/json
Accept
required
string
Default: application/json
Request Body schema:
auth_token
string or null
package_id
integer <int64>
document_id
integer <int64>
language
string or null
user_email
string or null
q
string or null
usercertificate_id
integer <int64>
collapse_panels
boolean

Responses

Request samples

Content type
{
  • "auth_token": "string",
  • "package_id": 0,
  • "document_id": 0,
  • "language": "string",
  • "user_email": "string",
  • "q": "string",
  • "usercertificate_id": 0,
  • "collapse_panels": true
}

Response samples

Content type
application/json
{
  • "action": "string",
  • "package_id": 0,
  • "return_url": "string",
  • "allowed_domains": "string",
  • "user_email": "string",
  • "token": {
    },
  • "user_status": 0,
  • "return_id": "string",
  • "usercertificate_id": 0,
  • "redirect_callback_url": true,
  • "collapse_panels": true,
  • "lock_panels": true,
  • "usercertificate_name": "string",
  • "language": "string",
  • "section": "string",
  • "enterprise": {
    }
}

Tiny Url Token Decrypt

Business applications can use this service API to decrypt an encrypted URL to access a document and to perform signing operation on that document. The returned URL in response will be an encrypted URL which contains all the information of the document.

header Parameters
Authorization
required
string
Default: Bearer {access_token}

The OAuth access token obtained as a result of successful authentication via the "password" grant type.

Content-Type
required
string
Default: application/json
Accept
required
string
Default: application/json
Request Body schema:
token
string or null

Responses

Request samples

Content type
{
  • "token": "string"
}

Response samples

Content type
application/json
{
  • "url": "string"
}

Decrypt Viewer Link

Business applications can use this service API to decrypt email q

header Parameters
Authorization
required
string
Default: Bearer {access_token}

The OAuth access token obtained as a result of successful authentication via the "password" grant type.

Content-Type
required
string
Default: application/json
Accept
required
string
Default: application/json
Request Body schema:
q
string or null

Responses

Request samples

Content type
{
  • "q": "string"
}

Response samples

Content type
application/json
{
  • "action": "string",
  • "document_id": 0,
  • "user_email": "string",
  • "e_sign": true,
  • "return_url": "string",
  • "token": {
    },
  • "user_status": 0,
  • "document_owner_enterprise_id": 0,
  • "language": "string",
  • "enterprise": {
    }
}

Publish Error to Webhook

header Parameters
Authorization
required
string
Default: Bearer {access_token}

The OAuth access token obtained as a result of successful authentication via the "password" grant type.

Content-Type
required
string
Default: application/json
Accept
required
string
Default: application/json
Request Body schema:
package_ids
Array of integers or null <int64>

Array of document package ids.

error_code
string or null

Error code of GoSign service error.

error_message
string or null

Error message of GoSign service error message.

signing_server
string or null

Signing server url of GoSign service.

Responses

Request samples

Content type
{
  • "package_ids": [
    ],
  • "error_code": "string",
  • "error_message": "string",
  • "signing_server": "string"
}

Response samples

Content type
application/json
{
  • "Message": "string"
}
