SigningHub API Guide

Download OpenAPI specification:Download

Welcome

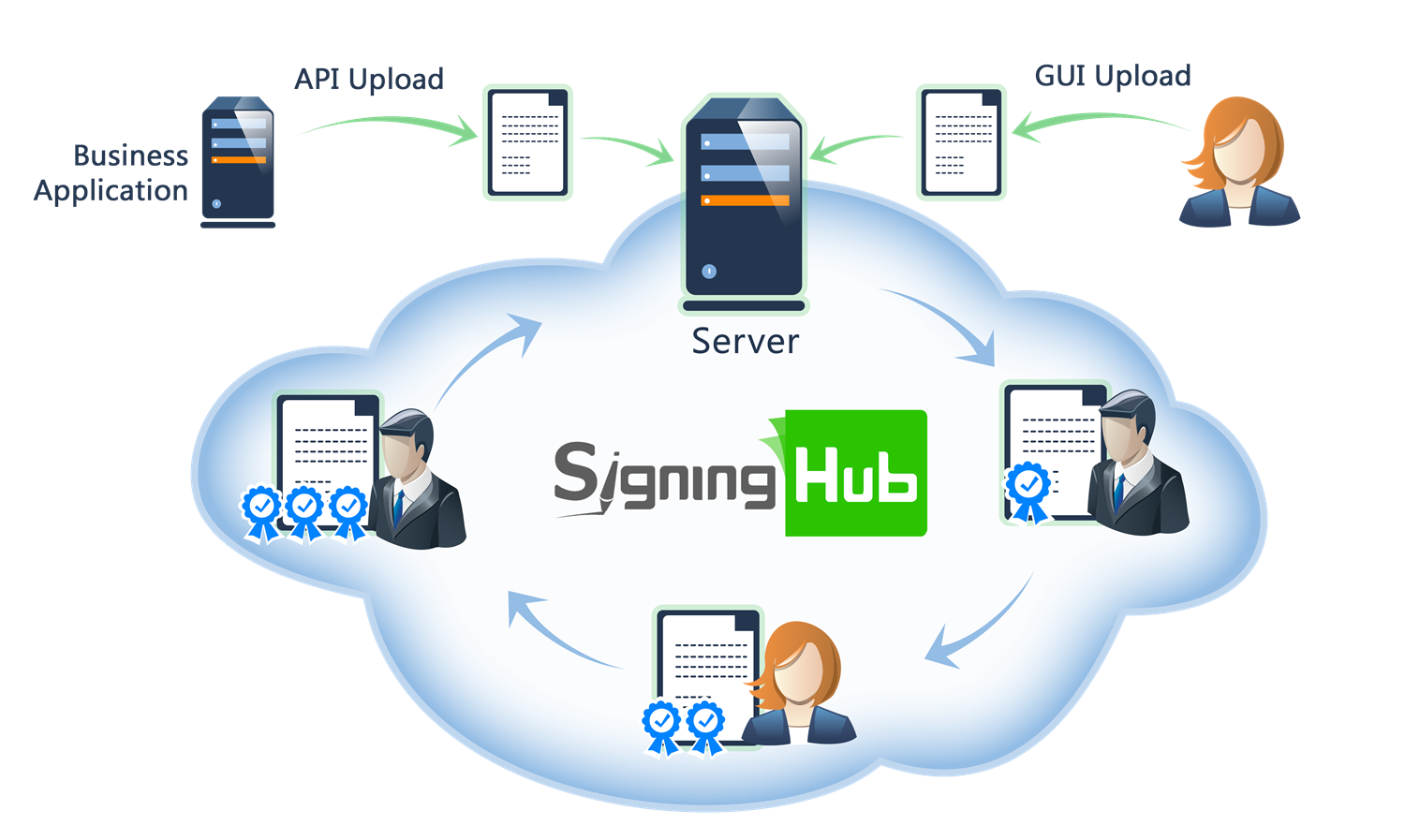

Welcome to SigningHub, a high trust digital signing solution for all your paperless business transactions. It is ideal for those organisations that recognise the value of using cryptographic digital signatures to protect their users and their documents against unauthorised or accidental or fraudulent changes.


Browse through the API content by selecting the relevant pages from the left panel. To quickly find specific web service information, enter search criteria in the search box on top left. .
More about SigningHub
To know more about SigningHub, explore the following links:
  • Go to  SigningHub Knowledge Base to view all the relevant information of SigningHub.
  • Visit the Ascertia Community Portal to find answers to contact SigningHub support staff through the  Live Chat provision .  Our support staff may be occupied with other priority tasks so live chat is offered on an "as available" basis.
Intended Readership
This guide is intended for developers who will integrate SigningHub into their respective web applications using the RESTful web services, and user interface offered by SigningHub. It is assumed that the reader has a basic knowledge of REST, Java, C#, HTML, JavaScript, HTTP and TLS/SSL. There is no Software Developers Kit (SDK) for the integration, instead the integration uses HTML Forms and JSON so that integration is simple from any language including .Net, Java, PHP etc.

Main Tags
Most Popular Pages
➤ Welcome
➤ Prerequisites
➤ Access Tokens
➤ Quick Integration
➤ Updates
➤ SignalR
➤ APIs Developer Guide
➤ Appendix
➤ Authentication
➤ Account Management
➤ Add Package
➤ Upload Document
➤ Get Workflow Details
➤ Sign Document

Document Package

Core APIs for managing document packages including creation, retrieval, updates, lifecycle operations, and package-level actions.

Package Management

APIs for package-level management such as creation, ownership changes, sharing, renaming, deletion, and bulk operations.

Close Document Package

Applications can call this API when a document package is closed by a recipient in the application. This API call will update the document reading status as well as create necessary logs.

path Parameters
packageId
required
integer <int64>

Package ID of the package which contains the document.

header Parameters
Authorization
required
string
Default: Bearer {access_token}

The OAuth access token obtained as a result of successful authentication via the "password" grant type.

Content-Type
required
string
Default: application/json
Accept
required
string
Default: application/json
x-password
string
Default: pincode123

The password set by the document owner for accessing the document, if any. If the password has not been set, then the value shall be null.

x-otp
string
Default: 123456

The One-Time Password (OTP) set by the document owner for accessing the document, if any. If the OTP has not been set, then the value shall be null.

x-folder-id
string
Default: 0

Specify the folder ID, for retrieving the folder items, when a shared space folder is involved.

x-identity-verification
string
Default: 798h-879-k3jk5

The Identity Verification token obtained from Get Identity Verification Flow Status, if applicable. If the policy has not been set, then the value shall be null.

Responses

Response samples

Content type
application/json
{
  • "Message": "string"
}

Add Package

This service API is used to add/create a document package to hold one or more documents. This package can then be used to add documents and recipients in order to start a new workflow.

As previously stated, this call is mandatory if you wish to work with documents. A package must exist before you can upload or add documents to SigningHub..

Even a single document is a part of a package: a package containing one document.

Note: A package can be renamed if required once created.

header Parameters
Authorization
required
string
Default: Bearer {access_token}

The access token obtained as a result of successful authentication via "Password" or "Scope". If "Scope Authentication" was used, then this service will be performed for the user on behalf of the business application.

Content-Type
required
string
Default: application/json
Accept
required
string
Default: application/json
Request Body schema:
package_name
string or null

The name of the package. Default package name is always "Untitled" if the package_name is not provided.

workflow_mode
string (Enumerations.WorkflowMode)
Enum: "ME_AND_OTHERS" "ONLY_OTHERS" "ONLY_ME"
folder_name
string or null

The name of the folder. It will be used to upload package in any folder of the user, either it is a custom folder or a shared folder.

Responses

Request samples

Content type
{
  • "package_name": "string",
  • "workflow_mode": "ME_AND_OTHERS",
  • "folder_name": "string"
}

Response samples

Content type
application/json
{
  • "package_id": 0,
  • "workflow_mode": "string",
  • "workflow_type": "string"
}

Change Document Package Owner

Business applications can use this service API to change the owner of a document package. The new owner must be part of the same Enterprise as the current owner, and must be in an active state.

The document package must be in either In-Progress or Completed state.

The document package ID is supplied in the URL.

Only the current document owner or an Enterprise Admin can use this method.If an Enterprise Admin is using this call then the access token must be obtained using the scope parameter of the current document owner.

path Parameters
packageId
required
integer <int64>

The ID of the document package to change.

header Parameters
Authorization
required
string
Default: Bearer {access_token}

The access token obtained as a result of successful authentication via "Password" or "Scope". If "Scope Authentication" was used, then this service will be performed for the user on behalf of the business application.

Content-Type
required
string
Default: application/json
Accept
required
string
Default: application/json
Request Body schema:
owner
required
string non-empty

Email address of the new owner.

Responses

Request samples

Content type
{
  • "owner": "string"
}

Response samples

Content type
application/json
{
  • "Message": "string"
}

Delete Package

Business applications can use this service API to delete a document from the user inbox. The package ID is provided in the resource URL as "{package_id}". If the document status is PENDING, then it is automatically declined as result of delete operation. If the document status is SHARED, then the document is automatically recalled and workflow is stopped before the document is deleted.

path Parameters
packageId
required
integer <int64>

Package ID of the package which contains the document.

header Parameters
Authorization
required
string
Default: Bearer {access_token}

The access token obtained as a result of successful authentication via "Password" or "Scope". If "Scope Authentication" was used, then this service will be performed for the user on behalf of the business application.

Content-Type
required
string
Default: application/json
Accept
required
string
Default: application/json

Responses

Response samples

Content type
application/json
{
  • "Message": "string"
}

Rename Package

This service API is used to rename a document package.

The document package is identified by its unique identifier in the URL of the call.

path Parameters
packageId
required
integer <int64>

Package ID to change the name of.

header Parameters
Authorization
required
string
Default: Bearer {access_token}

The access token obtained as a result of successful authentication via "Password" or "Scope". If "Scope Authentication" was used, then this service will be performed for the user on behalf of the business application.

Content-Type
required
string
Default: application/json
Accept
required
string
Default: application/json
x-folder-id
string
Default: 0

Specify the folder ID, for retrieving the folder items, when a shared space folder is involved.

Request Body schema:
package_name
required
string non-empty

New name of the document package.

Responses

Request samples

Content type
{
  • "package_name": "string"
}

Response samples

Content type
application/json
{
  • "Message": "string"
}

Bulk Delete Document Package

Business applications can use this service API to delete a documents from the user inbox. If the document status is PENDING, then it is automatically declined as result of delete operation. If the document status is SHARED, then the document is automatically recalled and workflow is stopped before the document is deleted.

The folder ID is provided in the header as x-folder-id for retrieving folder items.

header Parameters
Authorization
required
string
Default: Bearer {access_token}

The OAuth access token obtained as a result of successful authentication via the "password" grant type.

Content-Type
required
string
Default: application/json
Accept
required
string
Default: application/json
x-folder-id
string
Default: 0

Specify the folder ID, for retrieving the folder items, when a shared space folder is involved.

x-source
string
Example: Library

This is the identification of the source of the document from where the document is uploaded, e.g. "My App".

x-search-text
string
Example: c2FsZXMgY29udHJhY3QgMTA1

Search text sent in headers for further filtration of the documents. Package id, name and document owner can be searched.
Furthermore, recommended value for search text parameter is in Base64 encoded format.

x-folder
string
Example: SU5CT1g=

Folder name from where the documents are to be fetched. Possible values are INBOX and ARCHIVE.
Furthermore, recommended value for x-folder parameter is in Base64 encoded format.

Request Body schema:
package_ids
Array of integers or null <int64>

Ids of the document package.

document_status
string (Enumerations.DocumentPackageStatus)
Enum: "ALL" "DRAFT" "INPROGRESS" "PENDING" "SIGNED" "COMPLETED" "REVIEWED" "DECLINED" "EDITED" "EXPIRING_IN_SEVEN_DAYS"
package_name
string or null

The name of the package.

recipient_from
string or null

The sender who shared the document package.

recipient_to
string or null

The recipient to whom the document package is sent.

document_id
integer or null <int64>

Ids of the document.

expiry
integer or null <int32>

Expiry (Days).

modified_from
string or null <date-time>

From Modified Date.

modified_to
string or null <date-time>

To Modified Date

size_from
integer or null <int32>

From Size (KB)

size_to
integer or null <int32>

To Size (KB)

certified_documents
boolean or null

Certified signed documents

form_fields
boolean or null

Documents that have form fields

attachments
boolean or null

Documents that have attachments

document_type
string (Helper.DocumentType)
Enum: "ALL" "PDF" "DOCX" "XML"
document_statuses
Array of strings or null (Helper.AllowedDocumentPackageStatus)
Enum: "DRAFT" "INPROGRESS" "PENDING" "SIGNED" "COMPLETED" "REVIEWED" "DECLINED" "EDITED" "EXPIRING_IN_SEVEN_DAYS"

Document statuses possible values are mentioned above

owned_by
string (Enumerations.DocumentOwnedBy)
Enum: "ME_OTHERS" "ME" "OTHERS"

Responses

Request samples

Content type
{
  • "package_ids": [
    ],
  • "document_status": "ALL",
  • "package_name": "string",
  • "recipient_from": "string",
  • "recipient_to": "string",
  • "document_id": 0,
  • "expiry": 0,
  • "modified_from": "2019-08-24T14:15:22Z",
  • "modified_to": "2019-08-24T14:15:22Z",
  • "size_from": 0,
  • "size_to": 0,
  • "certified_documents": true,
  • "form_fields": true,
  • "attachments": true,
  • "document_type": "ALL",
  • "document_statuses": [
    ],
  • "owned_by": "ME_OTHERS"
}

Response samples

Content type
application/json
[
  • {
    }
]

Open Document Package

Applications can call this API when a document package is opened by a recipient in the application. This API call will update the document reading status as well as create necessary logs.

path Parameters
packageId
required
integer <int64>

Package ID of the package which contains the document.

header Parameters
Authorization
required
string
Default: Bearer {access_token}

The OAuth access token obtained as a result of successful authentication via the "password" grant type.

Content-Type
required
string
Default: application/json
Accept
required
string
Default: application/json
x-password
string
Default: pincode123

The password set by the document owner for accessing the document, if any. If the password has not been set, then the value shall be null.

x-otp
string
Default: 123456

The One-Time Password (OTP) set by the document owner for accessing the document, if any. If the OTP has not been set, then the value shall be null.

x-folder-id
string
Default: 0

Specify the folder ID, for retrieving the folder items, when a shared space folder is involved.

x-identity-verification
string

The Identity Verification token obtained from Get Identity Verification Flow Status, if applicable. If the policy has not been set, then the value shall be null.

Responses

Response samples

Content type
application/json
{
  • "Message": "string"
}

Get Packages

Business applications can use this service API to get a list of documents filtered by different statuses. Users can divide the records into pages by providing a number of records per page.

path Parameters
document_status
required
string (Enumerations.DocumentPackageStatus)
Enum: "ALL" "DRAFT" "INPROGRESS" "PENDING" "SIGNED" "COMPLETED" "REVIEWED" "DECLINED" "EDITED" "EXPIRING_IN_SEVEN_DAYS"

Filter by document status possible values are ALL, DRAFT, PENDING, SIGNED, DECLINED, INPROGRESS, EDITED, REVIEWED, COMPLETED, EXPIRING_IN_SEVEN_DAYS.

pageNo
required
integer <int32>

Page number, according the division of records per page.

recordPerPage
required
integer <int32>

Number of records that are needed to be fetched in one request.

query Parameters
package-name
string

Package Name

package-id
integer <int64>

Package Id

recipient-from
string

From

recipient-to
string

To

document-id
integer <int64>

Document Id

expiry
integer <int32>

Expiry (Days)

modified-from
string <date-time>

From Modified Date

modified-to
string <date-time>

To Modified Date

size-from
integer <int32>

From Size (KB)

size-to
integer <int32>

To Size (KB)

certified-documents
boolean

Only certified signed documents

form-fields
boolean

Only documents that have form fields

attachments
boolean

Only documents that have attachments

document-type
string (Helper.DocumentType)
Enum: "ALL" "PDF" "DOCX" "XML"

Document Type like XML, PDF, DOCX etc

sort-by
string (Enumerations.FolderItemSortBy)
Enum: "TITLE" "WORKFLOW_TYPE" "DATE_CREATED" "LAST_MODIFIED" "OWNER" "LOCATION" "STATUS"

Sort the resultant records as per your choice

asc
boolean
Default: false

Sorted the resultant records by ascending or descending order

document-statuses
Array of strings (Helper.AllowedDocumentPackageStatus)
Items Enum: "DRAFT" "INPROGRESS" "PENDING" "SIGNED" "COMPLETED" "REVIEWED" "DECLINED" "EDITED" "EXPIRING_IN_SEVEN_DAYS"

Document Type

owned-by
string (Enumerations.DocumentOwnedBy)
Enum: "ME_OTHERS" "ME" "OTHERS"
smart-form
string

Smart form name

header Parameters
Authorization
required
string
Default: Bearer {access_token}

The access token obtained as a result of successful authentication via "Password" or "Scope". If "Scope Authentication" was used, then this service will be performed for the user on behalf of the business application.

Content-Type
required
string
Default: application/json
Accept
required
string
Default: application/json
x-folder
string
Example: SU5CT1g=

Folder name from where the documents are to be fetched. Possible values are INBOX and ARCHIVE.
Furthermore, recommended value for x-folder parameter is in Base64 encoded format.

x-search-text
string
Example: c2FsZXMgY29udHJhY3QgMTA1

Search text sent in headers for further filtration of the documents. Package id, name and document owner can be searched.
Furthermore, recommended value for search text parameter is in Base64 encoded format.

x-total-records
string
Example: 10

The total number of records found with the provided search criteria.

x-source
string
Example: Library

This is the identification of the source of the document from where the document is uploaded, e.g. "My App".

x-recipient-details
string
Example: true

If "true" is passed recipient details regarding Document Access Duration will be provided along decline information

Responses

Response samples

Content type
application/json
[
  • {
    }
]

Get Package Details

Business applications can use this service API to get the details of an package. This API can also be used by the business application to perform action on behalf of the enterprise user via "Scope Authentication".

path Parameters
packageId
required
integer <int64>

Package ID of the document package.

header Parameters
Authorization
required
string
Default: Bearer {access_token}

The OAuth access token obtained as a result of successful authentication via the "password" grant type.

Content-Type
required
string
Default: application/json
Accept
required
string
Default: application/json

Responses

Response samples

Content type
application/json
{
  • "name": "string",
  • "owner": {
    },
  • "read_only": true,
  • "document_status": "string",
  • "documents": [
    ]
}

Package Operations

Advanced package operations including export, verification, timeline retrieval, ordering, and workflow-related actions.

Download Package

Business applications can use this service API to download the document package in binary format.

The package ID is provided in the resource URL.

If the package contains only one document, the download is the binary PDF document.

Alternatively, if the package has more than one document, the download is the binary zip file of all documents.

The x-password and x-otp headers are optional. They are required if the document owner set them during the workflow creation phase.

path Parameters
packageId
required
integer <int64>

The package ID to be downloaded.

query Parameters
document-ids
Array of integers <int64> [ items <int64 > ]

The Document IDs parameter is optional. If x-combine-files is set to true, the documents will be merged based on the mentioned documents of the package.

header Parameters
Authorization
required
string
Default: Bearer {access_token}

The access token obtained as a result of successful authentication via "Password" or "Scope". If "Scope Authentication" was used, then this service will be performed for the user on behalf of the business application.

Content-Type
required
string
Default: application/json
Accept
required
string
Default: application/json
x-password
string
Default: pincode123

The password set by the document owner for accessing the document, if any. If the password has not been set, then the value shall be null.

x-otp
string
Default: 123456

The One-Time Password (OTP) set by the document owner for accessing the document, if any. If the OTP has not been set, then the value shall be null.

x-combine-files
string
Default: false

The default value is false, Set to "true" to combine the entire document package into a single PDF file.

x-folder-id
string
Default: 0

Specify the folder ID, for retrieving the folder items, when a shared space folder is involved.

x-identity-verification
string

The Identity Verification token obtained from Get Identity Verification Flow Status, if applicable. If the policy has not been set, then the value shall be null.

Responses

Response samples

Content type
application/json
"string"

Bulk Download Packages

Business applications can use this service API to download the bulk document packages in binary format.

The package ID is provided in the resource URL.

If the package contains only one document, the download is the binary PDF document.

Alternatively, if the package has more than one document, the download is the binary zip file of all documents.

In the response headers, you'll find the x-file-name header, which provides the name of the file. You can determine the file type by inspecting its extension.

query Parameters
ids
Array of integers <int64> [ items <int64 > ]

List of package ids

document-status
string (Enumerations.DocumentPackageStatus)
Enum: "ALL" "DRAFT" "INPROGRESS" "PENDING" "SIGNED" "COMPLETED" "REVIEWED" "DECLINED" "EDITED" "EXPIRING_IN_SEVEN_DAYS"

Filter by document status possible values are mentioned above.

package-name
string

Package Name

recipient-from
string

From

recipient-to
string

To

document-id
integer <int64>

Document Id

expiry
integer <int32>

Expiry (Days)

modified-from
string <date-time>

From Modified Date

modified-to
string <date-time>

To Modified Date

size-from
integer <int32>

From Size (KB)

size-to
integer <int32>

To Size (KB)

certified-documents
boolean

Only certified signed documents

form-fields
boolean

Only documents that have form fields

attachments
boolean

Only documents that have attachments

document-type
string (Helper.DocumentType)
Enum: "ALL" "PDF" "DOCX" "XML"

Filter by document type possible values are mentioned above

document-statuses
Array of strings (Helper.AllowedDocumentPackageStatus)
Items Enum: "DRAFT" "INPROGRESS" "PENDING" "SIGNED" "COMPLETED" "REVIEWED" "DECLINED" "EDITED" "EXPIRING_IN_SEVEN_DAYS"

Filter by document statuses possible values are mentioned above

owned-by
string (Enumerations.DocumentOwnedBy)
Enum: "ME_OTHERS" "ME" "OTHERS"
header Parameters
Authorization
required
string
Default: Bearer {access_token}

The OAuth access token obtained as a result of successful authentication via the "password" grant type.

Content-Type
required
string
Default: application/json
Accept
required
string
Default: application/json
x-folder-id
string
Default: 0

Specify the folder ID, for retrieving the folder items, when a shared space folder is involved.

x-file-name
string
Default: Test file.pdf

It's the name of file with extension. It will be return in response header

x-source
string
Example: Library

This is the identification of the source of the document from where the document is uploaded, e.g. "My App".

x-search-text
string
Example: c2FsZXMgY29udHJhY3QgMTA1

Search text sent in headers for further filtration of the documents. Package id, name and document owner can be searched.
Furthermore, recommended value for search text parameter is in Base64 encoded format.

x-folder
string
Example: SU5CT1g=

Folder name from where the documents are to be fetched. Possible values are INBOX and ARCHIVE.
Furthermore, recommended value for x-folder parameter is in Base64 encoded format.

Responses

Response samples

Content type
application/json
"string"

Download Package (Base64)

Business applications can use this service API to download the document in Base64 encoded byte format.

The package ID is provided in the resource URL.

If the package contains only one document, the download is the Base64 encoded PDF document.

Alternatively, if the package has more than one document, the download is the Base64 encoded zip file of all documents.

The x-password and x-otp headers are optional. They are required if the document owner set them during the workflow creation phase.

path Parameters
packageId
required
integer <int64>

The package ID to be downloaded.

query Parameters
document-ids
Array of integers <int64> [ items <int64 > ]

The Document IDs parameter is optional. If x-combine-files is set to true, the documents will be merged based on the mentioned documents of the package.

header Parameters
Authorization
required
string
Default: Bearer {access_token}

The access token obtained as a result of successful authentication via "Password" or "Scope". If "Scope Authentication" was used, then this service will be performed for the user on behalf of the business application.

Content-Type
required
string
Default: application/json
Accept
required
string
Default: application/json
x-password
string
Default: pincode123

The password set by the document owner for accessing the document, if any. If the password has not been set, then the value shall be null.

x-otp
string
Default: 123456

The One-Time Password (OTP) set by the document owner for accessing the document, if any. If the OTP has not been set, then the value shall be null.

x-combine-files
string
Default: false

The default value is false, Set to "true" to combine the entire document package into a single PDF file.

x-folder-id
string
Default: 0

Specify the folder ID, for retrieving the folder items, when a shared space folder is involved.

x-identity-verification
string

The Identity Verification token obtained from Get Identity Verification Flow Status, if applicable. If the policy has not been set, then the value shall be null.

Responses

Response samples

Content type
application/json
"string"

Get Package Verification

Business applications can use this service API to get verification results for all the digital signature fields of all documents in a single package.

path Parameters
packageId
required
integer <int64>

Package ID of the package to which the document is added.

header Parameters
Authorization
required
string
Default: Bearer {access_token}

The access token obtained as a result of successful authentication via "Password" or "Scope". If "Scope Authentication" was used, then this service will be performed for the user on behalf of the business application.

Content-Type
required
string
Default: application/json
Accept
required
string
Default: application/json
x-base64
required
string
Default: false

True if response should have images in base64 format. False will only return the resource URLs in response.

x-folder-id
string
Default: 0

Specify the folder ID, for retrieving the folder items, when a shared space folder is involved.

Responses

Response samples

Content type
application/json
[
  • {
    }
]

Export Packages

Business applications can use this service API to export list of documents filtered by different statuses. Users can divide the records into pages by providing a number of records per page.

path Parameters
document_status
required
string (Enumerations.DocumentPackageStatus)
Enum: "ALL" "DRAFT" "INPROGRESS" "PENDING" "SIGNED" "COMPLETED" "REVIEWED" "DECLINED" "EDITED" "EXPIRING_IN_SEVEN_DAYS"

Filter by document status possible values are ALL, DRAFT, PENDING, SIGNED, DECLINED, INPROGRESS, EDITED, REVIEWED, COMPLETED, EXPIRING_IN_SEVEN_DAYS.

pageNo
required
integer <int32>

Page number, according the division of records per page.

recordPerPage
required
integer <int32>

Number of records that are needed to be fetched in one request.

query Parameters
package-name
string

Package Name

package-id
integer <int64>

Package Id

recipient-from
string

From

recipient-to
string

To

document-id
integer <int64>

Document Id

expiry
integer <int32>

Expiry (Days)

modified-from
string <date-time>

From Modified Date

modified-to
string <date-time>

To Modified Date

size-from
integer <int32>

From Size (KB)

size-to
integer <int32>

To Size (KB)

certified-documents
boolean

Only certified signed documents

form-fields
boolean

Only documents that have form fields

attachments
boolean

Only documents that have attachments

document-type
string (Helper.DocumentType)
Enum: "ALL" "PDF" "DOCX" "XML"

Document Type like XML, PDF, DOCX etc

sort-by
string (Enumerations.FolderItemSortBy)
Enum: "TITLE" "WORKFLOW_TYPE" "DATE_CREATED" "LAST_MODIFIED" "OWNER" "LOCATION" "STATUS"

Sort the resultant records as per your choice

asc
boolean
Default: false

Sorted the resultant records by ascending or descending order

document-statuses
Array of strings (Helper.AllowedDocumentPackageStatus)
Items Enum: "DRAFT" "INPROGRESS" "PENDING" "SIGNED" "COMPLETED" "REVIEWED" "DECLINED" "EDITED" "EXPIRING_IN_SEVEN_DAYS"

Document Type

owned-by
string (Enumerations.DocumentOwnedBy)
Enum: "ME_OTHERS" "ME" "OTHERS"
ids
Array of integers <int64> [ items <int64 > ]

Selected package Ids

smart-form
string

Smart form name

header Parameters
Authorization
required
string
Default: Bearer {access_token}

The OAuth access token obtained as a result of successful authentication via the "password" grant type.

Content-Type
required
string
Default: application/json
Accept
required
string
Default: application/json
x-folder
string
Example: SU5CT1g=

Folder name from where the documents are to be fetched. Possible values are INBOX and ARCHIVE.
Furthermore, recommended value for x-folder parameter is in Base64 encoded format.

x-search-text
string
Example: c2FsZXMgY29udHJhY3QgMTA1

Search text sent in headers for further filtration of the documents. Package id, name and document owner can be searched.
Furthermore, recommended value for search text parameter is in Base64 encoded format.

x-source
string
Example: Library

This is the identification of the source of the document from where the document is uploaded, e.g. "My App".

Responses

Response samples

Content type
application/json
"string"

Get Package Timeline

Business applications can use this service API to get an package timeline details. However, in the following cases, the API will not return document timeline in response:

  1. If the document is in "Draft" mode.

  2. If the workflow type was set to "Only Me".

  3. If in the workflow the recipient's role is configured as "Send a Copy".

path Parameters
packageId
required
integer <int64>

Package ID of the document package.

header Parameters
Authorization
required
string
Default: Bearer {access_token}

The OAuth access token obtained as a result of successful authentication via the "password" grant type.

Content-Type
required
string
Default: application/json
Accept
required
string
Default: application/json
x-folder-id
string
Default: 0

Specify the folder ID, for retrieving the folder items, when a shared space folder is involved.

Responses

Response samples

Content type
application/json
{
  • "package_name": "string",
  • "process_status": "string",
  • "shared_on": "string",
  • "processed_on": "string",
  • "time_taken": {
    },
  • "timeline_details": [
    ]
}

Export Package Timeline

Business applications can use this service API to export a package timeline details.

path Parameters
packageId
required
integer <int64>

Package ID of the document package.

header Parameters
Authorization
required
string
Default: Bearer {access_token}

The OAuth access token obtained as a result of successful authentication via the "password" grant type.

Content-Type
required
string
Default: application/json
Accept
required
string
Default: application/json
x-folder-id
string
Default: 0

Specify the folder ID, for retrieving the folder items, when a shared space folder is involved.

Responses

Response samples

Content type
application/json
"string"

Documents

APIs for managing individual documents within a package including upload, download, update, delete, merge, and metadata operations.

Update Document Properties

Business applications can use this service API to choose which properties (i.e., Signatures, Attachments, and PDF/A Compliance) they want to retain in a document.

path Parameters
packageId
required
integer <int64>

Package ID of the package to which the document is added

documentId
required
integer <int64>

ID of the document to be updated.

header Parameters
Authorization
required
string
Default: Bearer {access_token}

The access token obtained as a result of successful authentication via "Password" or "Scope". If "Scope Authentication" was used, then this service will be performed for the user on behalf of the business application.

Content-Type
required
string
Default: application/json
Accept
required
string
Default: application/json
Request Body schema:
signed_signature_fields
boolean or null

Keep signed signatures. Default value for this parameter set to true.

attachments
boolean or null

Keep attachments. Default value for this parameter set to true.

conformance_level
boolean or null

Keep conformance level. Default value for this parameter set to true.

Responses

Request samples

Content type
{
  • "signed_signature_fields": true,
  • "attachments": true,
  • "conformance_level": true
}

Response samples

Content type
application/json
{
  • "Message": "string"
}

Delete Document

Business applications can use this service API to delete a document in a package.

path Parameters
packageId
required
integer <int64>

Package ID of the package to which the document is added.

documentId
required
integer <int64>

ID of the document to be deleted.

header Parameters
Authorization
required
string
Default: Bearer {access_token}

The access token obtained as a result of successful authentication via "Password" or "Scope". If "Scope Authentication" was used, then this service will be performed for the user on behalf of the business application.

Content-Type
required
string
Default: application/json
Accept
required
string
Default: application/json

Responses

Response samples

Content type
application/json
{
  • "package_name": "string"
}

Download Document

Business applications can use this service API to download the document bytes. The package ID and document ID is provided in the resource URL.

path Parameters
packageId
required
integer <int64>

Package ID of the package to which the document is added.

documentId
required
integer <int64>

The ID of the document to be downloaded.

header Parameters
Authorization
required
string
Default: Bearer {access_token}

The access token obtained as a result of successful authentication via "Password" or "Scope". If "Scope Authentication" was used, then this service will be performed for the user on behalf of the business application.

Content-Type
required
string
Default: application/json
Accept
required
string
Default: application/json
x-password
string
Default: pincode123

The password set by the document owner for accessing the document, if any. If the password has not been set, then the value shall be null.

x-otp
string
Default: 123456

The One-Time Password (OTP) set by the document owner for accessing the document, if any. If the OTP has not been set, then the value shall be null.

x-folder-id
string
Default: 0

Specify the folder ID, for retrieving the folder items, when a shared space folder is involved.

x-identity-verification
string

The Identity Verification token obtained from Get Identity Verification Flow Status, if applicable. If the policy has not been set, then the value shall be null.

Responses

Response samples

Content type
application/json
"string"

Rename Document

Business applications can use this service API to rename a document in a package.

path Parameters
packageId
required
integer <int64>

Package ID of the package to which the document is added.

documentId
required
integer <int64>

The ID of the document to on which the action is to be performed.

header Parameters
Authorization
required
string
Default: Bearer {access_token}

The access token obtained as a result of successful authentication via "Password" or "Scope". If "Scope Authentication" was used, then this service will be performed for the user on behalf of the business application.

Content-Type
required
string
Default: application/json
Accept
required
string
Default: application/json
Request Body schema:
document_name
required
string non-empty

New name of the document.

Responses

Request samples

Content type
{
  • "document_name": "string"
}

Response samples

Content type
application/json
{
  • "package_name": "string"
}

Upload XML StyleSheet (.XSLT)

Business applications can use this service API to upload an XSLT StyleSheet to transform an XML document into HTML formatted PDF document on SigningHub viewer. This API is support client credential scope too to upload XSLT StyleSheet and it will restrict to upload XSLT StyleSheet if document is signed and target document is not XML

path Parameters
packageId
required
integer <int64>

Package ID of the package to which the XML document is belonged.

documentId
required
integer <int64>

Document ID of the XML document that need to formatted.

header Parameters
Authorization
required
string
Default: Bearer {access_token}

The access token obtained as a result of successful authentication via "Password" or "Scope". If "Scope Authentication" was used, then this service will be performed for the user on behalf of the business application.

Content-Type
required
string
Default: application/octet-stream
Accept
required
string
Default: application/json
x-file-name
string
Default: Test file.pdf

It's the name of file with extension.

Request Body schema: multipart/form-data
file (binary Stream)
required
string <binary>
Default: ""

This is the document in the raw binary format.

Responses

Response samples

Content type
application/json
{
  • "documentId": 0,
  • "document_id": 0,
  • "document_name": "string",
  • "document_order": 0,
  • "document_type": "string",
  • "document_source": "string",
  • "document_width": 0,
  • "document_height": 0,
  • "document_pages": 0,
  • "uploaded_on": "2019-08-24T14:15:22Z",
  • "modified_on": "2019-08-24T14:15:22Z",
  • "lock_form_fields": true,
  • "certify": {
    },
  • "document_size": 0,
  • "metadata": {
    },
  • "package_name": "string",
  • "property1": null,
  • "property2": null
}

Download Document (Base64)

Business applications can use this service API to download the document in base64 string format. The package and document ID is provided in the resource URL.

path Parameters
packageId
required
integer <int64>

Package ID of the package to which the document is added.

documentId
required
integer <int64>

The ID of the document to be downloaded.

header Parameters
Authorization
required
string
Default: Bearer {access_token}

The access token obtained as a result of successful authentication via "Password" or "Scope". If "Scope Authentication" was used, then this service will be performed for the user on behalf of the business application.

Content-Type
required
string
Default: application/json
Accept
required
string
Default: application/json
x-password
string
Default: pincode123

The password set by the document owner for accessing the document, if any. If the password has not been set, then the value shall be null.

x-otp
string
Default: 123456

The One-Time Password (OTP) set by the document owner for accessing the document, if any. If the OTP has not been set, then the value shall be null.

x-folder-id
string
Default: 0

Specify the folder ID, for retrieving the folder items, when a shared space folder is involved.

x-identity-verification
string

The Identity Verification token obtained from Get Identity Verification Flow Status, if applicable. If the policy has not been set, then the value shall be null.

Responses

Response samples

Content type
application/json
"string"

Upload XML StyleSheet (.XSLT) Base64

Business applications can use this service API to upload an XSLT StyleSheet (base64) to transform an XML document into HTML formatted PDF document on SigningHub viewer. This API is support client credential scope too to upload XSLT StyleSheet (base64) and it will restrict to upload XSLT StyleSheet if document is signed and target document is not XML

path Parameters
packageId
required
integer <int64>

Package ID of the package to which the XML document is belonged.

documentId
required
integer <int64>

Document ID of the XML document that need to formatted.

header Parameters
Authorization
required
string
Default: Bearer {access_token}

The access token obtained as a result of successful authentication via "Password" or "Scope". If "Scope Authentication" was used, then this service will be performed for the user on behalf of the business application.

Content-Type
required
string
Default: application/json
Accept
required
string
Default: application/json
x-file-name
string
Default: Test file.pdf

It's the name of file with extension.

x-base64
required
string
Default: true

True mean uploaded document is in base64 format.

Request Body schema:
document
required
string non-empty

Base64 converted string of XML Beautifier file (.XSLT) need to upload

Responses

Request samples

Content type
{
  • "document": "string"
}

Response samples

Content type
application/json
{
  • "documentId": 0,
  • "document_id": 0,
  • "document_name": "string",
  • "document_order": 0,
  • "document_type": "string",
  • "document_source": "string",
  • "document_width": 0,
  • "document_height": 0,
  • "document_pages": 0,
  • "uploaded_on": "2019-08-24T14:15:22Z",
  • "modified_on": "2019-08-24T14:15:22Z",
  • "lock_form_fields": true,
  • "certify": {
    },
  • "document_size": 0,
  • "metadata": {
    },
  • "package_name": "string",
  • "property1": null,
  • "property2": null
}

Upload Document Base64

path Parameters
packageId
required
integer <int64>

Package ID of the package to which the document is being added.

header Parameters
Authorization
required
string
Default: Bearer {access_token}

The access token obtained as a result of successful authentication via "Password" or "Scope". If "Scope Authentication" was used, then this service will be performed for the user on behalf of the business application.

Content-Type
required
string
Default: application/json
Accept
required
string
Default: application/json
x-file-name
string
Default: Test file.pdf

It's the name of file with extension.

x-convert-document
string
Default: true

This identifies whether to convert the document to a PDF or if it should be retained in its original format. Note the only original format supported is currently Word & XML. All other document types will result in an error if this header value is set to "false". If uploading a PDF document this Header can be omitted.

x-source
string
Default: API

This is the identification of the source of the document from where the document is uploaded, e.g. "My App".

x-base64
required
string
Default: true

True mean uploaded document is in base64 format.

Request Body schema:
document
required
string non-empty

Base64 converted string of document need to upload

Responses

Request samples

Content type
{
  • "document": "string"
}

Response samples

Content type
application/json
{
  • "documentId": 0,
  • "document_id": 0,
  • "document_name": "string",
  • "document_order": 0,
  • "document_type": "string",
  • "document_source": "string",
  • "document_width": 0,
  • "document_height": 0,
  • "document_pages": 0,
  • "uploaded_on": "2019-08-24T14:15:22Z",
  • "modified_on": "2019-08-24T14:15:22Z",
  • "lock_form_fields": true,
  • "certify": {
    },
  • "document_size": 0,
  • "metadata": {
    },
  • "package_name": "string",
  • "property1": null,
  • "property2": null
}

Add or Update Document from Library

Business applications can use this service API to add a document from the user’s library to a package. Package ID is provided in the URL, the ID of the document should also be provided as “document_id” in the resource URL to identify the library document to be copied.

Note a package must already exist before you can add a document using this call.

path Parameters
packageId
required
integer <int64>

The Package ID of the package to which the document is being added.

documentId
required
integer <int64>

The library document ID that need to add/updated

header Parameters
Authorization
required
string
Default: Bearer {access_token}

The access token obtained as a result of successful authentication via "Password" or "Scope". If "Scope Authentication" was used, then this service will be performed for the user on behalf of the business application.

Content-Type
required
string
Default: application/json
Accept
required
string
Default: application/json
x-document-id
string
Default: 0

Id of the old document of current package that need to be updated

Responses

Response samples

Content type
application/json
{
  • "document_id": 0,
  • "document_name": "string",
  • "document_size": 0,
  • "document_order": 0,
  • "document_type": "string",
  • "document_source": "string",
  • "document_width": 0,
  • "document_height": 0,
  • "document_pages": 0,
  • "uploaded_on": "2019-08-24T14:15:22Z",
  • "modified_on": "2019-08-24T14:15:22Z",
  • "form_fields": true,
  • "lock_form_fields": true,
  • "certify": {
    },
  • "template": {
    },
  • "package_name": "string",
  • "metadata": {
    }
}

Upload Document

Business applications can use this service API to add a document to a document package linked to an enterprise user’s account. The document information is sent in the HTTP request header and document bytes are sent in the HTTP request body. Note SigningHub will convert supported document formats to PDF if the header "x-convert-document" is set to a value of "true". The only case supported where this value is set to "false" is to retain Word format and XML documents.

SigningHub supports a wide variety of document formats, each of which can be converted to PDF format upon upload. Click here for the full list.

Note PDF documents are not altered upon upload to the system.

Note a package must already exist before you can add a document using this call.

path Parameters
packageId
required
integer <int64>

Package ID of the package to which the document is being added.

header Parameters
Authorization
required
string
Default: Bearer {access_token}

The access token obtained as a result of successful authentication via "Password" or "Scope". If "Scope Authentication" was used, then this service will be performed for the user on behalf of the business application.

Content-Type
required
string
Default: application/octet-stream
Accept
required
string
Default: application/json
x-file-name
string
Default: Test file.pdf

It's the name of file with extension.

x-convert-document
string
Default: true

This identifies whether to convert the document to a PDF or if it should be retained in its original format. Note the only original format supported is currently Word & XML. All other document types will result in an error if this header value is set to "false". If uploading a PDF document this Header can be omitted.

x-source
string
Default: API

This is the identification of the source of the document from where the document is uploaded, e.g. "My App".

Request Body schema: multipart/form-data
file (binary Stream)
required
string <binary>
Default: ""

This is the document in the raw binary format.

Responses

Response samples

Content type
application/json
{
  • "documentId": 0,
  • "document_id": 0,
  • "document_name": "string",
  • "document_order": 0,
  • "document_type": "string",
  • "document_source": "string",
  • "document_width": 0,
  • "document_height": 0,
  • "document_pages": 0,
  • "uploaded_on": "2019-08-24T14:15:22Z",
  • "modified_on": "2019-08-24T14:15:22Z",
  • "lock_form_fields": true,
  • "certify": {
    },
  • "document_size": 0,
  • "metadata": {
    },
  • "package_name": "string",
  • "property1": null,
  • "property2": null
}

Multipart Document Upload

Business applications can use this service API to upload a document in parts to a document package linked to an enterprise user’s account. Client application could divide document in any size. e.g. 1MB chunk.

The document information is sent in the HTTP request header and document bytes are sent in the HTTP request body. Note SigningHub will convert supported document formats to PDF if the header "x-convert-document" is set to a value of "true". The only case supported where this value is set to "false" is to retain Word format and XML documents.

SigningHub supports a wide variety of document formats, each of which can be converted to PDF format upon upload. Click here for the full list.

Note PDF documents are not altered upon upload to the system.

Note a package must already exist before you can add a document using this call.

path Parameters
packageId
required
integer <int64>

Package ID of the package to which the document is being added.

header Parameters
Authorization
required
string
Default: Bearer {access_token}

The OAuth access token obtained as a result of successful authentication via the "password" grant type.

Content-Type
required
string
Default: application/octet-stream
Accept
required
string
Default: application/json
x-file-name
required
string
Example: Test file.pdf

It's the name of file with extension.

x-convert-document
string
Default: true

This identifies whether to convert the document to a PDF or if it should be retained in its original format. Note the only original format supported is currently Word & XML. All other document types will result in an error if this header value is set to "false". If uploading a PDF document this Header can be omitted.

x-source
required
string
Example: FILE_SYSTEM | LIBRARY | SHAREPOINT | SALES_FORCE | DROPBOX | MS_OFFICE | GOOGLE_DRIVE | ONEDRIVE | API

This is the identification of the source of the document from where the document is uploaded, e.g. "My App".

x-file-part-no
required
string
Example: 1

File part number being send to API in request. Started from 1

x-total-parts
required
string
Example: 10

Total number of parts in which file is divided. Minimum value is 1

Request Body schema: application/json
string <application/octet-stream>
Default: ""

This is the document in the raw binary format.

Responses

Request samples

Content type
application/json
""

Response samples

Content type
application/json
{
  • "documentId": 0,
  • "document_id": 0,
  • "document_name": "string",
  • "document_order": 0,
  • "document_type": "string",
  • "document_source": "string",
  • "document_width": 0,
  • "document_height": 0,
  • "document_pages": 0,
  • "uploaded_on": "2019-08-24T14:15:22Z",
  • "modified_on": "2019-08-24T14:15:22Z",
  • "lock_form_fields": true,
  • "certify": {
    },
  • "document_size": 0,
  • "metadata": {
    },
  • "package_name": "string",
  • "property1": null,
  • "property2": null
}

Multipart Document Update

Business applications can use this service API to update a document in parts to a document package. Client application could divide document in any size. e.g. 1MB chunk.

The document information is sent in the HTTP request header and document bytes are sent in the HTTP request body. Note SigningHub will convert supported document formats to PDF if the header "x-convert-document" is set to a value of "true". The only case supported where this value is set to "false" is to retain Word format and XML documents.

SigningHub supports a wide variety of document formats, each of which can be converted to PDF format upon upload. Click here for the full list.

Note PDF documents are not altered upon upload to the system.

path Parameters
packageId
required
integer <int64>

Package ID of the package to which the document is being added.

documentId
required
integer <int64>

Id of the document that need to be updated.

header Parameters
Authorization
required
string
Default: Bearer {access_token}

The OAuth access token obtained as a result of successful authentication via the "password" grant type.

Content-Type
required
string
Default: application/json
Accept
required
string
Default: application/json
x-file-name
required
string
Example: Test file.pdf

It's the name of file with extension.

x-convert-document
string
Default: true

This identifies whether to convert the document to a PDF or if it should be retained in its original format. Note the only original format supported is currently Word & XML. All other document types will result in an error if this header value is set to "false". If uploading a PDF document this Header can be omitted.

x-source
required
string
Example: FILE_SYSTEM | LIBRARY | SHAREPOINT | SALES_FORCE | DROPBOX | MS_OFFICE | GOOGLE_DRIVE | ONEDRIVE | API

This is the identification of the source of the document from where the document is uploaded, e.g. "My App".

x-file-part-no
required
string
Example: 1

File part number being send to API in request. Started from 1

x-total-parts
required
string
Example: 10

Total number of parts in which file is divided. Minimum value is 1

Request Body schema: application/json
string <application/octet-stream>
Default: ""

This is the document in the raw binary format.

Responses

Request samples

Content type
application/json
""

Response samples

Content type
application/json
{
  • "documentId": 0,
  • "document_id": 0,
  • "document_name": "string",
  • "document_order": 0,
  • "document_type": "string",
  • "document_source": "string",
  • "document_width": 0,
  • "document_height": 0,
  • "document_pages": 0,
  • "uploaded_on": "2019-08-24T14:15:22Z",
  • "modified_on": "2019-08-24T14:15:22Z",
  • "lock_form_fields": true,
  • "certify": {
    },
  • "document_size": 0,
  • "metadata": {
    },
  • "package_name": "string",
  • "property1": null,
  • "property2": null
}

Update Document

Business applications can use this service API to update a document of a document package. The document information is sent in the HTTP request header and document bytes are sent in the HTTP request body.

SigningHub supports a wide variety of document formats, each of which can be converted to PDF format upon upload.

Note PDF documents are not altered upon upload to the system.

Note a package must already exist before you can add a document using this call.

Note this feature is supported only for PDF documents.

path Parameters
packageId
required
integer <int64>

Package ID of the package to which the document is belong.

documentId
required
integer <int64>

Id of the document that need to be updated.

header Parameters
Authorization
required
string
Default: Bearer {access_token}

The OAuth access token obtained as a result of successful authentication via the "password" grant type.

Content-Type
required
string
Default: application/octet-stream
Accept
required
string
Default: application/json
x-file-name
string
Default: Test file.pdf

It's the name of file with extension.

x-source
string
Default: API

This is the identification of the source of the document from where the document is uploaded, e.g. "My App".

Request Body schema: multipart/form-data
file (binary Stream)
required
string <binary>
Default: ""

This is the document in the raw binary format.

Responses

Response samples

Content type
application/json
{
  • "documentId": 0,
  • "document_id": 0,
  • "document_name": "string",
  • "document_order": 0,
  • "document_type": "string",
  • "document_source": "string",
  • "document_width": 0,
  • "document_height": 0,
  • "document_pages": 0,
  • "uploaded_on": "2019-08-24T14:15:22Z",
  • "modified_on": "2019-08-24T14:15:22Z",
  • "lock_form_fields": true,
  • "certify": {
    },
  • "document_size": 0,
  • "metadata": {
    },
  • "package_name": "string",
  • "property1": null,
  • "property2": null
}

Get Document Details

Business applications can use this service API to get the document details. The document ID is provided in the URL as “{document_id}”.

path Parameters
packageId
required
integer <int64>

The Package ID of the package to which the document is added.

documentId
required
integer <int64>

The document ID for which the document details are requested.

header Parameters
Authorization
required
string
Default: Bearer {access_token}

The access token obtained as a result of successful authentication via "Password" or "Scope". If "Scope Authentication" was used, then this service will be performed for the user on behalf of the business application.

Content-Type
required
string
Default: application/json
Accept
required
string
Default: application/json
x-password
string
Default: pincode123

The password set by the document owner for accessing the document, if any. If the password has not been set, then the value shall be null.

x-otp
string
Default: 123456

The One-Time Password (OTP) set by the document owner for accessing the document, if any. If the OTP has not been set, then the value shall be null.

x-folder-id
string
Default: 0

Specify the folder ID, for retrieving the folder items, when a shared space folder is involved.

x-identity-verification
string

The Identity Verification token obtained from Get Identity Verification Flow Status, if applicable. If the policy has not been set, then the value shall be null.

Responses

Response samples

Content type
application/json
{
  • "document_id": 0,
  • "document_name": "string",
  • "document_order": 0,
  • "document_type": "string",
  • "document_width": 0,
  • "document_height": 0,
  • "document_source": "string",
  • "document_pages": 0,
  • "form_fields": true,
  • "lock_form_fields": true,
  • "uploaded_on": "string",
  • "modified_on": "string",
  • "certify": {
    },
  • "template": {
    }
}

Get Document Verification

Business applications can use this service API to get verification results for all the digital signature fields of a document in a package.

path Parameters
packageId
required
integer <int64>

Package ID of the package to which the document is added.

documentId
required
integer <int64>

The ID of the document to be downloaded.

header Parameters
Authorization
required
string
Default: Bearer {access_token}

The access token obtained as a result of successful authentication via "Password" or "Scope". If "Scope Authentication" was used, then this service will be performed for the user on behalf of the business application.

Content-Type
required
string
Default: application/json
Accept
required
string
Default: application/json
x-base64
required
string
Default: true

True if response should have images in base64 format. False will only return the resource URLs in response.

x-folder-id
string
Default: 0

Specify the folder ID, for retrieving the folder items, when a shared space folder is involved.

Responses

Response samples

Content type
application/json
[
  • {
    }
]

Unlock Document

Business applications can use this service API to unlock document which is locked while signing.

path Parameters
packageId
required
integer <int64>

The ID of the package for which the password is submitted.

documentId
required
integer <int64>

The document ID for which workflow user needs to be updated.

header Parameters
Authorization
required
string
Default: Bearer {access_token}

The OAuth access token obtained as a result of successful authentication via the "password" grant type.

Content-Type
required
string
Default: application/json
Accept
required
string
Default: application/json

Responses

Response samples

Content type
application/json
{
  • "Message": "string"
}

Change Document Order

Business applications can use this service API to change the order of a document in a package.

path Parameters
packageId
required
integer <int64>

Package ID of the package to which the document is added.

documentId
required
integer <int64>

The ID of the document to on which the action is to be performed.

header Parameters
Authorization
required
string
Default: Bearer {access_token}

The access token obtained as a result of successful authentication via "Password" or "Scope". If "Scope Authentication" was used, then this service will be performed for the user on behalf of the business application.

Content-Type
required
string
Default: application/json
Accept
required
string
Default: application/json
Request Body schema:
order
integer <int32>

New order of the document in the package.

Responses

Request samples

Content type
{
  • "order": 0
}

Response samples

Content type
application/json
{
  • "package_name": "string"
}

Merge All Documents

Business applications can use this service API to merge all documents in a package document.

path Parameters
packageId
required
integer <int64>

Package ID of the target document to which the document belongs.

header Parameters
Authorization
required
string
Default: Bearer {access_token}

The OAuth access token obtained as a result of successful authentication via the "password" grant type.

Content-Type
required
string
Default: application/json
Accept
required
string
Default: application/json
x-folder-id
string
Default: 0

Specify the folder ID, for retrieving the folder items, when a shared space folder is involved.

Responses

Response samples

Content type
application/json
{
  • "document_id": 0,
  • "size": 0
}

Merge Document

Business applications can use this service API to merge document at any location (TOP | BOTTOM) of the target document in a package.

path Parameters
packageId
required
integer <int64>

Package ID of the target document to which the document belongs.

documentId
required
integer <int64>

The ID of the target document which need to be merged with source document.

header Parameters
Authorization
required
string
Default: Bearer {access_token}

The OAuth access token obtained as a result of successful authentication via the "password" grant type.

Content-Type
required
string
Default: application/octet-stream
Accept
required
string
Default: application/json
x-file-name
required
string
Example: Test file.pdf

It's the name of file with extension.

x-password
string
Example: 123

The password set by the document owner for accessing the document, if any. If the password has not been set, then the value shall be null.

x-otp
string
Example: 123

The One-Time Password (OTP) set by the document owner for accessing the document, if any. If the OTP has not been set, then the value shall be null.

x-location
string
Default: BOTTOM

Source document location. Possible values are TOP | BOTTOM

x-remove-signatures
string
Default: false

Specify to retain signatures in source document.Possible values are TRUE | FALSE

x-folder-id
string
Default: 0

Specify the folder ID, for retrieving the folder items, when a shared space folder is involved.

x-identity-verification
string

The Identity Verification token obtained from Get Identity Verification Flow Status, if applicable. If the policy has not been set, then the value shall be null.

Request Body schema: application/json
string <application/octet-stream>
Default: ""

This is the document in the raw binary format.

Responses

Request samples

Content type
application/json
""

Response samples

Content type
application/json
{
  • "Message": "string"
}

Print Document

Business application can use this service API to print a document package using the package ID.

path Parameters
package_id
required
integer <int64>

The package ID of the document package.

header Parameters
Authorization
required
string
Default: Bearer {access_token}

The OAuth access token obtained as a result of successful authentication via the "password" grant type.

Content-Type
required
string
Default: application/json
Accept
required
string
Default: application/json
x-password
string
Default: pincode123

The password set by the document owner for accessing the document, if any. If the password has not been set, then the value shall be null.

x-otp
string
Default: 123456

The One-Time Password (OTP) set by the document owner for accessing the document, if any. If the OTP has not been set, then the value shall be null.

x-folder-id
string
Default: 0

Specify the folder ID, for retrieving the folder items, when a shared space folder is involved.

x-identity-verification
string

The Identity Verification token obtained from Get Identity Verification Flow Status, if applicable. If the policy has not been set, then the value shall be null.

Responses

Response samples

Content type
application/json
[
  • {
    }
]

Unlock Documents

Business applications can use this service API to unlock document which is locked while signing.

header Parameters
Authorization
required
string
Default: Bearer {access_token}

The OAuth access token obtained as a result of successful authentication via the "password" grant type.

Content-Type
required
string
Default: application/json
Accept
required
string
Default: application/json
Request Body schema:

The IDs of the package for which the password is submitted.

Array
integer <int64>

Responses

Request samples

Content type
[
  • 0
]

Response samples

Content type
application/json
{
  • "Message": "string"
}

Document Image

APIs for retrieving document representations such as images and thumbnails in binary and base64 formats.

Get Document Image

Business applications can use this service API to get an image of a particular page as identified by the pageNo. 800x600 can be replaced by any given resolution to match the device displaying resolution.

path Parameters
packageId
required
integer <int64>

Package ID of the package of which the document is part of.

documentId
required
integer <int64>

The ID of the document for which the image is to be requested.

pageNo
required
integer <int32>

Page number in the document for which the image is requested.

widthHeight
required
string

Dimensions are provided in the URL in the form of width x height. This width height can be any value desired by the client application. Width and height are calculated in pixels.

header Parameters
Authorization
required
string
Default: Bearer {access_token}

The access token obtained as a result of successful authentication via "Password" or "Scope". If "Scope Authentication" was used, then this service will be performed for the user on behalf of the business application.

Content-Type
required
string
Default: application/json
Accept
required
string
Default: application/json
x-password
string
Default: pincode123

The password set by the document owner for accessing the document, if any. If the password has not been set, then the value shall be null.

x-otp
string
Default: 123456

The One-Time Password (OTP) set by the document owner for accessing the document, if any. If the OTP has not been set, then the value shall be null.

x-page-width
string
Default: 600

Width of the image returned in response.

x-page-height
string
Default: 800

Height of the image returned in response.

x-formatted
string
Default: TRUE

XML document viewer indication.Possible values are TRUE | FALSE

x-folder-id
string
Default: 0

Specify the folder ID, for retrieving the folder items, when a shared space folder is involved.

x-identity-verification
string
Default: 798h-879-k3jk5

The Identity Verification token obtained from Get Identity Verification Flow Status, if applicable. If the policy has not been set, then the value shall be null.

Responses

Response samples

Content type
application/json
"string"

Get Document Image (Base64)

Business applications can use this service API to get an image of a particular page as identified by the pageNo. 800x600 can be replaced by any given resolution to match the device displaying resolution.

path Parameters
packageId
required
integer <int64>

Package ID of the package to which the document belongs.

documentId
required
integer <int64>

The ID of the document for which the image is to be requested.

pageNo
required
integer <int32>

Page number in the document for which the image is requested.

widthHeight
required
string

Dimensions are provided in the URL in the form of width x height. This width height can be any value desired by the client application. Width and height are calculated in pixels.

header Parameters
Authorization
required
string
Default: Bearer {access_token}

The access token obtained as a result of successful authentication via "Password" or "Scope". If "Scope Authentication" was used, then this service will be performed for the user on behalf of the business application.

Content-Type
required
string
Default: application/json
Accept
required
string
Default: application/json
x-password
string
Default: pincode123

The password set by the document owner for accessing the document, if any. If the password has not been set, then the value shall be null.

x-otp
string
Default: 123456

The One-Time Password (OTP) set by the document owner for accessing the document, if any. If the OTP has not been set, then the value shall be null.

x-page-width
string
Default: 600

Width of the image returned in response.

x-page-height
string
Default: 800

Height of the image returned in response.

x-formatted
string
Default: TRUE

XML document viewer indication.Possible values are TRUE | FALSE

x-folder-id
string
Default: 0

Specify the folder ID, for retrieving the folder items, when a shared space folder is involved.

x-identity-verification
string
Default: 798h-879-k3jk5

The Identity Verification token obtained from Get Identity Verification Flow Status, if applicable. If the policy has not been set, then the value shall be null.

Responses

Response samples

Content type
application/json
"string"

Get Document Thumbnail

Business applications can use this service API to get a thumbnail of a particular page as identified by the pageNo.

path Parameters
packageId
required
integer <int64>

Package ID of the package to which the document belongs.

documentId
required
integer <int64>

The ID of the document for which the thumbnails is to be requested.

pageNo
required
integer <int32>
Default: 1

Page number in the document for which the thumbnails is requested.Its optional, default value is 1

pageWidth
required
integer <int32>
Default: 133

Width of the viewing area of the page. Maximum with can be passed as 512, recommended is 133

header Parameters
Authorization
required
string
Default: Bearer {access_token}

The OAuth access token obtained as a result of successful authentication via the "password" grant type.

Content-Type
required
string
Default: application/json
Accept
required
string
Default: application/json
x-password
string
Default: pincode123

The password set by the document owner for accessing the document, if any. If the password has not been set, then the value shall be null.

x-otp
string
Default: 123456

The One-Time Password (OTP) set by the document owner for accessing the document, if any. If the OTP has not been set, then the value shall be null.

x-page-width
string
Default: 600

Width of the image returned in response.

x-page-height
string
Default: 800

Height of the image returned in response.

x-formatted
string
Default: TRUE

XML document viewer indication.Possible values are TRUE | FALSE

x-folder-id
string
Default: 0

Specify the folder ID, for retrieving the folder items, when a shared space folder is involved.

x-identity-verification
string
Default: 798h-879-k3jk5

The Identity Verification token obtained from Get Identity Verification Flow Status, if applicable. If the policy has not been set, then the value shall be null.

Responses

Response samples

Content type
application/json
"string"

Get Document Thumbnails (Base64)

Business applications can use this service API to get list of thumbnails of a particular pages as identified by the fromPage and toPage.

path Parameters
packageId
required
integer <int64>

Package ID of the package to which the document belongs.

documentId
required
integer <int64>

The ID of the document for which the thumbnails is to be requested.

fromPage
required
integer <int32>

Start page number in the document for which the thumbnails is requested. It must be smaller than toPage value

toPage
required
integer <int32>

End page number in the document for which the thumbnails is requested.

pageWidth
required
integer <int32>

Width of the viewing area of the page. Maximum with can be passed as 512, recommended is 133

header Parameters
Authorization
required
string
Default: Bearer {access_token}

The OAuth access token obtained as a result of successful authentication via the "password" grant type.

Content-Type
required
string
Default: application/json
Accept
required
string
Default: application/json
x-password
string
Default: pincode123

The password set by the document owner for accessing the document, if any. If the password has not been set, then the value shall be null.

x-otp
string
Default: 123456

The One-Time Password (OTP) set by the document owner for accessing the document, if any. If the OTP has not been set, then the value shall be null.

x-formatted
string
Default: TRUE

XML document viewer indication.Possible values are TRUE | FALSE

x-folder-id
string
Default: 0

Specify the folder ID, for retrieving the folder items, when a shared space folder is involved.

x-identity-verification
string
Default: 798h-879-k3jk5

The Identity Verification token obtained from Get Identity Verification Flow Status, if applicable. If the policy has not been set, then the value shall be null.

Responses

Response samples

Content type
application/json
[
  • {
    }
]

Attachments

APIs for uploading, retrieving, downloading, and deleting document attachments in various formats including base64.

Upload Attachment

Business applications can use this service API to upload a attachment in a document.

path Parameters
packageId
required
integer <int64>

Package ID of the package to which the document is added.

documentId
required
integer <int64>

ID of the document to which the attachment needs to be add.

header Parameters
Authorization
required
string
Default: Bearer {access_token}

The OAuth access token obtained as a result of successful authentication via the "password" grant type.

Content-Type
required
string
Default: application/octet-stream
Accept
required
string
Default: application/json
x-field-name
string
Example: U0hfQVRUQUNITUVOVF8xMjg5NDY=

Field name if required. This is optional and with field name attachment field is processed.
Furthermore, recommended value for field name parameter is in Base64 encoded format.

x-file-name
required
string
Example: Test file.pdf

It's the name of file with extension.

x-password
string
Example: pincode123

The password set by the document owner for accessing the document, if any. If the password has not been set, then the value shall be null.

x-otp
string
Example: 123456

The One-Time Password (OTP) set by the document owner for accessing the document, if any. If the OTP has not been set, then the value shall be null.

x-folder-id
string
Default: 0

Specify the folder ID, for retrieving the folder items, when a shared space folder is involved.

x-identity-verification
string

The Identity Verification token obtained from Get Identity Verification Flow Status, if applicable. If the policy has not been set, then the value shall be null.

Request Body schema: multipart/form-data
file (binary Stream)
required
string <binary>
Default: ""

This is the document in the raw binary format.

Responses

Response samples

Content type
application/json
{
  • "attachment_id": 0
}

Get Attachments

Business applications can use this service API to get the attachments of a document.

path Parameters
packageId
required
integer <int64>

Package ID of the package to which the document is added.

documentId
required
integer <int64>

ID of the document to which the attachment is added.

header Parameters
Authorization
required
string
Default: Bearer {access_token}

The OAuth access token obtained as a result of successful authentication via the "password" grant type.

Content-Type
required
string
Default: application/json
Accept
required
string
Default: application/json
x-folder-id
string
Default: 0

Specify the folder ID, for retrieving the folder items, when a shared space folder is involved.

x-identity-verification
string

The Identity Verification token obtained from Get Identity Verification Flow Status, if applicable. If the policy has not been set, then the value shall be null.

Responses

Response samples

Content type
application/json
[
  • {
    }
]

Delete Attachment

Business applications can use this service API to delete the attachment of a document.

path Parameters
packageId
required
integer <int64>

Package ID of the package to which the document is added.

documentId
required
integer <int64>

ID of the document to which the attachment is added.

attachment_id
required
integer <int32>

ID of the attachment.

header Parameters
Authorization
required
string
Default: Bearer {access_token}

The OAuth access token obtained as a result of successful authentication via the "password" grant type.

Content-Type
required
string
Default: application/json
Accept
required
string
Default: application/json
x-folder-id
string
Default: 0

Specify the folder ID, for retrieving the folder items, when a shared space folder is involved.

x-identity-verification
string

The Identity Verification token obtained from Get Identity Verification Flow Status, if applicable. If the policy has not been set, then the value shall be null.

Responses

Response samples

Content type
application/json
{
  • "Message": "string"
}

Download Attachment

Business applications can use this service API to download the attachment of a document.

path Parameters
packageId
required
integer <int64>

Package ID of the package to which the document is added.

documentId
required
integer <int64>

ID of the document to which the attachment is added.

attachment_id
required
integer <int32>

ID of the attachment.

header Parameters
Authorization
required
string
Default: Bearer {access_token}

The OAuth access token obtained as a result of successful authentication via the "password" grant type.

Content-Type
required
string
Default: application/json
Accept
required
string
Default: application/json
x-folder-id
string
Default: 0

Specify the folder ID, for retrieving the folder items, when a shared space folder is involved.

x-identity-verification
string

The Identity Verification token obtained from Get Identity Verification Flow Status, if applicable. If the policy has not been set, then the value shall be null.

Responses

Response samples

Content type
application/json
"string"

Download Attachment (base64)

Business applications can use this service API to download the attachment base64 of a document.

path Parameters
packageId
required
integer <int64>

Package ID of the package to which the document is added.

documentId
required
integer <int64>

ID of the document to which the attachment is added.

attachment_id
required
integer <int32>

ID of the attachment.

header Parameters
Authorization
required
string
Default: Bearer {access_token}

The OAuth access token obtained as a result of successful authentication via the "password" grant type.

Content-Type
required
string
Default: application/json
Accept
required
string
Default: application/json
x-folder-id
string
Default: 0

Specify the folder ID, for retrieving the folder items, when a shared space folder is involved.

x-identity-verification
string

The Identity Verification token obtained from Get Identity Verification Flow Status, if applicable. If the policy has not been set, then the value shall be null.

Responses

Response samples

Content type
application/json
{
  • "base64": "string"
}

Document Policy

APIs for managing document certification policies including retrieval and updates of certification rules.

Get Certify Policy for a Document

Business applications can use this service API to get certify signature settings of a document in a package.

path Parameters
packageId
required
integer <int64>

Package ID of the package to which the document is added.

documentId
required
integer <int64>

The ID of the document to be downloaded.

header Parameters
Authorization
required
string
Default: Bearer {access_token}

The access token obtained as a result of successful authentication via "Password" or "Scope". If "Scope Authentication" was used, then this service will be performed for the user on behalf of the business application.

Content-Type
required
string
Default: application/json
Accept
required
string
Default: application/json

Responses

Response samples

Content type
application/json
{
  • "certify": {
    },
  • "lock_form_fields": true
}

Update Certify Policy for a document

Business applications can use this service API to update certify signature settings for a document in a package.

path Parameters
packageId
required
integer <int64>

Package ID of the package to which the document is added.

documentId
required
integer <int64>

The ID of the document on which the action is to be performed.

header Parameters
Authorization
required
string
Default: Bearer {access_token}

The access token obtained as a result of successful authentication via "Password" or "Scope". If "Scope Authentication" was used, then this service will be performed for the user on behalf of the business application.

Content-Type
required
string
Default: application/json
Accept
required
string
Default: application/json
Request Body schema:
object (Models.CertifyPolicyRequest)

CertifyPolicyRequest

lock_form_fields
boolean

True if form fields are to be locked after the last signature on the current document.

Responses

Request samples

Content type
{
  • "certify": {
    },
  • "lock_form_fields": true
}

Response samples

Content type
application/json
{
  • "Message": "string"
}

Workflow

APIs for initiating and managing workflows associated with document packages and document lifecycle processing.

Start New Workflow From Existing Document Package

path Parameters
packageId
required
integer <int64>

Package id of the existing document package.

header Parameters
Authorization
required
string
Default: Bearer {access_token}

The OAuth access token obtained as a result of successful authentication via the "password" grant type.

Content-Type
required
string
Default: application/json
Accept
required
string
Default: application/json

Responses

Response samples

Content type
application/json
{
  • "package_id": 0,
  • "package_name": "string",
  • "shared_package": true,
  • "package_owner": "string",
  • "owner_name": "string",
  • "package_status": "string",
  • "folder": "string",
  • "folder_id": 0,
  • "gatekeeper": true,
  • "next_signer": "string",
  • "next_signer_email": [
    ],
  • "uploaded_on": "string",
  • "modified_on": "string",
  • "workflow": {
    },
  • "documents": [
    ],
  • "users": [
    ]
}

Apply Workflow Template

Business applications can use this service API to apply a workflow template to a document. The document ID on which template has to be applied is provided in the resource URL. When document ID is set to 0 then template will be applied to to all of the doucments in a pacakge.

While applying the template it is important to remember these two important points:

Point 1 - If the template being applied is created using a PDF which already contained form fields then ensure that the document on which this template is now being applied must contain these form fields in advance and SigningHub will NOT create those form fields via the template rather only apply the form data and assign to the respective users.

Point 2 - If the template being applied is created where form fields are manually added (hence not present in the PDF originally) via SigningHub e.g. signature field, initial, in-person signature, check boxes, radio buttons, text fields etc. then on applying such a template, these form fields will be created on the target document even if these form fields were already present in the document.

path Parameters
packageId
required
integer <int64>

The Package ID of the package to which the template needs to be applied.

documentId
required
integer <int64>

The document ID on which the template needs to be applied. If the value is set to 0, if template is to be applied on all the documents in the package.

header Parameters
Authorization
required
string
Default: Bearer {access_token}

The access token obtained as a result of successful authentication via "Password" or "Scope". If "Scope Authentication" was used, then this service will be performed for the user on behalf of the business application.

Content-Type
required
string
Default: application/json
Accept
required
string
Default: application/json
Request Body schema:
template_name
required
string non-empty

Name of template to be applied on the document.

apply_to_all
required
boolean

True, if template is to be applied on all the documents in the package.

Responses

Request samples

Content type
{
  • "template_name": "string",
  • "apply_to_all": true
}

Response samples

Content type
application/json
{
  • "document_id": 0,
  • "document_name": "string",
  • "document_order": 0,
  • "document_type": "string",
  • "document_width": 0,
  • "document_height": 0,
  • "document_source": "string",
  • "document_pages": 0,
  • "form_fields": true,
  • "lock_form_fields": true,
  • "uploaded_on": "string",
  • "modified_on": "string",
  • "certify": {
    },
  • "template": {
    }
}

Collaboration

APIs supporting collaboration features such as comments, sharing, notifications, and document interaction activities.

On Page Comments

Business applications can use this service API for adding comments onto a documents within workflows

path Parameters
packageId
required
integer <int64>

The package ID of the document package.

documentId
required
integer <int64>

The ID of the document to get the document.

header Parameters
Authorization
required
string
Default: Bearer {access_token}

The OAuth access token obtained as a result of successful authentication via the "password" grant type.

Content-Type
required
string
Default: application/json
Accept
required
string
Default: application/json
x-password
string
Default: pincode123

The password set by the document owner for accessing the document, if any. If the password has not been set, then the value shall be null.

x-otp
string
Default: 123456

The One-Time Password (OTP) set by the document owner for accessing the document, if any. If the OTP has not been set, then the value shall be null.

x-folder-id
string
Default: 0

Specify the folder ID, for retrieving the folder items, when a shared space folder is involved.

x-identity-verification
string

The Identity Verification token obtained from Get Identity Verification Flow Status, if applicable. If the policy has not been set, then the value shall be null.

Request Body schema:
object (Models.Dimensions)

Dimensions

font_size
required
number <float>

The default font Size is 9.55010395010395

page_no
required
integer <int32>

The page Number

required
string non-empty

The Base64 string image

Responses

Request samples

Content type
{
  • "dimensions": {
    },
  • "font_size": 0,
  • "page_no": 0,
  • "image": "string"
}

Response samples

Content type
application/json
{
  • "Message": "string"
}

Send Email on Finish Document

Business applications can use this service API to send email on finish document

path Parameters
packageId
required
integer <int64>

Package ID of the document package.

header Parameters
Authorization
required
string
Default: Bearer {access_token}

The OAuth access token obtained as a result of successful authentication via the "password" grant type.

Content-Type
required
string
Default: application/json
Accept
required
string
Default: application/json
Request Body schema:
required
Array of objects (Models.SendEmailOnFinishDocumentRecipient)

The recipients to whom the email has to be sent.

message
string or null <= 255 characters

Email message

Responses

Request samples

Content type
{
  • "recipients": [
    ],
  • "message": "string"
}

Response samples

Content type
application/json
{
  • "Message": "string"
}

Share Document Package

Business applications can use this service API to share a document package with the signers and start a new workflow. The document should already have been prepared by applying a template and optionally updating the users and actions defined in template. The package ID to be shared is provided in the resource URL.

path Parameters
packageId
required
integer <int64>

The document package to be shared.

header Parameters
Authorization
required
string
Default: Bearer {access_token}

The access token obtained as a result of successful authentication via "Password" or "Scope". If "Scope Authentication" was used, then this service will be performed for the user on behalf of the business application.

Content-Type
required
string
Default: application/json
Accept
required
string
Default: application/json

Responses

Response samples

Content type
application/json
[
  • {
    }
]
