Welcome

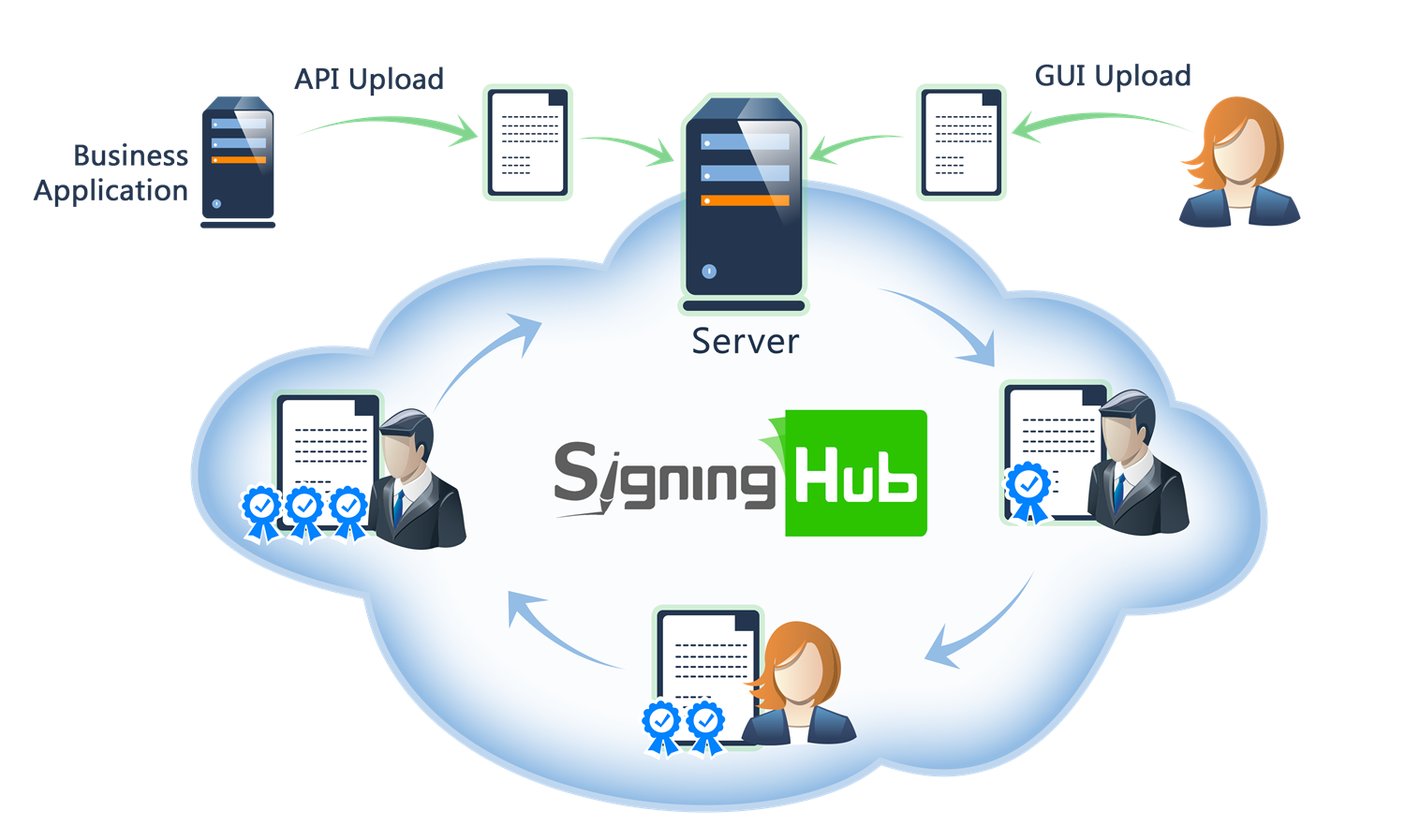

Welcome to SigningHub, a high trust digital signing solution for all your paperless business transactions. It is ideal for those organisations that recognise the value of using cryptographic digital signatures to protect their users and their documents against unauthorised or accidental or fraudulent changes.


Browse through the API content by selecting the relevant pages from the left panel. To quickly find specific web service information, enter search criteria in the search box on top left. .

More about SigningHub
To know more about SigningHub, explore the following links:
  • Go to  SigningHub Knowledge Base to view all the relevant information of SigningHub.
  • Visit the Ascertia Community Portal to find answers to contact SigningHub support staff through the  Live Chat provision Our support staff may be occupied with other priority tasks so live chat is offered on an "as available" basis.
Intended Readership
This guide is intended for developers who will integrate SigningHub into their respective web applications using the RESTful web services, and user interface offered by SigningHub. It is assumed that the reader has a basic knowledge of REST, Java, C#, HTML, JavaScript, HTTP and TLS/SSL. There is no Software Developers Kit (SDK) for the integration, instead the integration uses HTML Forms and JSON so that integration is simple from any language including .Net, Java, PHP etc.

Main Tags
Most Popular Pages
Welcome
Prerequisites
Access Tokens
Quick Integration
Updates
SignalR
APIs Developer Guide
Appendix
Authentication
Account Management
Add Package
Upload Document
Get Workflow Details
Sign Document

Authentication

SigningHub uses OAuth 2.0 to authorize client requests. The parameters required to authenticate a client application and retrieve an OAuth 2.0 access token are "grant type", "Client ID", "Client Secret", "User Name", and "Password". The "Scope" variable can be used when identifying a specific enterprise user or unregistered user (in case of electronic signatures needed from unregistered users in tight integration) as the target for operations.  Note this applies to virtually all calls except those related to digital signature operations.

For such operations, for example in tight integration, the intended recipient credentials must be used as opposed to enterprise admin. The Authenticate API call returns an access token in the response which must be saved by the business client and must be provided with each subsequent API call as a bearer token for authorisation.  Note this token is used in tight integration scenarios for both digital and electronic signatures.

When invoking the refresh token option this will generate both a new access token for use, and refresh token for a subsequent refresh operation.  The refresh token operation means the correct grant type must be used, i.e. refresh_token, and the client_id and client_secret parameters are required.  User name, password and scope are not required.

Second Factor Authentication as OTP

If a user has OTP configured as a second factor authentication, this API will throw an error 403 with a JSON response of error and error_description. It will also send two response headers.
  • x-otp
  • x-mobile-number
x-otp will contain an access_token that will only be used to get an OTP token from OTP Login Authentication call. x-mobile-number contains phone number of the user that is found in the database. If SigningHub don't have a phone number for the user, it will be empty.

If phone number is empty, application should ask for the phone number from the end user to send the OTP on the given number. For sending OTP, use OTP Login Authentication API call.

Once OTP is received, client application will again call the following authenticate API to authenticate the user with two factors, i.e., Password and OTP. To submit the OTP request in the authenticate API a new request header is expected.
  • x-otp

This request header will contain the OTP that was received on the mobile. Server side will authenticate the user based on user email, password and also verify the OTP. Once everything is verified end user will receive the access token details.

Terms & Services

After implementation of GDPR, SigningHub will enforce the end users to agree with new terms and services, every time there is a change in it. Calling authentication API end point will check if the user has provided proper authentication information. Once validated, it will also check if the user has agreed to the latest terms and services or not. If user has already agreed to the terms everything will work in the previous fashion. If new terms and services are found that are not agreed by the user the API will send following response header as false, along with access token details.

  • x-terms-agreed
Business application can check for this header and use the "Get Terms and Services" API end point to show the new terms and conditions to the end user for getting their consent. Once they agree, business application can call the authentication API again with the username, password and request header x-terms-agreed . Request header x-terms-agreed should have a value of true.

Note: Agreement to terms of use is required if this feature is enabled in "system settings" to meet the GDPR requirements.

Enforce Password Reset

If enterprise has set the policy to reset password on first login for newly register users or on password expiration then in that cases this API call won't return the authentication token for users. Instead, 403 with a JSON response of error and error_description would be returned. It will also send a response header.
  • x-change-password
x-change-password will contain a Query parameter that can only be used to set a new password for a user, by calling Set New Password and providing this query parameter as "q" in this  API. Once new password is set by user then  client application will again call the following authenticate API to authenticate the user successfully.


Login

User authentication APIs supporting password, OTP, Kerberos, SSL certificate, and pre-login authentication flows.

Client Credentials Authentication

Authenticate using client_id and client_secret with grant_type = client_credentials and retrieve access_token

header Parameters
Content-Type
required
string
Default: application/x-www-form-urlencoded
Accept
required
string
Default: application/json
x-scim
string
Default: false

Set to True if the generated access token should be SCIM supported

Request Body schema: application/x-www-form-urlencoded
grant_type
required
string
Default: "client_credentials"

Grant type client_credentials is used when operations are performed on behalf of the application.

client_id
required
string
Default: "ACMapAppId"

Application Name that you have configured in your Enterprise Account when configuring the integration options.

client_secret
required
string
Default: "jr67gj0h76gr83nf8734nj59g4he895jh87nr"

API Key that you generated in your Enterprise Account when configuring the integration options.

Responses

Response samples

Content type
application/json
{
  • "access_token": "string",
  • "token_type": "string",
  • "expires_in": 0,
  • "refresh_token": "string"
}

Password Authentication

Authenticate using client_id and client_secret and retrieve an Jwt access_token. Moreover, to perform a token-exchange, an access_token must first be obtained using the system integration key and the enterpriseId of the target enterprise. This access_token represents the authenticated user within the specified enterprise. Once acquired, this access_token is then used as the subject_token in the token-exchange request.

header Parameters
Content-Type
required
string
Default: application/x-www-form-urlencoded
Accept
required
string
Default: application/json
x-session-id
string

x-session-id is a response header that contains the current authenticated user session ID.

Request Body schema: application/x-www-form-urlencoded
grant_type
required
string
Default: "password"

Define the OAuth 2.0 grant type. It can be set to "password", "client_credentials", "refresh_token", "token-exchange" or "active_directory". Note for most operations "password" is sufficient. Active Directory is used when the authentication required is the user's AD credentials. Client_credentials is reserved for internal use at this stage.

client_id
required
string
Default: "ACMEapp"

Application Name that you have configured in your Enterprise Account when configuring the integration options.

client_secret
required
string
Default: "jr67gj0h76gr83nf8734nj59g4he895jh87nr"

API Key that you generated in your Enterprise Account when configuring the integration options.

username
string
Default: "admin@ascertia.com"

SigningHub email address identifying the target user account - this can be an Enterprise Admin or an Enterprise User account. Note an enterprise user can use an API Key created for the enterprise by an enterprise administrator.

password
string
Default: "Password@12"

Password for the account defined in the 'username' parameter.

scope
string
Default: "john@ascertia.com"

Used when the Enterprise Admin user is identified in 'username' and you wish to identify an Enterprise User as the target. That is, set an enterprise user as the current user for operations. For example, to update the general profile settings of an enterprise user then the "scope" variable can be used.
If the business application directly identifies the Enterprise User and their Password for which the operations are required, i.e. in the "username" and "password" parameters, then the Scope parameter is not required.
Note all operations except for digital signature signing can be performed on behalf of an enterprise user or unregistered user using this "scope" variable.

refresh_token
string
Default: "rtfgdsxtrgefds543wedsx"

If access_token is expired, refresh token is used along with grant type refresh_token. If refresh token is provided, username, password and scope attributes can be treated as optional.

enterprise_id
string
Default: ""

Provide an integer enterprise ID (for example, "1") to access that specified enterprise.

subject_token
string
Default: ""

Token exchange to switch enterprise and being used with Ssl authentication

Responses

Response samples

Content type
application/json
{
  • "access_token": "string",
  • "token_type": "string",
  • "expires_in": 0,
  • "refresh_token": "string"
}

Scope Authentication

Business applications can call this API to get the scope access token on behalf of an enterprise user and perform any action other than document signing.

header Parameters
Authorization
required
string
Default: Bearer {access_token}

OAuth access token obtained as a result of "Client Credentials Authentication"

Content-Type
required
string
Default: application/json
Accept
required
string
Default: application/json
Request Body schema:

Scope request model

user_email
required
string <email> non-empty

Scope user email address

Responses

Request samples

Content type
{
  • "user_email": "user@example.com"
}

Response samples

Content type
application/json
{
  • "access_token": "string",
  • "token_type": "string",
  • "expires_in": 0,
  • "refresh_token": "string"
}

Kerberos Authentication

SigningHub uses OAuth 2.0 to authorize client requests. This API endpoint will present a Kerberos authentication challenge if the API is called in a browser that supports Kerberos authentication.

To get the Windows Kerberos dialog for authentication, use "withCredentials" in jQuery AJAX calls.Or on server side language like c# HttpClient object you can use "UseDefaultCredentials" with HTTP(S) requests.

Request Body schema:

Kerbose request model

profile_name
string or null

SSL Authenticate Profile Name

Responses

Request samples

Content type
{
  • "profile_name": "string"
}

Response samples

Content type
application/json
{
  • "subject_token": "string"
}

Single Sign On Authentication

SigningHub uses OAuth 2.0 to authorize client requests. Business application can call this API to get the access token of user by requesting third party, based on provided method and token. Currently supported third parties are Office 365, Azure Active Directory, OAuth2 and OIDC.

header Parameters
Authorization
required
string
Default: Bearer {access_token}

The OAuth access token obtained as a result of successful authentication via the "password" grant type.

Content-Type
required
string
Default: application/json
Accept
required
string
Default: application/json
x-enterprise-id
string
Default: 1

Provide an integer enterprise ID (for example, "1") to access that specified enterprise.

x-session-id
string

x-session-id is a response header that contains the current authenticated user session ID.

Request Body schema:
token
string or null

Token obtained from 3rd party e.g Office 365, Azure Active Directory, OAuth 2, OIDC

code
string or null

Code obtained from OAuth2, OIDC (authorize response), Base64 encoded PassKey assertion response from authenticator

method
required
string non-empty

Supported method type Possible values are "OFFICE_365", "AZURE_ACTIVE_DIRECTORY", "OAUTH2", "OIDC", "PassKey"

profile_name
string or null

Authentication profile name, required for "OAUTH2" and "OIDC". It's an alternative to profile_id, so this can be skipped if profile_id is provided. It's become mandatory for "OFFICE_365" and "AZURE_ACTIVE_DIRECTORY" too if code is provided and token is not provided in the request body.

profile_id
integer <int32>

Authentication profile id, required for "OAUTH2", "OIDC", "PassKey". It's an alternative to profile_name, so this can be skipped if profile_name is provided. It's become mandatory for "OFFICE_365" and "AZURE_ACTIVE_DIRECTORY" too if code is provided and token is not provided in the request body.

redirect_uri
string or null

Redirect URL

code_verifier
string or null

Code Verifier if PKCE is enabled for the client.

nonce
string or null

Nonce value if it is enabled for the client.

Responses

Request samples

Content type
{
  • "token": "string",
  • "code": "string",
  • "method": "string",
  • "profile_name": "string",
  • "profile_id": 0,
  • "redirect_uri": "string",
  • "code_verifier": "string",
  • "nonce": "string"
}

Response samples

Content type
application/json
{
  • "access_token": "string",
  • "token_type": "string",
  • "expires_in": 0,
  • "refresh_token": "string",
  • "authentication_access_token": "string"
}

OTP Login Authentication

SigningHub supports second factor authentication using One Time Password at login time via the web site GUI. Note this is different to OTP via SMS used in electronic signatures at the point of signing. This specifically refers to using the second factor authentication for SigningHub system access.

To enable One Time Password second factor authentication see here.It is an option in the Enterprise Role settings.

At least one SMS provider must be configured in SigningHub administration in order to use this functionality.

This API call is used to allow business applications to request an One Time Password to the user's mobile device for subsequent use in second factor authentication in the GUI.

Note the mobile number is an optional field.If not supplied, SigningHub will attempt to send the OTP to the mobile number stored in the user's Profile settings. If a mobile number is supplied in the call, then the OTP will be sent to this number, and any stored one under Profile settings will be ignored.

In the event that no mobile number is supplied, nor found under the user's Profile settings, an error will be returned.

header Parameters
Authorization
required
string
Default: Bearer {access_token}

The OAuth access token obtained as a result of successful authentication via the "password" grant type.

Content-Type
required
string
Default: application/json
Accept
required
string
Default: application/json
Request Body schema:
mobile_number
string or null

Mobile number of the user in case user do not have a mobile number already in his profile. SigningHub application will update the new phone number in the profile automatically.

method
string or null

Method Possible values are "EMAIL", "SMS"

Responses

Request samples

Content type
{
  • "mobile_number": "string",
  • "method": "string"
}

Response samples

Content type
application/json
{
  • "Message": "string"
}

Pre Login Authentication

Business application can use this API to get the authentication method for the user, based on the configurations set in enterprise role

header Parameters
Authorization
required
string
Default: Bearer {access_token}

OAuth access token obtained as a result of "Client Credentials Authentication"

Content-Type
required
string
Default: application/json
Accept
required
string
Default: application/json
x-enterprise-id
string
Default: 1

Provide an integer enterprise ID (for example, "1") to access that specified enterprise.

Request Body schema:
username
required
string non-empty

Email address of the user for which authentication method is te be retrieved.

Responses

Request samples

Content type
{
  • "username": "string"
}

Response samples

Content type
application/json
{
  • "profile_id": 0,
  • "profile_name": "string",
  • "provider": "string",
  • "method": "string",
  • "app_id": "string",
  • "tenant_id": "string",
  • "private_profiles_count": 0,
  • "logo_url": "string",
  • "url": "string",
  • "logout_url": "string",
  • "scope": "string",
  • "resource": "string",
  • "oidc_advance_settings": {
    },
  • "allow_public_profile": true
}

SSL Authentication

This API retrieves a subject_token from a .pfx certificate and, when accessed via a browser, may prompt the user to select a certificate.

Request Body schema:

SSL request model

profile_name
string or null

SSL Authenticate Profile Name

Responses

Request samples

Content type
{
  • "profile_name": "string"
}

Response samples

Content type
application/json
{
  • "subject_token": "string"
}

Verisec Authentication

Business applications can use this service API to send a VerisecID authentication request notification to a user's mobile device.

header Parameters
Authorization
required
string
Default: Bearer {access_token}

The OAuth access token obtained as a result of successful authentication via the "password" grant type.

Content-Type
required
string
Default: application/json
Accept
required
string
Default: application/json
Request Body schema:
profile_name
required
string non-empty

Verisec Authenticate Profile Name

user_email
required
string non-empty

User Name

Responses

Request samples

Content type
{
  • "profile_name": "string",
  • "user_email": "string"
}

Response samples

Content type
application/json
{
  • "transaction_id": "string"
}

Verisec Authentication Status

Business applications can use this service API to retrieve the subject token for an approved VerisecID authentication request.

Possible authentication statuses:

PENDING: The authentication request has been delivered to the user's mobile device and is awaiting approval or rejection. The API returns HTTP 202 (Accepted).

CANCELED: The user canceled the authentication request from the mobile device.

EXPIRED: The authentication request expired before the user approved or rejected it.

APPROVED: The authentication request was successfully approved, and the subject token is returned in the response.

path Parameters
transaction_id
required
string

The transaction reference returned by the VerisecID authentication request.

header Parameters
Authorization
required
string
Default: Bearer {access_token}

The OAuth access token obtained as a result of successful authentication via the "password" grant type.

Content-Type
required
string
Default: application/json
Accept
required
string
Default: application/json

Responses

Response samples

Content type
application/json
{
  • "status": "string",
  • "subject_token": "string"
}

SAML Authentication

This API can be used to authenticate to SigningHub User using SAML supported IDP.

The profilename is mandatory parameter and required to be passed from caller application.

The callback URL is optional and can be set by the caller application if required.

header Parameters
Authorization
required
string
Default: Bearer {access_token}

The OAuth access token obtained as a result of successful authentication via the "password" grant type.

Content-Type
required
string
Default: application/json
Accept
required
string
Default: application/json
Request Body schema:
profile_name
required
string non-empty

SAML Profile Name

callback_url
string or null

Callback URL to get the response

Responses

Request samples

Content type
{
  • "profile_name": "string",
  • "callback_url": "string"
}

Response samples

Content type
application/json
{
  • "url": "string",
  • "request_body": "string",
  • "type": "string"
}

SAML Authentication Logout

This API can be used to logout SigningHub User using SAML supported IDP.

The profilename is mandatory parameter and required to be passed from caller application.

The callback URL is optional and can be set by the caller application if required.

query Parameters
profile_name
string

SAML Profile Name.

session_index
string

Session Index created at the time of log-in.

email
string

Logged in user email address.

header Parameters
Authorization
required
string
Default: Bearer {access_token}

The OAuth access token obtained as a result of successful authentication via the "password" grant type.

Content-Type
required
string
Default: application/json
Accept
required
string
Default: application/json

Responses

Response samples

Content type
application/json
{
  • "url": "string",
  • "body": "string",
  • "type": "string"
}

Get OIDC Authentication URL

Business application can use this API to get oidc authentication url.

query Parameters
profileId
string
email
string
header Parameters
Authorization
required
string
Default: Bearer {access_token}

OAuth access token obtained as a result of "Client Credentials Authentication"

Content-Type
required
string
Default: application/json
Accept
required
string
Default: application/json

Responses

Response samples

Content type
application/json
"string"

Authentication Profiles

APIs for retrieving available authentication profiles and supported authentication methods.

Get Public Authentication Profiles

Business application can use this API to get all the public authentications configured in the SigningHub.

header Parameters
Authorization
required
string
Default: Bearer {access_token}

OAuth access token obtained as a result of "Client Credentials Authentication"

Content-Type
required
string
Default: application/json
Accept
required
string
Default: application/json

Responses

Response samples

Content type
application/json
[
  • {
    }
]

Session Management

APIs for managing authenticated sessions, device registrations, access tokens, and refresh token lifecycle.

Revoke Refresh Tokens

Business application can call this API to revoke the refresh tokens generated for a user. The refresh token is generated and sent when a successful authentication request is made.

header Parameters
Authorization
required
string
Default: Bearer {access_token}

Users access token

Content-Type
required
string
Default: application/x-www-form-urlencoded
Accept
required
string
Default: application/json
Request Body schema: application/x-www-form-urlencoded
refresh_token
required
string
Default: "45ghiukldjahdnhzdauz"

OAuth refresh access token to revoke.

token_type_hint
required
string
Default: "refresh_token"

Type of token. Currently only refresh_token is supported.

Responses

Response samples

Content type
application/json
{
  • "Message": "string"
}

Logout/Device De-Registration

Applications can call this API when a user logout from the application. This API call will update the user activity.

header Parameters
Authorization
string
Default: Bearer {access_token}

The OAuth access token obtained as a result of successful authentication via the "password" grant type.

Content-Type
required
string
Default: application/json
Accept
required
string
Default: application/json
x-expired
string
Default: false

The values must be "true" | "false" and when no header is provided default value will be false.

x-session-id
string

x-session-id is an optional request header that contains the current authenticated user's session ID. If the Authorization header is provided, the user will be authenticated using the access token. If the Authorization header is not provided, the session ID can be used instead.

Request Body schema:
device_token
string or null

Push notification token that needs to be removed from the server in case of logout.

Responses

Request samples

Content type
{
  • "device_token": "string"
}

Response samples

Content type
application/json
{
  • "Message": "string"
}
