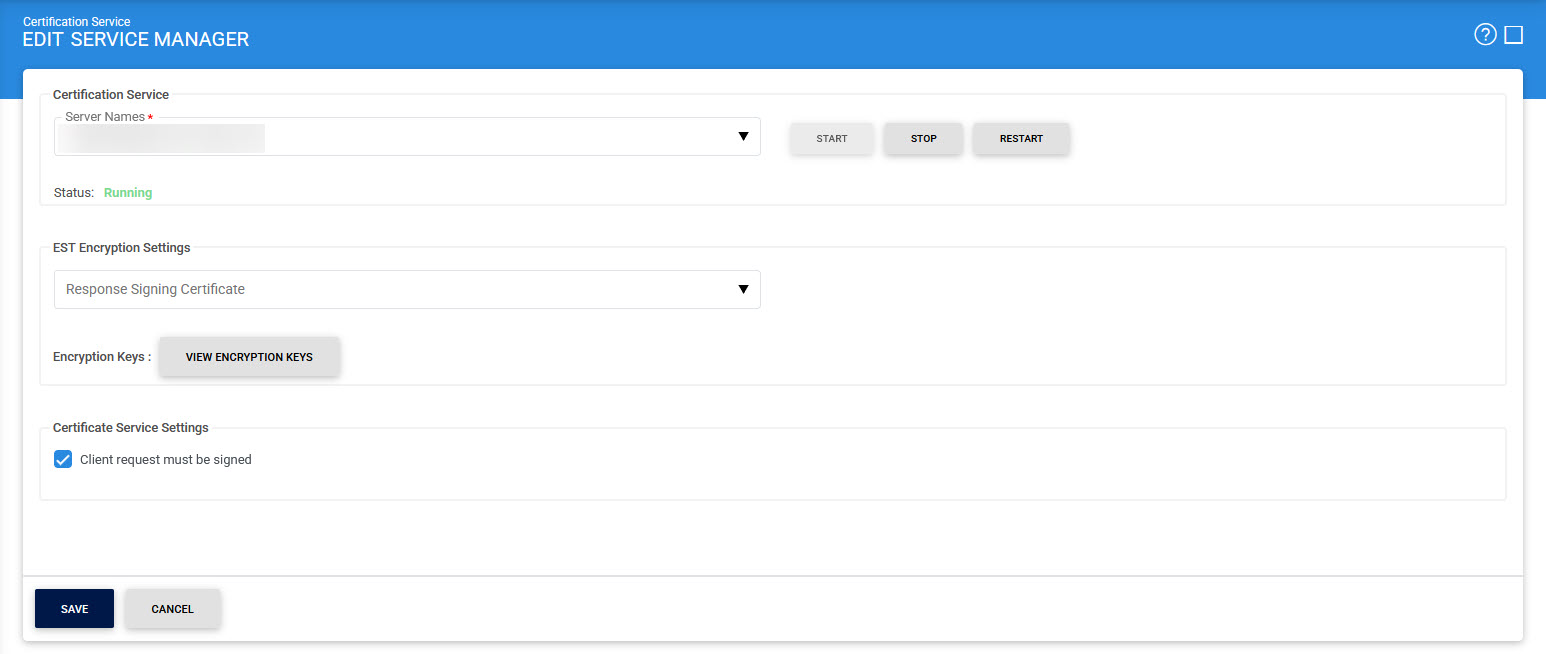

After making configuration changes within the ADSS Certification Service the service must be restarted for the changes to take effect. The certification service manager module allows users to start, stop or restart the certification service and also make changes to service related configurations. Click on the "Service Manager" button and this screen is shown:



The configuration items are as follows:


Items

Description

Server Names

The address of the Certification Service being controlled from this Service Manager. Ensure the address points to the correct service URL, i.e. if you are running the service on multiple machines in a load-balanced configuration then check that the name is correct for the particular instance that needs to be started/stopped/restarted. By default it will be that of the local machine.

Start

Start the service. Status will change to “Running” after a successful start.

Stop

Stop the service. Status will change to “Stopped” after the service is stopped.

Restart

Stop and then start the service in one go, Status will change to “Running” after a successful restart.

EST Encryption Settings:

These settings are enabled if the user wants to return our private key, encrypted in accordance with RFC 7030 mechanism, by using EST Server-Side Key Generation API.

Signing Certificate

A list of certificates created with 'Document Signing' purpose will appear in the drop-down. The selected signing certificate will be used to sign the server generated private key bytes. These signed private key bytes are also known as CMS signed data.


Note: In EST, the CMS signed data are required to transport the server-side generated private key.

Encryption Keys

Clicking on the 'View Encryption Keys' button will show the list of all the encryption keys to be used for encryption purposes. These keys will be used to create digital enveloped data.


Note: In EST, symmetric or asymmetric key required for encryption of server-side generated private key.

Client request messages must be signed

Select this check box to enforce the requirement that service request messages must be signed by the business application.

The service checks the signature on the request message using the client’s certificate (registered within the Client Manager module) in order to authenticate the client application.


EST Encryption Settings

Clicking on 'View Encryption Keys' button in EST Encryption Settings section displays the following screen:



The above screen shows the list of all the encryption keys to be used for encryption purposes. Clicking the three dots in the last column for the selected encrytion key will display View button that will allow you to view the content of the keys. However, the button will be disabled in case of Symmetric keys. See the below screen:





Clicking on Import Key button will display the following screen:



This is virtually the same form as when generating a new key pair, apart from the following differences:

  • There is a browse option to import .aes and .cer extension files.
  • A Key Type (Symmetric or X509Certificate) needs to be assigned along with the Client ID registered in Client Manager for the respective key.


Once the required fields are filled, click on the OK button to import the respective key.


Clicking on the Advance Search button on the main Encryption Keys page will display the following screen:




This helps to locate an encryption key that the Certification Service may have issued. Encryption Keys can be searched based on  Alias, Key Type, Key Length and Client ID. If a search is based on multiple values, then these will be combined together using the “AND” operand, and thus only records that meet all the criteria will be presented.
